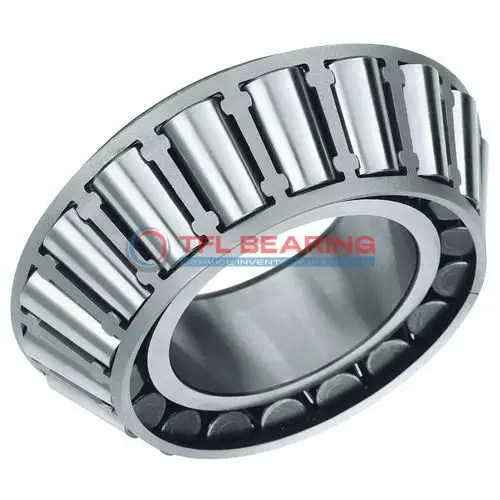

HH228349V Single Cones (Imperial)

HH228349V Single Cones (Imperial)

The HH228349V is a single-row tapered roller bearing cone with a 5-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 242,000 lbf and operates in temperatures from -30°C to 110°C.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The cone width is 3.25 inches, with precise tolerances for smooth operation.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or vehicle axles where combined loads are common.

Compliant with RoHS and REACH standards, it offers a balance of strength and durability. The standard radial clearance can also be adjusted to C3, C4, or C5 if needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH228349V
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number HH228349V-HH228310 , HH228349V-HH228310V , HH228349V-HH228318
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series HH228300
  • Bore Dia 5"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 3.25"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.38"
  • Cone Frontface Backing Diameter 5.83"
  • Cone Backface Backing Diameter 6.46"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.25"
  • Effective Center Location -0.92"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 242000 lbf
  • Static Radial Load 279000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 62900 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 422000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 34600 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 109000 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of HH228349V Bearing

HH228349V Bearing is crafted from chrome steel, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 242,000 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures smooth operation and efficient load distribution.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

HH228349V Bearing’s steel cage maintains roller alignment, reducing wear and extending lifespan.
Standard radial clearance options provide flexibility for different operational needs.

Application

Industrial Uses of HH228349V Bearing
HH228349V Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is HH228349V Bearing Used?
You’ll often find HH228349V Bearing in agricultural machinery, such as tractors and harvesters, where its high dynamic radial load capacity keeps things running smoothly. Its inch sizing makes it a good fit for North American equipment.

Built for Heavy-Duty Use: HH228349V Bearing
HH228349V Bearing excels in industrial gearboxes, thanks to its steel cage and robust design. The open seal type allows for easy lubrication, extending its service life in high-load applications.

Automotive vs Aerospace: Applications of HH228349V Bearing
In automotive applications, HH228349V Bearing supports axles and wheel hubs, while in aerospace, it’s used in landing gear systems. Its temperature range and ABEC-1 rating make it versatile for both fields.

Key Fields for HH228349V Bearing
HH228349V Bearing is ideal for railway applications, particularly in freight car axles, where its static radial load capacity ensures reliability. The standard radial clearance also accommodates varying operational conditions.
