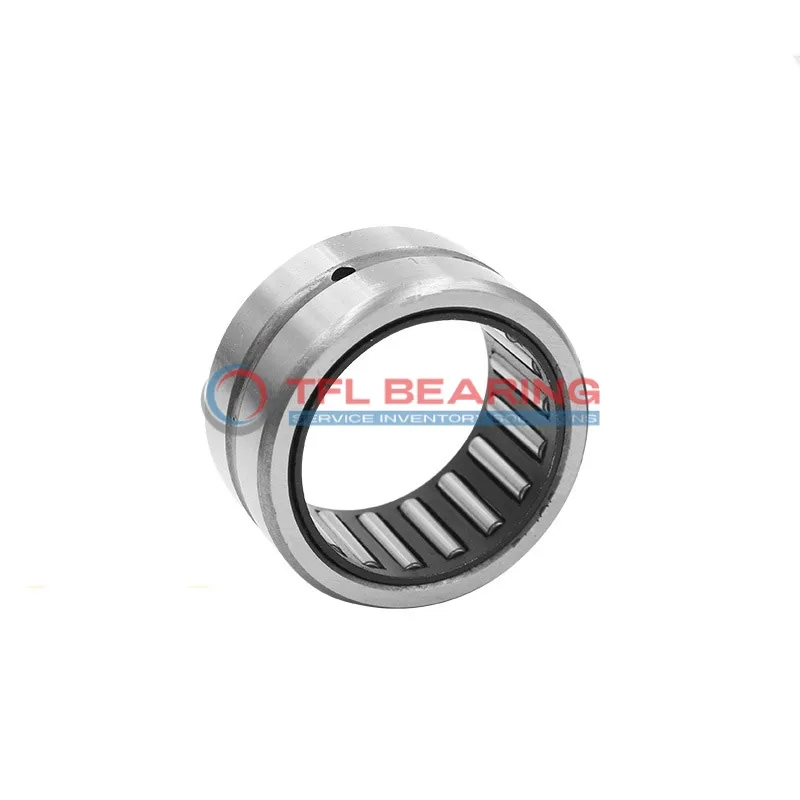

Heavy Duty Needle Roller Bearings (Machined) RNA6915-ZW-XL

Heavy Duty Needle Roller Bearings (Machined) RNA6915-ZW-XL

The RNA6915-ZW-XL is a heavy-duty needle roller bearing with an 85mm bore and 105mm outer diameter, built from sturdy steel for long-lasting performance. It handles radial loads up to 33075 lbf and spins smoothly at speeds up to 5400 RPM.
This double-row design offers excellent load capacity, while the open construction allows for easy lubrication. The press-fit mounting ensures a secure fit on shafts.
Ideal for tough applications like gearboxes or construction equipment, it operates in temperatures from -20°C to 110°C. Weighing 935g, it’s robust yet manageable for its size.
Compliant with RoHS standards, it’s a reliable choice for replacements, interchangeable with INA bearings. Perfect for high-load scenarios where durability is key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RNA6915-ZW-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Inner Ring No
  • Series Without Inner Ring
  • Bore Dia 85 mm
  • Bore Dia Tolerance 0.036mm to 0.058mm
  • Outer Dia 105 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 54 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Steel
  • Cage Material Steel
  • Roller Material Steel
  • Dynamic Radial Load 33075 lbf
  • Static Radial Load 61875 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 5400 rpm
  • Weight 935 g
Heavy Duty Needle Roller Bearings (Machined) RNA6915-ZW-XL dimension drawing
Download DWG Download PDF

Features

How Does RNA6915-ZW-XL Bearing Handle Heavy Loads?
RNA6915-ZW-XL Bearing is built with a double-row needle roller design, offering high radial load capacity up to 33075 lbf.
Its steel construction ensures durability and resistance to wear in demanding industrial applications.
The press-fit shaft mount type provides a secure installation, reducing the risk of slippage under heavy loads.
With a maximum speed of 5400 rpm, it maintains reliable performance in high-speed operations.

Application

Industrial Uses of RNA6915-ZW-XL Bearing
RNA6915-ZW-XL Bearing is commonly used in heavy machinery like construction equipment and agricultural tools, where its double-row design handles high radial loads efficiently. The press-fit mounting ensures a secure connection, reducing the risk of slippage during operation.
In automotive applications, RNA6915-ZW-XL Bearing supports components such as gearboxes and drivetrains, providing reliable performance under demanding conditions. Its steel construction offers durability, making it suitable for long-term use in vehicles.
For automation systems, RNA6915-ZW-XL Bearing’s open design allows for easy lubrication, ensuring smooth operation in robotic arms and conveyor belts. The high-speed capability of up to 5400 rpm makes it a versatile choice for various industrial settings.
Where to Use RNA6915-ZW-XL Bearing
RNA6915-ZW-XL Bearing is ideal for applications requiring robust radial load support, such as printing presses and packaging machines. Its steel rollers and cage provide excellent wear resistance, extending the bearing’s lifespan.
In wind turbines, RNA6915-ZW-XL Bearing’s ability to handle dynamic loads makes it a reliable component for rotor shafts. The metric dimensions ensure compatibility with a wide range of European and Asian machinery designs.
