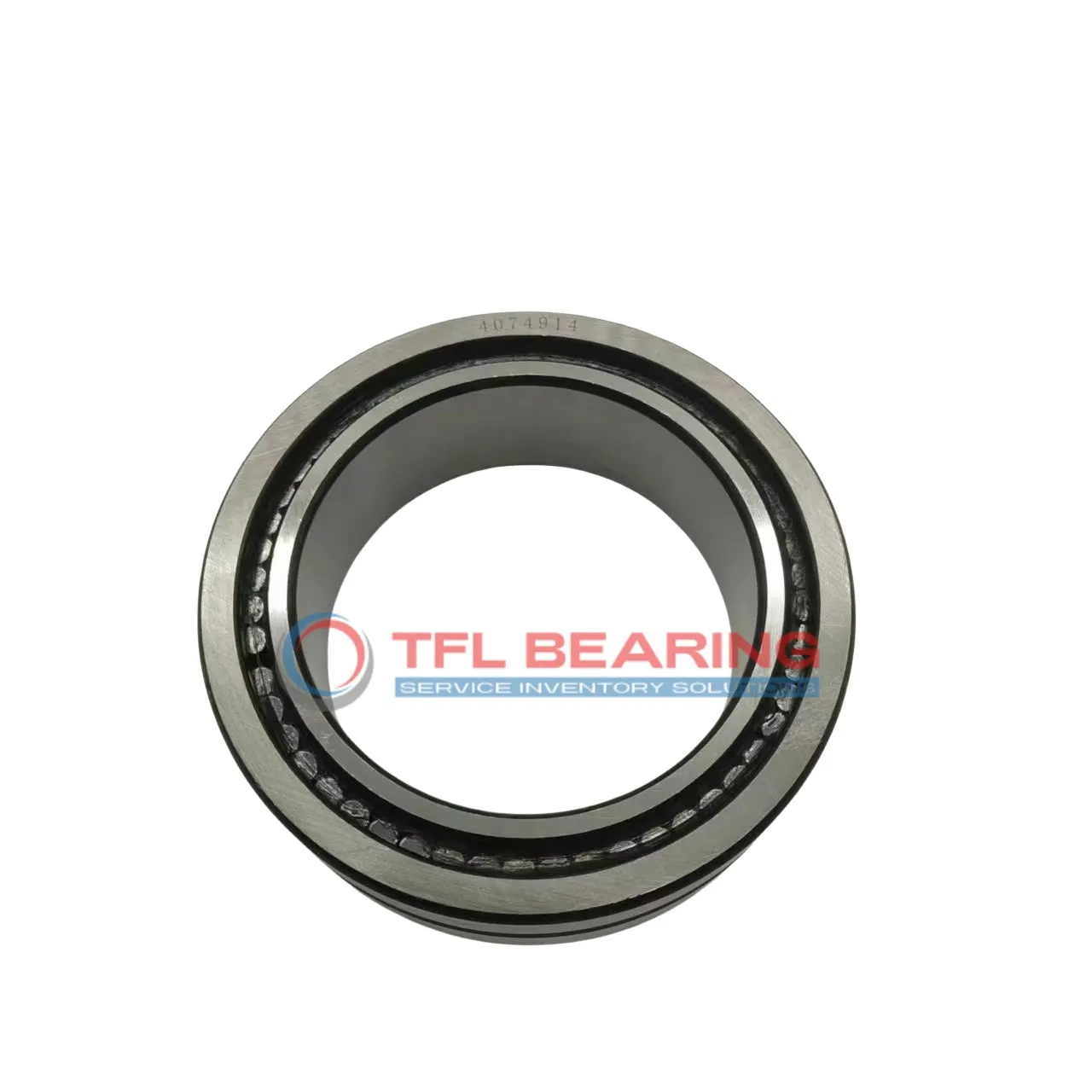

Heavy Duty Needle Roller Bearings (Machined) NKI35/20-TV-XL

Heavy Duty Needle Roller Bearings (Machined) NKI35/20-TV-XL

The NKI35/20-TV-XL is a heavy-duty needle roller bearing with a 35mm bore and 50mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 7538 lbf and spins smoothly at speeds up to 11400 RPM.
Its open design and PA66 cage ensure durability, while the press-fit shaft mount provides a secure installation. The bearing operates well in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or industrial machinery where high radial loads are common.
Weighing just 122g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use. Regular lubrication is recommended for optimal performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NKI35/20-TV-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring Yes
  • Series With Inner Ring
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 50 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Steel
  • Cage Material PA66
  • Roller Material Steel
  • Dynamic Radial Load 7538 lbf
  • Static Radial Load 12600 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 11400 rpm
  • Weight 122 g
Heavy Duty Needle Roller Bearings (Machined) NKI35/20-TV-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of NKI35/20-TV-XL Bearing
NKI35/20-TV-XL Bearing is built with steel rings and rollers, offering robust resistance to heavy radial loads.
Its dynamic radial load capacity reaches 7538 lbf, ensuring reliable performance in demanding applications.
The PA66 cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 11,400 rpm, it delivers a balance of durability and efficiency.
NKI35/20-TV-XL Bearing operates effectively in temperatures from -20° to 110°C, suitable for varied environments.
Its press-fit shaft mount design simplifies installation, saving time and effort.
The open seal type allows for easy lubrication, ensuring smooth and consistent performance.
Weighing just 122 g, it combines strength with a lightweight design for versatile use.

Application

Industrial Uses of NKI35/20-TV-XL Bearing
NKI35/20-TV-XL Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its high radial load capacity is essential. The steel construction ensures durability in demanding environments.
What Makes NKI35/20-TV-XL Bearing a Preferred Choice?
In automotive applications, NKI35/20-TV-XL Bearing fits well in gearboxes and transmission systems, thanks to its compact design and press-fit mounting. The PA66 cage provides smooth operation even at high speeds.
Perfect Fit for Automation: NKI35/20-TV-XL Bearing
For robotic arms and automated systems, NKI35/20-TV-XL Bearing offers reliable performance with its precise tolerances and low maintenance needs. Its open design allows for easy lubrication, extending service life.
Light-Duty vs Heavy-Duty: Best Uses for NKI35/20-TV-XL Bearing
While suitable for light-duty applications like small motors, NKI35/20-TV-XL Bearing truly shines in heavy-duty scenarios like industrial presses. The steel rollers handle significant radial loads without compromising efficiency.
