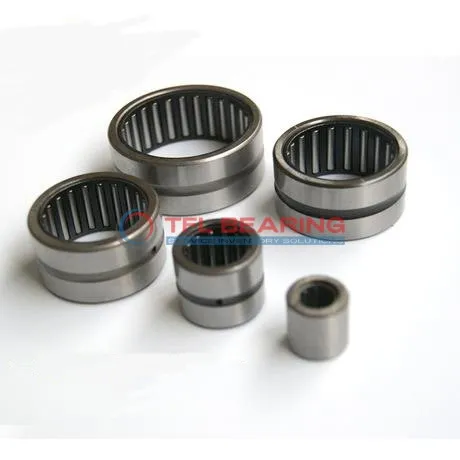

Heavy Duty Needle Roller Bearings (Machined) NK26/16-XL

Heavy Duty Needle Roller Bearings (Machined) NK26/16-XL

The NK26/16-XL is a heavy-duty needle roller bearing with a 26mm bore and 34mm outer diameter, crafted from sturdy steel for long-lasting performance. It handles radial loads up to 3892 lbf and spins smoothly at speeds up to 17200 RPM.
Its open design requires regular lubrication, while the press-fit shaft mount ensures a secure installation. The bearing operates well in temperatures from -20°C to 110°C, making it versatile for various conditions.
This model is interchangeable with INA bearings, offering a reliable replacement option. Ideal for applications like transmissions or industrial equipment where high radial loads are common.
Weighing just 34g, it’s lightweight yet robust. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NK26/16-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring No
  • Series Without Inner Ring
  • Bore Dia 26 mm
  • Bore Dia Tolerance 0.02mm to 0.033mm
  • Outer Dia 34 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Steel
  • Cage Material Steel
  • Roller Material Steel
  • Dynamic Radial Load 3892 lbf
  • Static Radial Load 5310 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 17200 rpm
  • Weight 34 g
Heavy Duty Needle Roller Bearings (Machined) NK26/16-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of NK26/16-XL Bearing
NK26/16-XL Bearing is built with a robust steel construction, ensuring durability under heavy radial loads.
Its dynamic radial load capacity of 3892 lbf makes it suitable for demanding industrial applications.
The press-fit shaft mount design simplifies installation, saving time and effort during assembly.
With a maximum speed of 17,200 rpm, it delivers reliable performance in high-speed operations.
NK26/16-XL Bearing operates efficiently within a temperature range of -20 to 110 °C.
Its open design allows for easy lubrication, ensuring smooth and consistent performance.
The needle roller design provides excellent load distribution, reducing wear and extending service life.
Weighing just 34 grams, it offers a lightweight yet sturdy solution for various machinery needs.

Application

Industrial Uses of NK26/16-XL Bearing
NK26/16-XL Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its high radial load capacity is essential. The press-fit design ensures a secure mount, reducing slippage during operation.
In automotive applications, NK26/16-XL Bearing fits well in gearboxes and transmission systems, providing smooth performance under high speeds. Its steel construction offers durability, making it suitable for long-term use.
For automation systems, NK26/16-XL Bearing supports robotic arms and conveyor belts, where precision and reliability are key. The open seal design allows for easy lubrication, maintaining efficiency in continuous operations.
What Makes NK26/16-XL Bearing a Preferred Choice?
NK26/16-XL Bearing stands out in applications like printing presses and packaging machines due to its compact size and high-speed capability. The steel rollers ensure minimal wear, even under constant use.
In household appliances, such as washing machines and power tools, NK26/16-XL Bearing provides quiet and efficient operation. Its metric dimensions make it compatible with a variety of European-designed devices.
