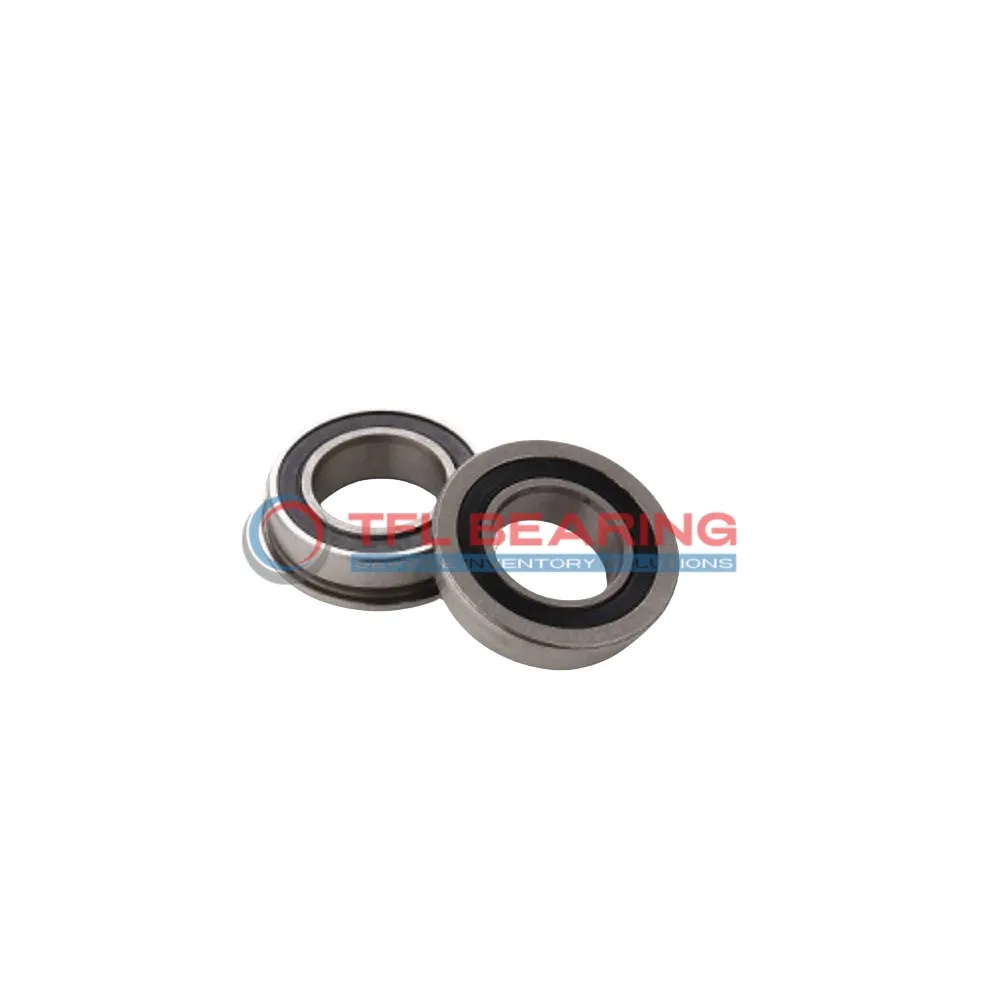

Flanged Deep Groove Ball Bearings WBB1-8706 R-2RS1

Flanged Deep Groove Ball Bearings WBB1-8706 R-2RS1

The WBB1-8706 R-2RS1 is a compact flanged deep groove ball bearing, measuring 6mm by 12mm with a 4mm width. Its stainless steel construction ensures durability and resistance to corrosion.

This sealed bearing handles radial loads up to 91 lbf and spins smoothly at speeds up to 32,000 RPM. The built-in flange provides extra stability, making it easier to install and position.

Grease lubrication keeps it running quietly, even in temperatures from -30°C to 120°C. Weighing just 0.0018kg, it’s ideal for small, precision applications like miniature motors or medical devices.

Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF bearings. Perfect for tight spaces where a secure fit is needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number WBB1-8706 R-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 12 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 13.6 mm
  • Flange Thickness 0.8 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 91 lbf
  • Static Radial Load 33 lbf
  • Max Speed 32000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0018 kg
  • Price（$） 2
Flanged Deep Groove Ball Bearings WBB1-8706 R-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does WBB1-8706 R-2RS1 Bearing Reduce Friction?

WBB1-8706 R-2RS1 Bearing features a sealed design with stainless steel components, ensuring smooth operation and reduced friction.

Its single-row construction and grease lubrication help maintain efficiency, even at high speeds up to 32,000 rpm.

The flanged outer ring provides secure mounting, minimising misalignment and further reducing wear.

With a dynamic radial load capacity of 91 lbf, it delivers reliable performance in compact applications.

Application

Where Is WBB1-8706 R-2RS1 Bearing Used?
WBB1-8706 R-2RS1 Bearing is commonly found in small electric motors, such as those used in cooling fans or household appliances, thanks to its compact size and sealed design. The stainless steel construction ensures it handles everyday wear without fuss.

In automation systems, WBB1-8706 R-2RS1 Bearing fits neatly into robotic arms or miniature conveyors, providing smooth radial load support. Its flange adds stability, preventing misalignment in tight spaces.

For medical devices like handheld diagnostic tools, WBB1-8706 R-2RS1 Bearing offers reliable performance with minimal maintenance. The grease lubrication keeps it running quietly, which is ideal for sensitive environments.

You might also spot WBB1-8706 R-2RS1 Bearing in precision instruments like 3D printers, where its low friction and consistent rotation matter. The metric sizing makes it easy to replace in most European-designed equipment.
