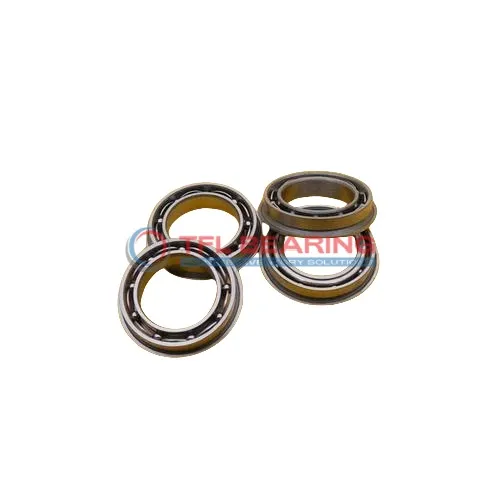

Flanged Deep Groove Ball Bearings W 606 R

Flanged Deep Groove Ball Bearings W 606 R

The W 606 R is a compact flanged deep groove ball bearing, measuring 6mm by 17mm with a 6mm width. Its stainless steel construction ensures durability and resistance to corrosion.

This bearing handles radial loads up to 438 lbf and can spin at speeds up to 60,000 RPM, making it suitable for high-speed applications. The open design allows for easy lubrication and maintenance.

The flange adds stability, helping the bearing stay securely in place during operation. It works well in temperatures ranging from -30°C to 120°C.

Ideal for small machinery or appliances where space is limited, this lightweight bearing weighs just 0.0059kg. It’s interchangeable with SKF models and complies with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 606 R
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 17 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 19 mm
  • Flange Thickness 1.2 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 438 lbf
  • Static Radial Load 187 lbf
  • Max Speed 60000 rpm
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0059 kg
  • Price（$） 2
Flanged Deep Groove Ball Bearings W 606 R dimension drawing
Download DWG Download PDF

Features

Why Choose W 606 R Bearing for Precision Tasks?

W 606 R Bearing is crafted with stainless steel rings and balls, offering excellent resistance to corrosion and wear.
Its compact size (6 mm×19 mm×6 mm) makes it ideal for applications where space is limited.

The open design allows for easy lubrication, ensuring smooth operation even at high speeds up to 60,000 rpm.
With a dynamic radial load capacity of 438 lbf, it handles demanding radial loads reliably.

W 606 R Bearing’s flanged outer dia (19 mm) provides secure mounting, reducing misalignment risks.
Its P0 tolerance class ensures consistent performance in precision tasks.

Application

Industrial Uses of W 606 R Bearing
W 606 R Bearing is commonly used in small industrial motors and pumps, where its compact size and stainless steel construction offer reliable performance. The flanged design helps with easy mounting and alignment in tight spaces.

Where Is W 606 R Bearing Used?
You’ll often find W 606 R Bearing in automotive applications like electric window mechanisms or small gearboxes, thanks to its radial load capacity. Its high-speed capability makes it suitable for precision components.

Perfect Fit for Automation: W 606 R Bearing
In robotics and automation, W 606 R Bearing works well in joint assemblies and small actuators due to its lightweight design. The open seal type allows for custom lubrication if needed.

Medical vs Industrial: Where W 606 R Bearing Excels
W 606 R Bearing is versatile enough for medical devices like dental tools, where hygiene matters, and industrial equipment like conveyor guides. Its stainless steel materials resist corrosion in both environments.

Consumer Electronics and W 606 R Bearing
For household gadgets like cooling fans or small appliances, W 606 R Bearing provides quiet operation and longevity. The metric sizing ensures compatibility with various compact designs.
