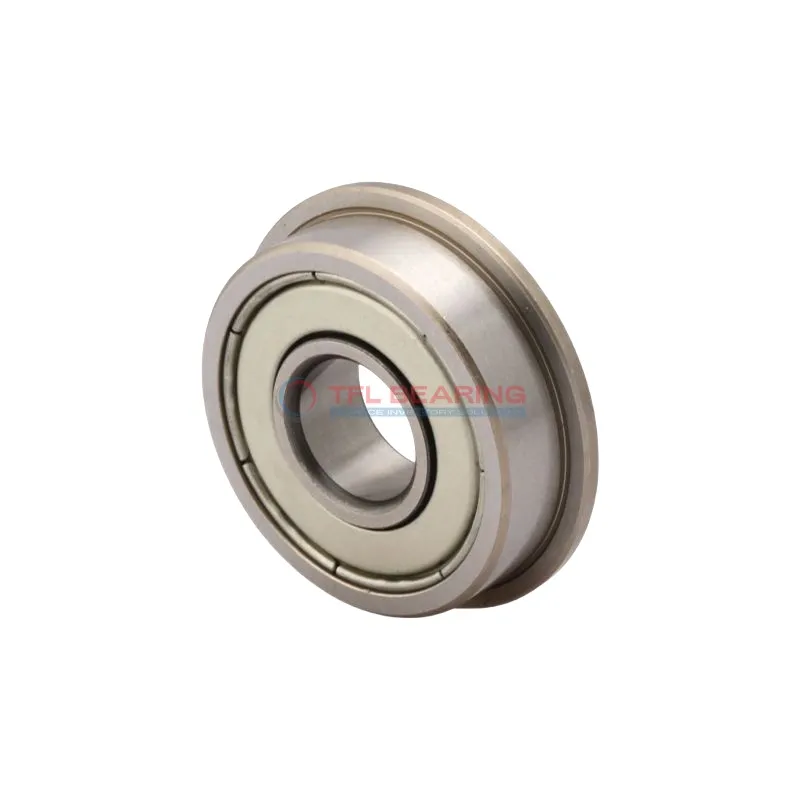

Flanged Deep Groove Ball Bearings W 606 R-2Z

Flanged Deep Groove Ball Bearings W 606 R-2Z

The W 606 R-2Z is a compact flanged deep groove ball bearing, measuring 6mm by 17mm with a 6mm width. Made entirely from stainless steel, it offers good corrosion resistance and durability.

This shielded bearing handles radial loads up to 438 lbf and can spin at speeds up to 48,000 RPM. Its flange design helps keep the bearing securely in place during operation.

The stainless steel construction works well in temperatures from -30°C to 120°C. Pre-greased for easy use, it’s maintenance-free for most applications.

Ideal for small machinery or appliances where space is limited. Weighing just 6.5 grams, it’s lightweight yet sturdy. Complies with RoHS and REACH standards.

Interchangeable with SKF bearings, making replacements straightforward. A reliable choice for radial load applications needing a secure fit.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 606 R-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 17 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 19 mm
  • Flange Thickness 1.2 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 438 lbf
  • Static Radial Load 187 lbf
  • Max Speed 48000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0065 kg
  • Price（$） 2
Flanged Deep Groove Ball Bearings W 606 R-2Z dimension drawing
Download DWG Download PDF

Features

How Does W 606 R-2Z Bearing Reduce Friction?

W 606 R-2Z Bearing features stainless steel rings and balls, which help minimise friction during operation.

Its shielded design keeps contaminants out, ensuring smooth performance even in dusty environments.

With a maximum speed of 48,000 rpm, it offers efficient and reliable performance for various applications.

The grease lubrication further reduces friction, extending the bearing’s service life.

Application

Common Applications of W 606 R-2Z Bearing
W 606 R-2Z Bearing is widely used in small electric motors, such as those found in household appliances like fans and blenders. Its shielded design helps keep out dust and debris, ensuring smooth operation over time.

In automation systems, W 606 R-2Z Bearing fits neatly into compact spaces, making it ideal for robotic arms and precision machinery. The stainless steel construction also resists corrosion in humid environments.

For consumer electronics, W 606 R-2Z Bearing provides reliable performance in devices like printers and scanners. Its small size and lightweight design make it a practical choice for space-constrained applications.

The flange on W 606 R-2Z Bearing adds stability in high-speed scenarios, such as dental tools or small power drills. This feature helps maintain alignment under radial loads.
