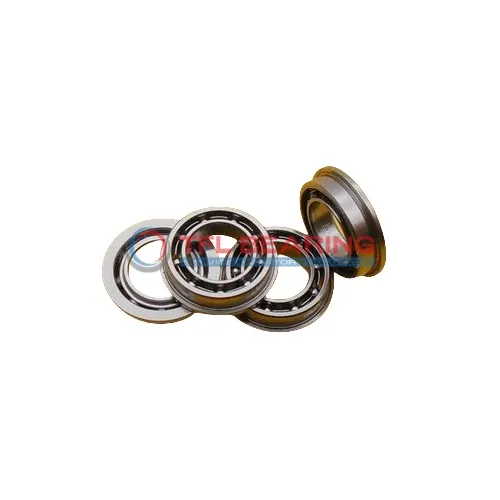

Flanged Deep Groove Ball Bearings W 602 R

Flanged Deep Groove Ball Bearings W 602 R

The W 602 R is a compact flanged deep groove ball bearing, measuring just 2mm by 7mm with a width of 2.8mm. Made entirely from stainless steel, it offers good corrosion resistance and durability.

It handles radial loads up to 50 lbf and can spin at speeds up to 100,000 RPM, making it suitable for high-speed applications. The open design allows for easy lubrication when needed.

The flange provides secure mounting, helping the bearing stay in place during operation. Its small size and lightweight (only 0.0008g) make it ideal for precision instruments.

This bearing works in temperatures from -30°C to 120°C and is interchangeable with SKF models. Perfect for small electric motors or delicate mechanical devices where space is limited.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 602 R
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 2 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 7 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 2.8 mm
  • Width Tolerance -0.04mm to 0
  • Flange Outer Dia 8.5 mm
  • Flange Thickness 0.7 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 50 lbf
  • Static Radial Load 15 lbf
  • Max Speed 100000 rpm
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0008 kg
  • Price（$） 1.4
Flanged Deep Groove Ball Bearings W 602 R dimension drawing
Download DWG Download PDF

Features

Why Choose W 602 R Bearing for Precision Tasks?

W 602 R Bearing is crafted with stainless steel rings and balls, offering excellent resistance to wear and corrosion.
Its compact size of 2 mm×8.5 mm×2.8 mm makes it ideal for precision applications where space is limited.
The open design allows for easy lubrication, ensuring smooth operation at high speeds up to 100,000 rpm.
With a dynamic radial load capacity of 50 lbf, it delivers reliable performance in demanding conditions.

Application

Common Applications of W 602 R Bearing
W 602 R Bearing is widely used in small electric motors, such as those found in cooling fans or miniature appliances, where its compact size and radial load capacity are ideal. The stainless steel construction ensures longevity even in damp environments.

How Does W 602 R Bearing Improve Performance?
In precision instruments like optical devices or small gauges, W 602 R Bearing reduces friction for smoother operation. Its open design allows for easy cleaning, which is handy in dusty workshops or labs.

Built for Heavy-Duty Use: W 602 R Bearing
Despite its tiny dimensions, W 602 R Bearing handles high-speed rotations up to 100,000 rpm, making it suitable for dental drills or model-making tools. The flange adds stability during rapid movements.

Automotive vs Aerospace: Applications of W 602 R Bearing
In automotive dashboards, W 602 R Bearing supports small actuators, while in drones, its lightweight design aids in efficient propeller movement. The metric sizing ensures compatibility across industries.

Perfect Fit for Automation: W 602 R Bearing
W 602 R Bearing is a go-to for robotic arm joints in assembly lines, where its low friction and durability matter. The stainless steel balls resist wear even with constant directional changes.
