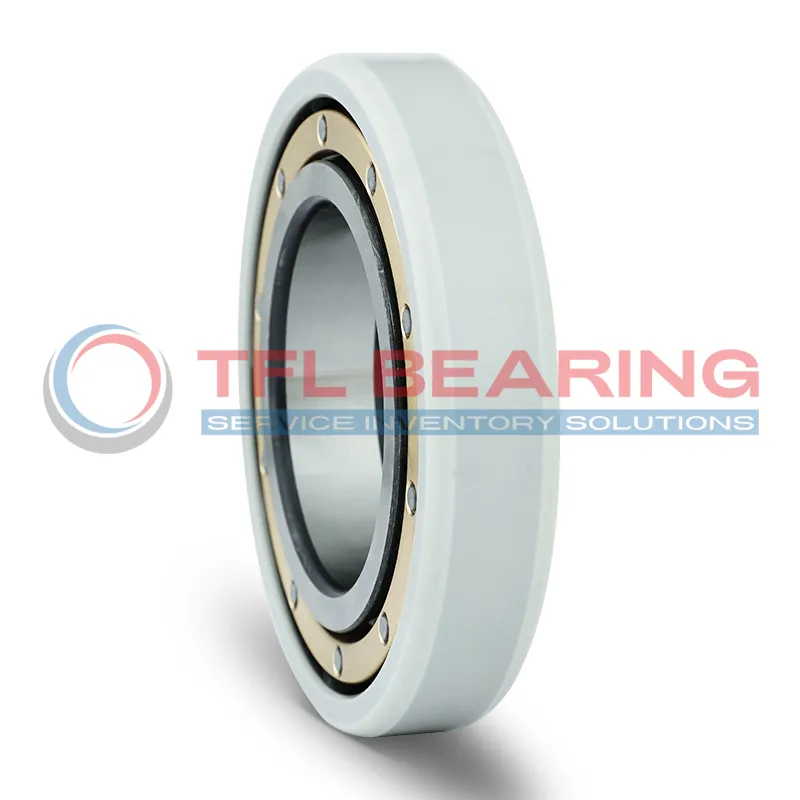

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU328-E-M1-J20AA-C3

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU328-E-M1-J20AA-C3

The FAG NU328-E-M1-J20AA-C3 is a current-insulated cylindrical roller bearing with a 140mm bore and 300mm outer diameter, designed for heavy-duty applications. Its outer ring features a ceramic coating to prevent electrical arcing, making it ideal for environments with stray currents.

With a dynamic load rating of 680 kN and a static load rating of 930 kN, it handles high loads efficiently. The brass cage ensures smooth operation at speeds up to 1720 rpm, even in demanding conditions.

The C3 radial clearance allows for thermal expansion, while the insulating coating offers high electrical resistance (50MΩ dry, 10MΩ damp). This makes it suitable for use in electric motors, generators, or wind turbines where electrical insulation is crucial.

Weighing 22.6 kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a reliable choice for modern machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU328-E-M1-J20AA-C3
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 140.0 mm
  • Outside Diameter 300.0 mm
  • Width 62.0 mm
  • Net Weight 22.6 kg
  • Basic Dynamic Load Rating 680 kN
  • Basic Static Load Rating 930 kN
  • Reference Speed 1720r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material M - Brass Cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant
FAG Current-Insulated Single Row Cylindrical Roller Bearing NU328-E-M1-J20AA-C3 dimension drawing
Download DWG Download PDF

Features

How Is NU328-E-M1-J20AA-C3 Bearing Engineered for Reliability?

NU328-E-M1-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent current insulation.
This design prevents electrical arcing, making it ideal for applications with stray currents.

The brass cage ensures smooth operation and reduces friction under heavy loads.
With a basic dynamic load rating of 680 kN, it handles demanding industrial conditions.

NU328-E-M1-J20AA-C3 Bearing’s C3 radial clearance allows for thermal expansion in high-speed applications.
Its breakdown voltage of up to 1000V ensures reliable performance in electrically challenging environments.

The bearing’s ceramic coating maintains high electrical resistance, even in damp conditions.
This makes NU328-E-M1-J20AA-C3 Bearing a durable choice for various industrial uses.

Application

Industrial Uses of NU328-E-M1-J20AA-C3 Bearing
NU328-E-M1-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical damage. The brass cage ensures smooth operation even under high loads.

In wind turbines, NU328-E-M1-J20AA-C3 Bearing handles radial loads efficiently, making it ideal for rotor shafts. Its ceramic-coated outer ring adds durability in harsh weather conditions.

For railway applications, NU328-E-M1-J20AA-C3 Bearing supports axle boxes, providing reliable performance over long distances. The C3 clearance allows for thermal expansion during extended use.

Where Is NU328-E-M1-J20AA-C3 Bearing Used?
NU328-E-M1-J20AA-C3 Bearing fits well in industrial pumps, where its high dynamic load rating ensures longevity. The insulating properties protect against stray currents.

In mining equipment, NU328-E-M1-J20AA-C3 Bearing withstands heavy loads and vibrations. Its robust design minimises maintenance needs in demanding environments.

Built for Heavy-Duty Use: NU328-E-M1-J20AA-C3 Bearing
NU328-E-M1-J20AA-C3 Bearing excels in steel mills, where high temperatures and heavy loads are common. The ceramic coating resists wear and electrical arcing.

For conveyor systems, NU328-E-M1-J20AA-C3 Bearing offers reliable performance with minimal downtime. Its brass cage reduces friction, enhancing efficiency.

Automotive vs Aerospace: Applications of NU328-E-M1-J20AA-C3 Bearing
In automotive drivetrains, NU328-E-M1-J20AA-C3 Bearing handles high radial loads smoothly. The insulating coating prevents electrical pitting.

For aerospace ground equipment, NU328-E-M1-J20AA-C3 Bearing provides precision and durability. Its lightweight design doesn’t compromise on strength.
