Drawn Cup Needle Roller Bearings BCE2016

Drawn Cup Needle Roller Bearings BCE2016

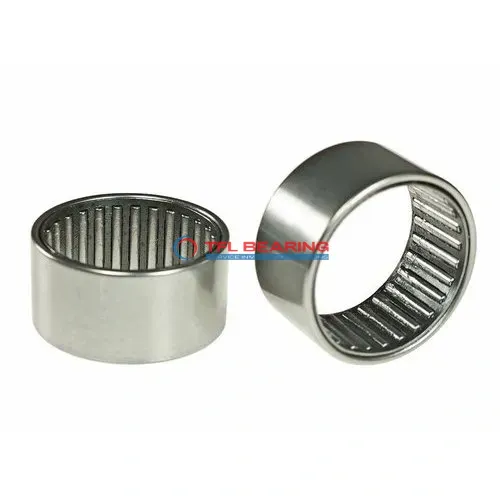

The BCE2016 is a drawn cup needle roller bearing with a 1.25″ bore and 1.5″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 607 lbf and operates smoothly at speeds up to 8200 RPM.
Its open, single-row design with a press-fit shaft mount ensures easy installation and maintenance. The steel cage and rollers provide durability, making it suitable for high-load applications.
This bearing requires lubrication to maintain optimal performance and works well in temperatures ranging from -20°C to 110°C. It’s interchangeable with INA bearings, offering a practical replacement option.
Ideal for use in automotive or industrial machinery where space is limited but high radial load capacity is needed. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE2016
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.25"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.5"
  • Outer Dia Tolerance Not Rated
  • Width 1"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 607 lbf
  • Static Radial Load 12364 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 8200 rpm
  • Weight 45 g
Drawn Cup Needle Roller Bearings BCE2016 dimension drawing
Download DWG Download PDF

Features

Why Choose BCE2016 Bearing for Precision Tasks?
BCE2016 Bearing is crafted with steel rings and needles, offering strong radial load support.
Its dynamic radial load capacity reaches 607 lbf, making it suitable for precise applications.
The press-fit shaft mount ensures secure installation, reducing slippage during operation.
With a maximum speed of 8,200 rpm, it balances performance and durability.

Application

Key Fields for BCE2016 Bearing
BCE2016 Bearing is commonly used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor rollers and printing presses. Its steel construction ensures durability in demanding environments.
In automotive applications, BCE2016 Bearing fits well in gearboxes and steering systems, providing reliable performance under heavy loads. The press-fit design makes installation straightforward, saving time during assembly.
For automation equipment, BCE2016 Bearing works smoothly in robotic arms and linear guides, thanks to its needle roller design. The open seal allows for easy lubrication, extending its service life in continuous operations.
Around the home, BCE2016 Bearing can be found in power tools and garden equipment, where its compact size and strength are appreciated. The inch measurements make it compatible with many North American products.
