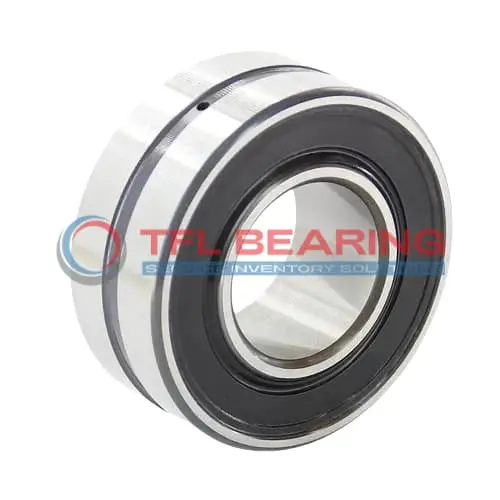

BS2-2212-2CS2/C3GEM9 Double Row Spherical Roller Bearing

BS2-2212-2CS2/C3GEM9 Double Row Spherical Roller Bearing

The BS2-2212-2CS2/C3GEM9 is a double-row spherical roller bearing with a 60mm bore and 110mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 35745 lbf and operates smoothly at speeds up to 2700 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures reliable performance. The bearing requires lubrication and works in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where robust performance is needed.

Weighing 1.3kg, it’s built to last while meeting RoHS and REACH standards for safety and compliance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-2212-2CS2/C3GEM9
  • Brand TFL
  • Interchangeable SKF
  • Size 60 x 110 x 34 mm
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 34 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 69.7 mm
  • Shoulder/Recess Dia Of Outer Ring 101 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 35745 lbf
  • Static Radial Load 37318 lbf
  • Max Speed 2700 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.3 kg

Features

Performance Features of BS2-2212-2CS2/C3GEM9 Bearing

BS2-2212-2CS2/C3GEM9 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 35745 lbf, making it suitable for heavy-duty applications.

The double seal design of BS2-2212-2CS2/C3GEM9 Bearing protects against contaminants, ensuring smooth operation.
With a maximum speed of 2700 rpm, it delivers reliable performance in various industrial settings.

BS2-2212-2CS2/C3GEM9 Bearing operates in temperatures from -30° to 200 °C, adapting to extreme conditions.
Its C3 radial clearance allows for thermal expansion, maintaining efficiency under load.

The steel cage in BS2-2212-2CS2/C3GEM9 Bearing keeps rollers aligned, reducing friction and wear.
This design extends service life and lowers maintenance requirements.

BS2-2212-2CS2/C3GEM9 Bearing’s lubrication groove ensures consistent oil distribution for optimal performance.
Its precision engineering makes it a dependable choice for demanding machinery.

Application

Industrial Uses of BS2-2212-2CS2/C3GEM9 Bearing
BS2-2212-2CS2/C3GEM9 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction also compensates for misalignment, ensuring smooth operation in rough conditions.

What Makes BS2-2212-2CS2/C3GEM9 Bearing a Preferred Choice?
In conveyor systems, BS2-2212-2CS2/C3GEM9 Bearing’s double seals protect against dust and debris, extending service life. Its C3 radial clearance allows for thermal expansion, making it suitable for high-temperature environments.

Built for Heavy-Duty Use: BS2-2212-2CS2/C3GEM9 Bearing
For mining equipment, BS2-2212-2CS2/C3GEM9 Bearing’s chrome steel rollers provide excellent wear resistance under extreme loads. The lubrication groove ensures consistent performance, even in demanding applications.

Automotive vs Aerospace: Applications of BS2-2212-2CS2/C3GEM9 Bearing
In automotive drivetrains, BS2-2212-2CS2/C3GEM9 Bearing supports heavy loads while reducing friction. Its metric sizing and compatibility with SKF models make it a versatile choice for various industries.

Perfect Fit for Automation: BS2-2212-2CS2/C3GEM9 Bearing
BS2-2212-2CS2/C3GEM9 Bearing is ideal for robotic arms, where its double-row design ensures precision and stability. The steel cage enhances durability, making it reliable for continuous operation.
