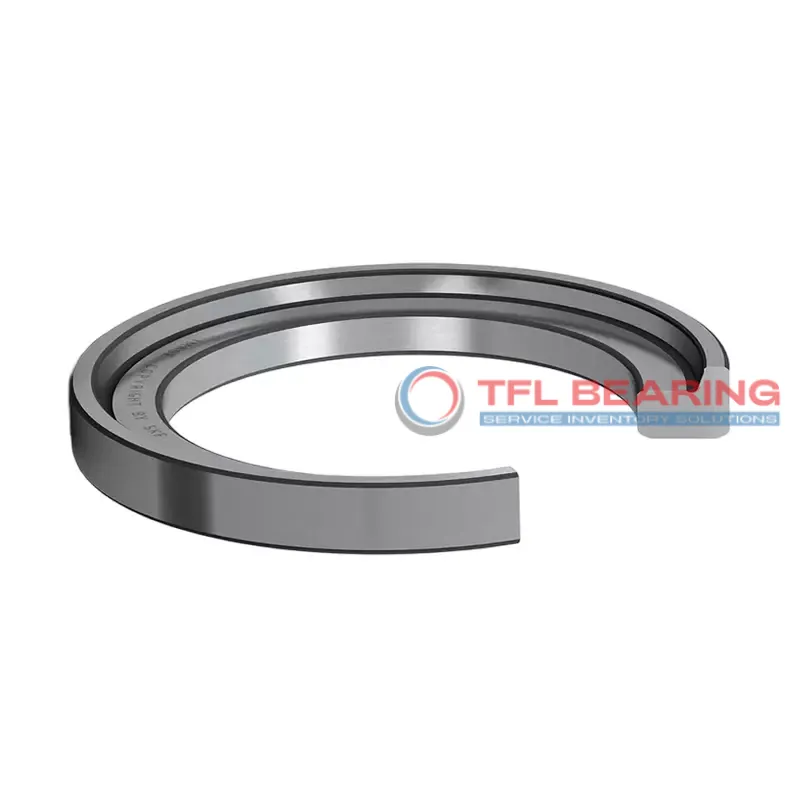

Angle Rings For Cylindrical Roller Bearings HJ 212 EC

Angle Rings For Cylindrical Roller Bearings HJ 212 EC

The HJ 212 EC angle ring is designed for cylindrical roller bearings, with a 60mm bore and 77.55mm outer diameter. Made from sturdy chrome steel, it operates reliably in temperatures from -30°C to 110°C.
Its 6mm width on the inner ring side ensures a secure fit, while the 10mm overall width provides stability. The chamfered edges (1.5mm) help with easy installation and alignment.
This angle ring is interchangeable with SKF models, making it a practical choice for replacements. It’s commonly used in industrial machinery where precise bearing alignment is needed.
Weighing just 0.1kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 212 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.15mm to 0
  • Outer Dia 77.55 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width Contacting Inner Ring Side Face 6 mm
  • Width 10 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 1.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.1 kg
Angle Rings For Cylindrical Roller Bearings HJ 212 EC dimension drawing
Download DWG Download PDF

Features

How Is HJ 212 EC Bearing Engineered for Reliability?
HJ 212 EC Bearing is crafted from chrome steel, offering strong resistance to wear and tear.
Its precise dimensions, with a bore diameter of 60 mm, ensure a secure fit in various applications.
The cylindrical roller design enhances load distribution, improving overall durability.
With a temperature range of -30° to 110°C, it performs reliably in diverse environments.
HJ 212 EC Bearing’s chamfered edges reduce stress concentrations, prolonging service life.
Its compliance with RoHS and REACH standards ensures safety and environmental friendliness.

Application

Industrial Uses of HJ 212 EC Bearing
HJ 212 EC Bearing is commonly used in heavy machinery, such as industrial presses and gearboxes, where its cylindrical roller design handles radial loads efficiently. The chrome steel construction ensures durability in demanding environments.
In automotive applications, HJ 212 EC Bearing fits well in transmission systems, providing reliable support for high-speed rotations. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, HJ 212 EC Bearing’s precise tolerances ensure smooth operation in robotic arms and conveyor systems. The compact design also saves space in tightly packed assemblies.
Medical devices benefit from HJ 212 EC Bearing’s consistent performance, particularly in imaging equipment where precision is key. The material choice ensures long-term reliability with minimal maintenance.
