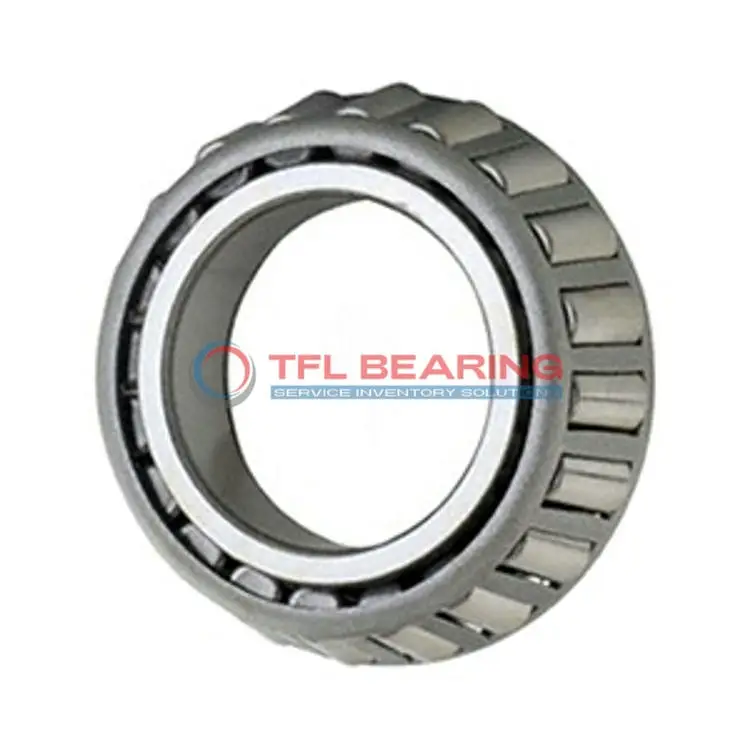

863X Single Cones (Imperial)

863X Single Cones (Imperial)

The 863X single cones are imperial-sized tapered roller bearings with a 3.937-inch bore, designed for combined loads. Made from durable chrome steel, they handle dynamic radial loads up to 103,000 lbf and static loads up to 142,000 lbf.

Their open design and steel cage ensure reliable performance, with a temperature range of -30°C to 110°C. The cones are interchangeable with Timken models, making them a practical choice for replacements.

These bearings are ideal for heavy-duty applications like industrial machinery or vehicle axles, where robust performance is needed. They come in standard radial clearance but are also available in C3, C4, or C5 options for specific needs.

Compliant with RoHS and REACH standards, the 863X series offers a balance of strength and versatility for demanding environments. Their ABEC-1 rating ensures consistent quality for general industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 863X
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 863X-852 , 863X-854 , 863X-854V , 863X-854X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 855
  • Bore Dia 3.937"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 2.265"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.24"
  • Cone Frontface Backing Diameter 4.63"
  • Cone Backface Backing Diameter 4.88"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location -0.6"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 103000 lbf
  • Static Radial Load 142000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 26700 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 179000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 15300 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 46400 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Is 863X Bearing Engineered for Reliability?

863X Bearing is constructed with chrome steel rings, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 103,000 lbf, ensuring dependable performance in tough conditions.

The tapered roller design of 863X Bearing enhances load distribution, reducing wear over time.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

863X Bearing’s steel cage maintains roller alignment, contributing to extended service life.
Its standard radial clearance options provide flexibility for different application needs.

Application

Industrial Uses of 863X Bearing
The 863X Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough working conditions.

What Makes 863X Bearing a Preferred Choice?
In automotive applications, 863X Bearing is often found in wheel hubs and differential systems, providing reliable performance under high stress. The inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 863X Bearing
For industrial conveyor systems, 863X Bearing offers smooth operation and long service life, even under continuous use. Its open design allows for easy lubrication and maintenance, reducing downtime.

Automotive vs Aerospace: Applications of 863X Bearing
While 863X Bearing is widely used in trucks and off-road vehicles, it also finds a place in aerospace landing gear systems. Its high dynamic load capacity makes it suitable for demanding environments.

Key Fields for 863X Bearing
In agricultural machinery, 863X Bearing supports components like gearboxes and PTO shafts, where its robust design withstands dirt and moisture. The steel cage adds extra resilience in harsh farming conditions.
