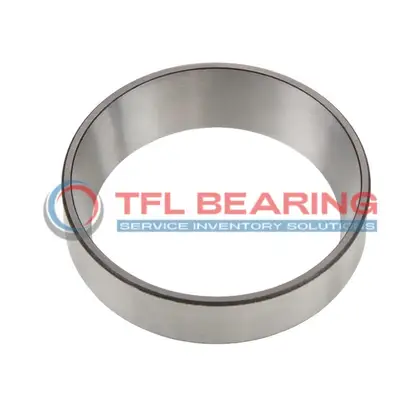

5335V Single Cups (Imperial)

5335V Single Cups (Imperial)

The 5335V is a single cup tapered roller bearing with a 4.0625″ outer diameter and 1.4375″ width, made from sturdy chrome steel. It fits well with standard tapered rollers and handles moderate speeds with ease.

Its standard cup design ensures compatibility with Timken models, making replacements straightforward. The bearing operates smoothly in temperatures from -30°C to 110°C.

With an ABEC-1 rating, it offers reliable precision for general industrial use. The cup’s backface and frontface backing diameters provide a secure fit in housings.

Ideal for applications like conveyor systems or vehicle axles, where durability and easy maintenance are key. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 5335V
  • Brand TFL
  • Interchangeable Timken
  • Size 3.50" x 4.0625" x 1.4375"
  • Outer Dia 4.0625"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.13"
  • Cup Frontface Backing Diameter 3.85"
  • Cup Backface Backing Diameter 3.50"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 5356-5335V , 5358-5335V , 5361-5335V , 5395-5335V , 5395V-5335V
  • Cups Type Standard
  • Series 5300
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Is 5335V Bearing Engineered for Reliability?

5335V Bearing is crafted from high-quality chrome steel, ensuring durability and resistance to wear.
Its tapered roller design provides stable performance under varying load conditions.

The cup width tolerance of +0.002″ to -0.01″ ensures precise fit and alignment during installation.
With a temperature range of -30° to 110°C, it performs reliably in diverse environments.

5335V Bearing is interchangeable with Timken models, offering flexibility for different applications.
Its ABEC-1 rating guarantees consistent performance for standard precision requirements.

Application

Industrial Uses of 5335V Bearing
5335V Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 5335V Bearing Used?
You’ll often find 5335V Bearing in automotive wheel hubs and industrial gearboxes, thanks to its reliable performance under high stress. Its inch sizing makes it a go-to choice for machinery requiring imperial measurements.

Built for Heavy-Duty Use: 5335V Bearing
5335V Bearing excels in applications like mining equipment and conveyor systems, where its robust design withstands constant heavy loads. The standard cup type simplifies installation and maintenance.

Automotive vs Industrial: Applications of 5335V Bearing
In automotive settings, 5335V Bearing supports wheel assemblies, while in industrial contexts, it’s ideal for gearboxes and pumps. Its temperature range ensures stable performance in varied environments.
