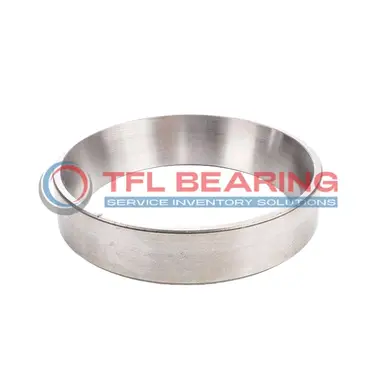

532XA Single Cups (Imperial)

532XA Single Cups (Imperial)

The 532XA is a single cup tapered roller bearing with an outer diameter of 4.3287 inches and a width of 1.125 inches, crafted from durable chrome steel. It fits well in imperial-sized applications and is interchangeable with Timken models.

Designed for standard use, it operates smoothly in temperatures ranging from -30°C to 110°C. Its ABEC-1 rating ensures reliable performance for general industrial needs.

The cup features precise tolerances, with a backing diameter of 3.96 inches at the front and 3.74 inches at the back. This makes it suitable for various tapered roller bearing assemblies.

Ideal for machinery requiring sturdy support, it complies with RoHS and REACH standards. Its robust construction ensures long service life in demanding conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 532XA
  • Brand TFL
  • Interchangeable Timken
  • Size 3.74" x 4.3287" x 1.125"
  • Outer Dia 4.3287"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.13"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.74"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 535-532XA , 536-532XA , 537-532XA , 537X-532XA , 538-532XA , 539-532XA , 539A-532XA , 539W-532XA , 540-532XA , 542-532XA , 543-532XA , 545-532XA
  • Cups Type Standard
  • Series 535
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 532XA Single Cups

532XA Single Cups are made from chrome steel, offering durability and resistance to wear in various applications.
The outer diameter tolerance of +0.001″ to 0 ensures a precise fit, enhancing performance and reliability.

With a temperature range of -30° to 110°C, 532XA Single Cups perform well in diverse environments.
The standard cup design simplifies installation, making it compatible with multiple bearing part numbers.

532XA Single Cups are RoHS and REACH compliant, meeting international environmental standards.
Their tapered roller bearing type provides efficient load handling, suitable for industrial use.

Application

Key Fields for 532XA Bearing
532XA Bearing is commonly used in industrial settings, especially in heavy machinery where tapered roller bearings are needed for handling radial and axial loads. Its chrome steel construction ensures durability in demanding environments like mining equipment.

Where Is 532XA Bearing Used?
In automotive applications, 532XA Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 532XA Bearing
For construction equipment, 532XA Bearing excels in supporting heavy loads in cranes and bulldozers. Its standard cup design simplifies installation and maintenance in rugged conditions.

Automotive vs Industrial: Applications of 532XA Bearing
In industrial gearboxes, 532XA Bearing offers smooth operation, while in automotive transmissions, it ensures efficient power transfer. The tapered design adapts well to both high and low-speed scenarios.

Perfect Fit for Automation: 532XA Bearing
532XA Bearing is suitable for conveyor systems in automated production lines, where consistent performance is key. The ABEC-1 rating balances precision and cost-effectiveness for such applications.
