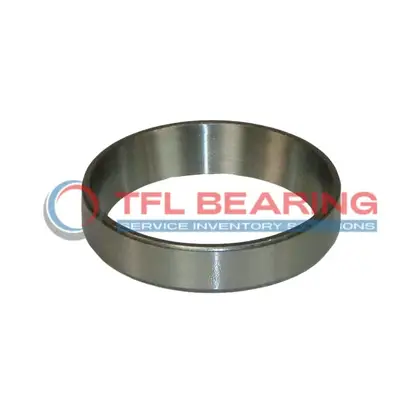

352X Single Cups (Imperial)

352X Single Cups (Imperial)

The 352X single cup is an imperial-sized tapered roller bearing component, measuring 3.07″ in backface diameter and 3.5433″ in outer diameter. Made from durable chrome steel, it operates smoothly in temperatures from -30°C to 110°C.

Its standard cup design fits various bearing part numbers, including Timken equivalents, making it versatile for replacements. The cup width of 0.8586″ ensures a secure fit in compatible assemblies.

With an ABEC-1 rating, it offers reliable precision for general industrial use. The chrome steel construction provides good wear resistance under typical loads.

Ideal for machinery maintenance or repairs where tapered roller bearings are needed. Compliant with RoHS and REACH standards for safe handling and use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 352X
  • Brand TFL
  • Interchangeable Timken
  • Size 3.07" x 3.5433" x 0.8586"
  • Outer Dia 3.5433"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.8586"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.09"
  • Cup Frontface Backing Diameter 3.27"
  • Cup Backface Backing Diameter 3.07"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 350-352X , 350A-352X , 355-352X , 355A-352X , 355X-352X , 356-352X , 357-352X , 358-352X , 358A-352X , 358X-352X
  • Cups Type Standard
  • Series 355
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Structural Advantages of 352X Bearing

352X Bearing features a chrome steel construction, ensuring durability and resistance to wear.
Its standard cup design provides reliable performance in various industrial applications.

The precise outer diameter tolerance of +0.001″ to 0 ensures a snug fit for optimal operation.
With a temperature range of -30° to 110°C, it performs well in diverse environmental conditions.

352X Bearing is interchangeable with multiple part numbers, offering flexibility for replacements.
Its tapered roller bearing type enhances load distribution, improving overall efficiency.

Application

Industrial Uses of 352X Bearing
The 352X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered design handles radial and thrust loads effectively. Its chrome steel construction ensures durability in tough working conditions.

Where Is 352X Bearing Used?
You’ll often find 352X Bearing in automotive applications like wheel hubs and differential systems, thanks to its precise inch measurements and compatibility with Timken designs. It’s a reliable choice for smooth performance under varying loads.

Built for Heavy-Duty Use: 352X Bearing
352X Bearing excels in industrial settings like conveyor systems and mining equipment, where its robust build withstands continuous operation. The standard cup type makes it easy to integrate into existing setups.

Automotive vs Industrial: Applications of 352X Bearing
In vehicles, 352X Bearing supports wheel assemblies, while in factories, it keeps conveyor belts running smoothly. Its ABEC-1 rating ensures consistent performance across different environments.

Perfect Fit for Automation: 352X Bearing
352X Bearing works well in automated systems, such as packaging machines, where its tapered rollers provide stable movement. The inch sizing makes it versatile for various equipment designs.
