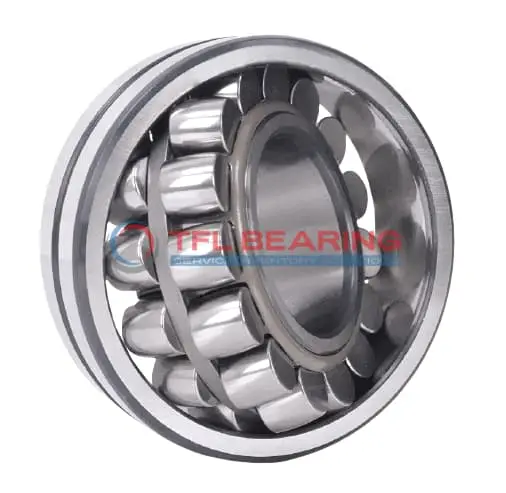

22316 E/C1 Double Row Spherical Roller Bearing

22316 E/C1 Double Row Spherical Roller Bearing

The 22316 E/C1 is a double-row spherical roller bearing with an 80mm bore and 170mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 116001 lbf and operates smoothly at speeds up to 4000 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The open construction requires regular lubrication, with grooves and holes for easy maintenance.

This bearing suits high-load applications like heavy machinery or industrial gearboxes, where reliability is key. It works in temperatures from -30°C to 200°C, making it versatile for various environments.

Weighing 6.25kg, it’s built to handle demanding conditions. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22316 E/C1
  • Brand TFL
  • Interchangeable SKF
  • Size 80 x 170 x 58 mm
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 58 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 98.3 mm
  • Shoulder/Recess Dia Of Outer Ring 143 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 116001 lbf
  • Static Radial Load 119149 lbf
  • Max Speed 4000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C1
  • RoHs Compliant
  • REACH Compliant
  • Weight 6.25 kg
  • Price （US$） 127.42

Features

Performance Features of 22316 E/C1 Bearing

22316 E/C1 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 116001 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 4000 rpm, it delivers reliable performance in various industrial settings.

22316 E/C1 Bearing operates in temperatures from -30° to 200°C, adapting to harsh environments.
The C1 radial clearance provides optimal performance for precision applications.

Steel cage construction maintains roller alignment, reducing wear and extending service life.
Lubrication grooves and holes ensure consistent lubrication, enhancing operational efficiency.

Application

Industrial Uses of 22316 E/C1 Bearing
22316 E/C1 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The chrome steel construction ensures durability even in demanding industrial environments.

What Makes 22316 E/C1 Bearing a Preferred Choice?
In automotive applications, 22316 E/C1 Bearing supports components like differential systems, offering reliable performance under high loads. Its spherical roller design accommodates misalignment, making it versatile for various vehicle models.

Built for Heavy-Duty Use: 22316 E/C1 Bearing
For automation systems, 22316 E/C1 Bearing is ideal for robotic arms and conveyor belts, where smooth operation is essential. The steel cage provides added strength, ensuring longevity in continuous-use scenarios.

Medical vs Industrial: Where 22316 E/C1 Bearing Excels
In medical imaging devices, 22316 E/C1 Bearing’s precision and high-speed capabilities are crucial for accurate diagnostics. Meanwhile, its robust design makes it equally suitable for industrial equipment like pumps and compressors.

Essential Roles of 22316 E/C1 Bearing
22316 E/C1 Bearing is a reliable choice for wind turbines, where it handles varying loads and speeds with ease. The C1 radial clearance ensures optimal performance in temperature fluctuations, from -30° to 200°C.
