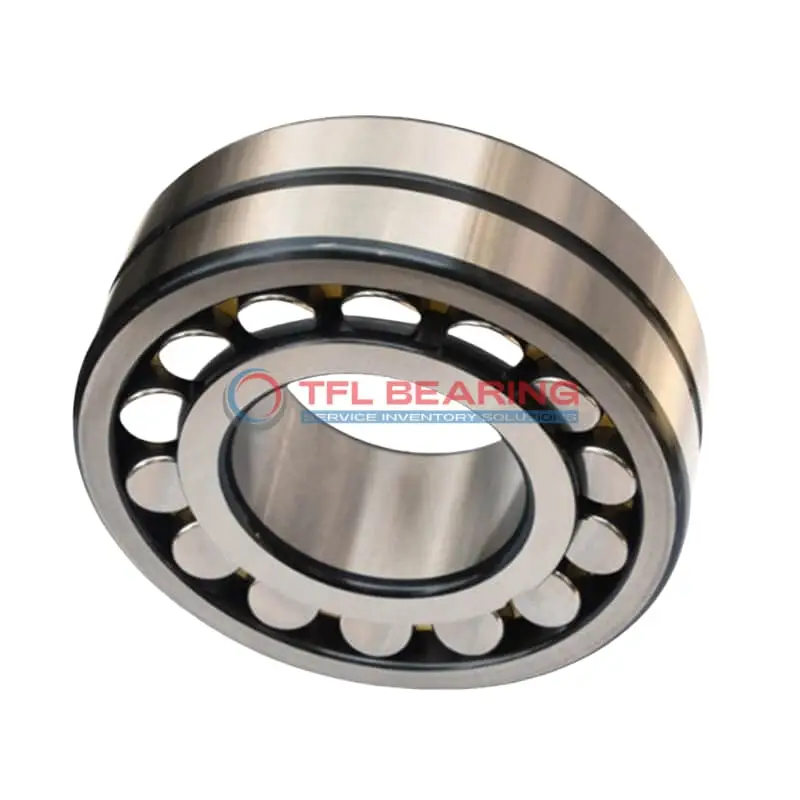

22316 Double Row Spherical Roller Bearing

22316 Double Row Spherical Roller Bearing

The 22316 is a double-row spherical roller bearing with an 80mm bore and 170mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 116001 lbf and runs smoothly at speeds up to 4000 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability under heavy loads. The open construction requires regular lubrication for optimal performance.

This bearing operates in temperatures from -30°C to 200°C, making it suitable for harsh environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 6.25kg, it’s designed for industrial applications like gearboxes or heavy machinery where high radial loads are common. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22316
  • Brand TFL
  • Interchangeable SKF
  • Size 80 x 170 x 58 mm
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 58 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 98.3 mm
  • Shoulder/Recess Dia Of Outer Ring 143 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 116001 lbf
  • Static Radial Load 119149 lbf
  • Max Speed 4000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 6.25 kg
  • Price （US$） 78.48

Features

Performance Features of 22316 Bearing

22316 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 116001 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 4000 rpm, it maintains efficiency even under demanding conditions.

22316 Bearing operates in temperatures from -30° to 200°C, making it suitable for various environments.
The steel cage ensures proper roller alignment, extending the bearing’s service life.

Lubrication grooves and holes in 22316 Bearing facilitate smooth operation and reduce maintenance needs.
Its robust construction and precise tolerances make it a dependable choice for industrial use.

Application

Industrial Uses of 22316 Bearing
22316 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction also compensates for minor misalignments, ensuring smooth operation.

Where Is 22316 Bearing Used?
You’ll often find 22316 Bearing in conveyor systems and industrial fans, thanks to its high dynamic load capacity. Its open design allows for easy lubrication, which is essential in dusty or high-temperature environments.

Built for Heavy-Duty Use: 22316 Bearing
22316 Bearing excels in mining equipment, where its robust construction withstands extreme loads and harsh conditions. The chrome steel rollers and cage provide durability, making it a reliable choice for long-term use.

Automotive vs Aerospace: Applications of 22316 Bearing
In automotive applications, 22316 Bearing supports heavy axles and gearboxes, while in aerospace, it’s used in auxiliary systems requiring high precision. Its wide temperature range ensures performance in varied conditions.

Practical Applications of 22316 Bearing
22316 Bearing is ideal for wind turbines, where its ability to handle misalignment and heavy loads is crucial. The steel cage and rollers ensure longevity, even in constant, high-stress operations.
