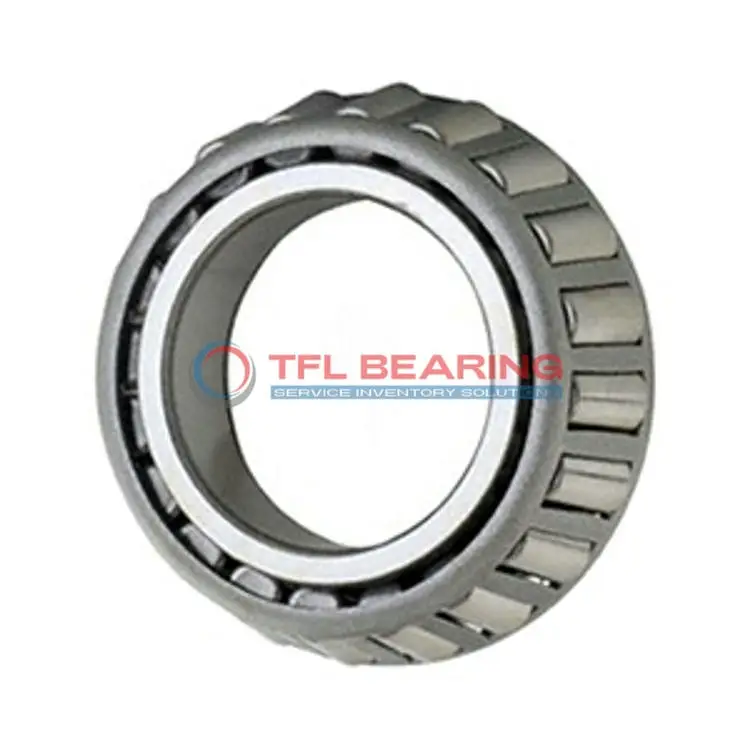

0687 Single Cones (Imperial)

0687 Single Cones (Imperial)

The 0687 single cones are tapered roller bearings with a 4-inch bore, designed for combined loads. Made from durable chrome steel, they handle dynamic radial loads up to 59,500 lbf and static loads up to 86,700 lbf.

Their open design allows easy maintenance, while the steel cage ensures reliable performance. The bearings operate smoothly in temperatures from -30°C to 110°C, making them versatile for various conditions.

These cones are part of the 675 series and are interchangeable with Timken models. Ideal for heavy-duty applications like industrial machinery or vehicle axles where combined loads are common.

Compliant with RoHS and REACH standards, they offer a balance of strength and durability. Available in standard radial clearance, with options for C3, C4, or C5 if needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 0687
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 687-672 , 687-672-B , 687-672A , 687-672P , 687-673 , 687-674
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 675
  • Bore Dia 4"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 1.625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 4.41"
  • Cone Backface Backing Diameter 4.65"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.17"
  • Effective Center Location -0.11"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 59500 lbf
  • Static Radial Load 86700 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 15400 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 104000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 12400 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 26900 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Does 0687 Single Cones Handle Combined Loads?

0687 Single Cones are crafted from chrome steel, offering strong resistance to both radial and thrust loads.
Their dynamic radial load capacity reaches 59,500 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains proper roller alignment, reducing wear and extending service life.
With a temperature range of -30° to 110°C, they perform well in various environments.

Why Choose 0687 Single Cones for Heavy-Duty Applications?

0687 Single Cones feature a tapered roller design, optimised for handling combined loads efficiently.
Their static radial load capacity of 86,700 lbf makes them suitable for heavy-duty machinery.
The open seal type allows for easy maintenance and inspection.
Built to ABEC-1 standards, they balance precision and durability.

Engineered for Reliability: 0687 Single Cones

0687 Single Cones are designed with precise cone width tolerances, ensuring consistent performance.
The chrome steel construction resists wear, even under high dynamic thrust loads.
Effective center location design enhances stability during operation.
They meet RoHS and REACH compliance, making them environmentally friendly.

Application

Industrial Uses of 0687 Single Cones
The 0687 Single Cones are commonly used in heavy machinery, such as construction equipment and mining tools, where their tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is 0687 Single Cones Used?
You’ll often find 0687 Single Cones in agricultural machinery, supporting components like gearboxes and wheel hubs. Their inch sizing makes them a reliable choice for older or imperial-based systems.

Built for Heavy-Duty Use: 0687 Single Cones
These cones excel in industrial applications like conveyor systems, where their open design allows for easy inspection and maintenance. The steel cage adds extra strength, making them suitable for high-load scenarios.

Automotive vs Aerospace: Applications of 0687 Single Cones
In automotive settings, 0687 Single Cones are used in truck axles and drivetrains, offering stability under heavy loads. While not typically used in aerospace, their precision makes them ideal for ground-based heavy equipment.

Key Fields for 0687 Single Cones
The 0687 Single Cones are a go-to for railway applications, particularly in freight car wheel assemblies. Their standard radial clearance ensures smooth operation over long distances.
