The Basics of Roller Bearings in 2025

A roller bearing helps machines move easily. It uses rollers, not balls. In 2025, roller bearings help factories, cars, and big machines work safely. You can find roller bearings where there are heavy loads and shocks. They are used in mining and large trucks.

Ball bearings use small balls. Roller bearings use rollers with a bigger contact area. This lets roller bearings carry heavier loads. They also handle shocks better than ball bearings. Ball bearings are in bikes and motors. Roller bearings are better for hard jobs. TFL has many types of bearings for your needs.

Key Takeaways

• Roller bearings use rollers to hold heavy things. They handle shocks better than ball bearings. This makes them good for hard jobs like mining and big machines.
• There are different roller bearings for different jobs. Cylindrical ones are for heavy loads. Needle ones fit in small spaces. Tapered ones handle side and end loads. Spherical ones help when things do not line up. Crossed ones are for very exact movements.
• Good lubrication and seals are very important. They lower friction and stop wear. They help roller bearings last longer and work safer.
• Picking the right roller bearing depends on many things. You must think about the machine’s load, speed, environment, and space. Using a checklist helps you choose the best one.
• Regular maintenance is needed to keep bearings working well. You should check for noise, heat, and vibration. Lubricate and replace them on time. This stops breakdowns and keeps machines running.

Roller Bearings Overview

What Are Roller Bearings

Roller bearings help machines move with less rubbing. They are a type of rolling-element bearing. These bearings use rollers, not balls. The rollers can be different shapes like cylindrical, tapered, spherical, or needle. Each bearing has two rings called races. The rollers fit between these rings. When the machine works, the rollers roll between the races. This rolling makes less friction than sliding. Roller bearings are used in heavy machines. They can hold both radial and axial loads. Their main job is to help shafts turn easily and carry heavy things.

Roller bearings roll instead of slide. This makes them work well and helps machines last longer.

Key Features

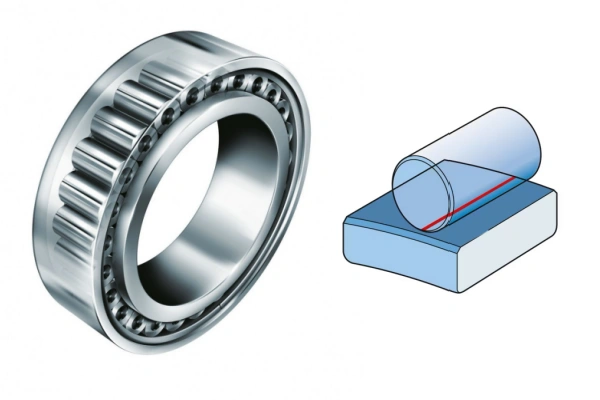

Roller bearings have some important parts. They use line contact, so the rollers touch the races along a line. Ball bearings only touch at one point. Because of line contact, roller bearings can hold more weight and take more shock. That is why they are used in mining machines, trucks, and other hard jobs.

Here are some main facts about roller bearings and ball bearings:

• Roller bearings use rollers, but ball bearings use balls.
• Roller bearings can hold more weight because of line contact.
• Ball bearings are better for fast speeds and small misalignments.
• Roller bearings are better for shock and heavy loads.

A cage inside the bearing keeps the rollers apart. This helps the bearing move smoothly and go faster. Lubrication is very important. It lowers friction, stops wear, and keeps the bearing safe. You can use grease or oil for lubrication. Good lubrication helps the bearing last longer.

Roller bearings have very low friction. The frictional torque is small, so machines use less energy. New roller bearings last longer because of better steel and new designs. TFL has many types of roller bearings for all kinds of machines, from simple ones to big industrial systems.

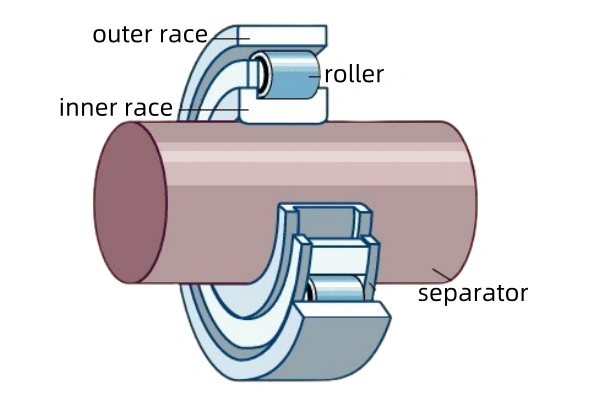

Bearings Components

Roller bearings have several important parts that work together to help machines run smoothly. You need to know these parts to understand how bearings work and how to keep them in good shape. The main components in roller bearings include rollers, rings, cage, and seals with lubrication.

Rollers

Rollers are the moving parts inside roller bearings. They come in different shapes, such as cylindrical, needle, tapered, or spherical. These shapes help the bearings handle different types of loads. Rollers touch the rings along a line, not just at one point. This line contact lets roller bearings carry heavier loads and handle more shock than ball bearings. You can see the difference in performance by looking at the table below:

Rings

Rings are the tracks that rollers move on. Each bearing has an inner ring and an outer ring. The shaft fits inside the inner ring, and the outer ring stays in the housing. The rings must be strong and smooth. If the rings wear out, the rollers cannot move well, and the bearing may fail. You should always check the rings for signs of wear or damage.

Cage

The cage keeps the rollers spaced out and stops them from touching each other. This part helps the rollers move smoothly and reduces friction. A good cage lets the bearing run faster and last longer. If the cage breaks, the rollers can jam or wear out quickly.

Tip: Listen for noise or feel for vibration. These signs can tell you if the cage or rollers have problems.

Seals and Lubrication

Seals keep dirt and water out of the bearings. They also help keep the lubricant inside. Lubrication is very important for roller bearings. It reduces friction, cools the parts, and stops rust. You can use grease or oil, but you must pick the right type for your machine. New sealing technology can help you use less lubricant and reduce how often you need to add more. If you notice the bearing getting hot or making noise, check the seals and add more lubricant if needed.

You can use these tips to keep your roller bearings working well:

• Check for noise, heat, or vibration.
• Make sure the seals are not broken.
• Add lubricant when needed.
• Replace worn rings or cages.

Roller bearings use these strong and smart parts to help machines work hard every day. When you know how each part works, you can keep your bearings running longer and safer.

How Roller Bearings Work

Load Handling

Roller bearings help move heavy machine parts. They use rollers, not balls. The rollers touch the rings along a line. This line contact lets them hold more weight than ball bearings. You see roller bearings in big machines, trains, and trucks. They give better support for heavy shafts and parts that spin.

New roller bearings handle loads better than old ones. For example, tests on train axle boxes show new bearings stay cooler by 0.4–1.4 °C. Cooler bearings have less stress and last longer. Engineers use thermocouples to check heat during use. These tests show new designs help bearings work better with heavy loads.

Lubrication is also very important. A thin oil film forms between the rollers and rings. This film helps the bearing hold more weight and stops wear. Clean and fresh lubricant makes bearings last longer and work better. You should check for vibration, shock, and heat changes. These things affect how well your bearings work.

Note: Good lubrication and regular checks help roller bearings carry heavy loads safely.

Reducing Friction

Friction is a force that slows moving parts. Roller bearings lower friction by letting rollers roll, not slide. This rolling saves energy and helps machines run smoother. Ball bearings have less friction at high speeds. But roller bearings still keep friction low while holding more weight.

• Engineers test friction in roller bearings with special tools. These tests show friction depends on load and oil type. Roller bearings have a little more friction than ball bearings. But they still work well for tough jobs.
• Line contact helps roller bearings hold heavy loads, even if friction is higher. They last longer and handle shocks better than ball bearings.
• Knowing friction helps you pick the right bearing for your machine. You should always match the oil and bearing type to your needs.

Roller bearings give you both low friction and high load strength. This makes them a good choice for many machines.

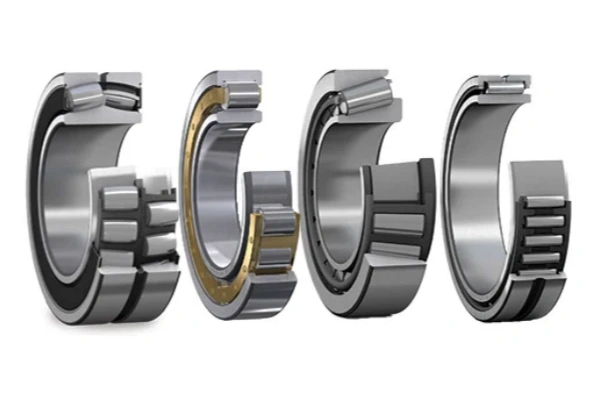

Types of Roller Bearings

There are many kinds of roller bearings in machines today. Each kind has special features to help with different problems. TFL has many roller bearings for your needs. Let’s see the main types and how they work in real life.

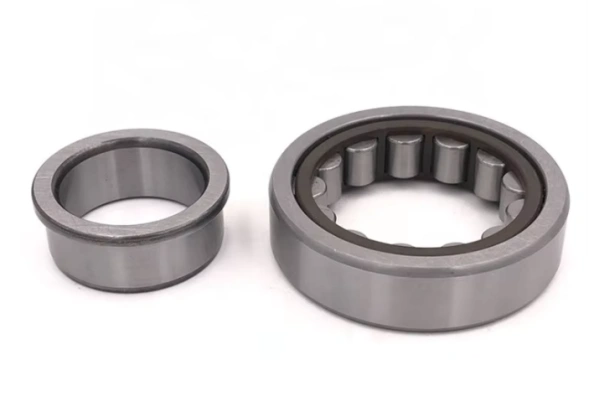

Cylindrical Roller Bearings

Cylindrical roller bearings have straight rollers inside. The rollers touch the raceways in a line. This helps them carry heavy loads. These bearings are used in big machines that need to hold a lot of weight.

• Cylindrical roller bearings hold more weight than ball bearings.
• They are good for machines that do not need to fix misalignment.
• You can find them in motors, gearboxes, and big pumps.

Cylindrical roller bearings give strong support for heavy things. They are best when machines must work in hard jobs.

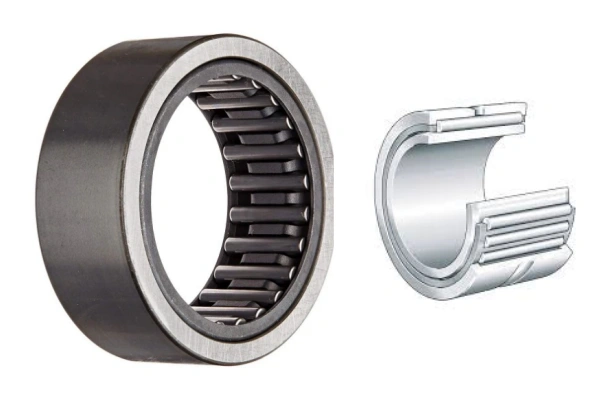

Needle Roller Bearings

Needle roller bearings have long and thin rollers. These rollers make the bearing small and compact. You use them when there is not much space but you still need to carry weight.

NSK found that new needle roller bearings last twice as long. This means you can use smaller bearings without losing strength. Needle roller bearings help you build small but strong machines. You see them in cars, power tools, and small engines.

• Needle roller bearings save space and lower weight.
• They are good when you need to carry weight in a small spot.
• You can use them in gearboxes, transmissions, and pumps.

Tip: If you want a small but strong machine, pick needle roller bearings.

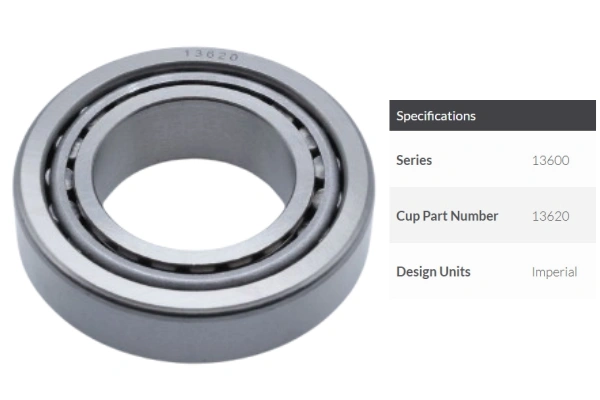

Tapered Roller Bearings

Tapered roller bearings have rollers shaped like cones. These bearings can hold both side and end loads. You use them in machines that get heavy loads from many directions.

Studies show tapered roller bearings carry more weight than other types. They also need fewer rows to do the same job. You find these bearings in car wheels, gearboxes, and big machines.

• Tapered roller bearings hold both side and end loads.
• They are good for cars, mining, and building machines.
• You get better load support with fewer rows.

Tapered roller bearings are best when you need to hold heavy loads from more than one way.

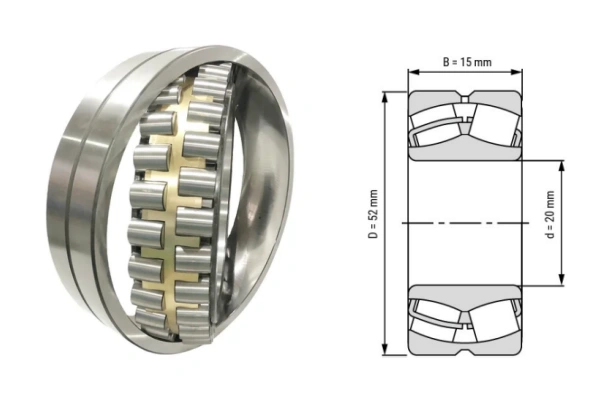

Spherical Roller Bearings

Spherical roller bearings have rollers shaped like barrels. These bearings can hold heavy loads and fix misalignment. You use them in machines that shake or have bent shafts.

You find spherical roller bearings in mining, moving materials, and power plants. They keep working even if the machine shakes. Their shape helps them last longer in hard jobs.

• Spherical roller bearings hold big loads and shocks.
• They fix shaft misalignment.
• You can use them in conveyors, crushers, and turbines.

Note: Spherical roller bearings keep machines working well, even in rough places.

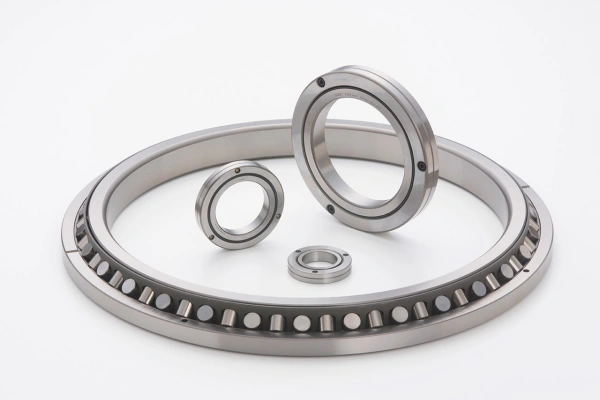

Crossed Roller Bearings

Crossed roller bearings have rollers set at right angles. This makes them very stiff and able to hold loads from all sides. You use them in machines that need to move exactly and stay strong.

These bearings are used in robots, medical tools, and space machines. Their small size and low friction save space and energy. Crossed roller bearings last a long time and need little care.

• Crossed roller bearings are stiff in every direction.
• They hold both side and end loads at once.
• You can use them in robots, medical tools, and exact machines.

Crossed roller bearings help machines move exactly and stay strong in high-tech jobs.

You can pick from these roller bearings for your needs. Each kind has special good points for different jobs. TFL has all these types to help your machines work safely and smoothly.

Applications in 2025

Industrial Uses

Roller bearings are used in many industries now. In 2025, they help machines work well and last longer. You find them in mining, moving materials, food factories, transport, robots, and power plants. These jobs need strong support and can be very heavy. Roller bearings help move big machine parts with less rubbing. They are used in conveyor belts, crushers, turbines, and gearboxes.

The roller bearings market is about USD 24.5 billion in 2025. This is because there are more new machines and cars, especially electric ones. Big energy and building projects also help the market grow. Asia-Pacific grows quickly with new factories and cities. North America and Europe use bearings in cars, planes, and new buildings. More robots and automation are seen in factories now. These changes make roller bearings even more needed for industry.

Picking the right bearings makes machines work better and break less. This saves money and helps your business do well.

Emerging Trends

There are many new things happening with roller bearings. These changes help bearings work better and last longer.

• New materials like ceramic, titanium, and composites help bearings last in hard jobs.
• Better engineering and CNC machines mak

  e strong, special bearings.

• Smart bearings have sensors to check how they are working. You can use this to fix problems before they get bad.
• People care more about the planet. There are green coatings, energy-saving designs, and recycling in making bearings.
• Robots and machines that work by themselves need special bearings for fast and exact moves.
• Digital tools help control how bearings are made and used.
• More electric cars, planes, and green energy need fast and exact bearings.
• AI and machine learning help you know when to change bearings. This keeps machines working longer.

You can use these new ideas to pick the best bearings for your job. TFL can help you keep up with new tech and what you need.

Choosing the Right Bearing

Selection Criteria

You want your machines to run smoothly and last a long time. Picking the right roller bearings is important for this. Start by thinking about where you will use the bearing. Dust, water, or chemicals can change what type you need. Next, look at the kind of load. Some bearings handle heavy weights from the side, while others work better with loads from above or below. Speed matters too. High-speed machines need bearings that can keep up without overheating.

Here is a simple checklist to help you choose:

1. Know your machine’s job and the environment.
2. Check if the load is from the side (radial), from the end (axial), or both.
3. Find out how fast the shaft will spin.
4. Measure the space for the bearing.
5. Decide how much precision you need.
6. Pick the right material for wear and temperature.
7. Think about seals if you work in dirty places.
8. Make sure the size fits your machine.
9. Add shields or seals to keep out dirt.
10. Ask TFL experts for help if you are not sure.

Bearings in dirty places need strong seals. Good seals keep out dust and help the bearing last longer.

Maintenance Tips

You can make your bearings last longer with good care. Most failures happen because of poor lubrication or bad handling. Always store bearings in a clean, dry place. Handle them gently to avoid damage before use. Use the right amount and type of lubricant. Too much or too little can cause problems. Check your bearings often for noise, heat, or vibration.

• Lubricate bearings on a regular schedule.
• Watch for changes in temperature or sound.
• Use sensors to track vibration and heat if possible.
• Replace bearings before they fail to avoid machine stops.

Predictive maintenance uses sensors and data to warn you before a bearing fails. This helps you plan repairs and save money. TFL can help you set up a good maintenance plan and choose the best roller bearing for your needs.

You have learned how roller bearings support machines in many applications. Each type fits different jobs and helps you solve tough challenges in 2025. When you choose bearings, think about your applications and use a checklist to match your needs. Keep your bearings clean and well-lubricated for the best results in all applications. If you need help, TFL can guide you and answer your questions.

FAQ

What is the main difference between roller bearings and ball bearings?

Roller bearings use rollers for line contact. Ball bearings use balls for point contact. You get higher load capacity and better shock resistance with roller bearings. Ball bearings work better for high speeds and small misalignments.

How do you know when to replace a roller bearing?

You should listen for noise, feel for vibration, or check for heat. If you see damage or the machine runs rough, replace the bearing. Regular checks help you spot problems early.

How can you make roller bearings last longer?

Keep bearings clean and well-lubricated. Use the right lubricant for your machine. Check seals often. Store bearings in a dry place. Handle them with care to avoid damage.

What should you do if a bearing overheats?

• Stop the machine right away.
• Check the lubrication level.
• Inspect seals for leaks.
• Replace the bearing if needed.
• Ask TFL for expert help if you are unsure.
