Direct answer: Do not replace NSK 6203DW with FAG 6203-C-2HRS based on the 6203 dimensions alone. Confirm the exact NSK suffix and seal configuration first, then compare clearance, grease, speed, temperature, and application requirements with the FAG specification.
NSK 6203DW and FAG 6203-C-2HRS belong to the 6203 deep groove ball bearing series and use the same nominal boundary dimensions: 17 mm bore, 40 mm outside diameter, and 12 mm width. However, matching dimensions do not automatically make them direct replacements.
Before replacing one model with the other, verify the seal arrangement, internal clearance, grease specification, speed rating, temperature range, fit, and operating environment. This guide explains which details matter and what information to provide when requesting a replacement bearing.
Key Takeaways
- Both models have nominal dimensions of 17 × 40 × 12 mm.
- Matching dimensions confirm the basic mounting envelope, not complete interchangeability.
- The seal arrangement and manufacturer suffix must be confirmed from the product label or current datasheet.
- Internal clearance, grease, speed, temperature, fit, and load conditions can affect replacement suitability.
- VFD-related shaft current requires a separate electrical protection solution; changing between these standard 6203 bearings does not provide electrical insulation.

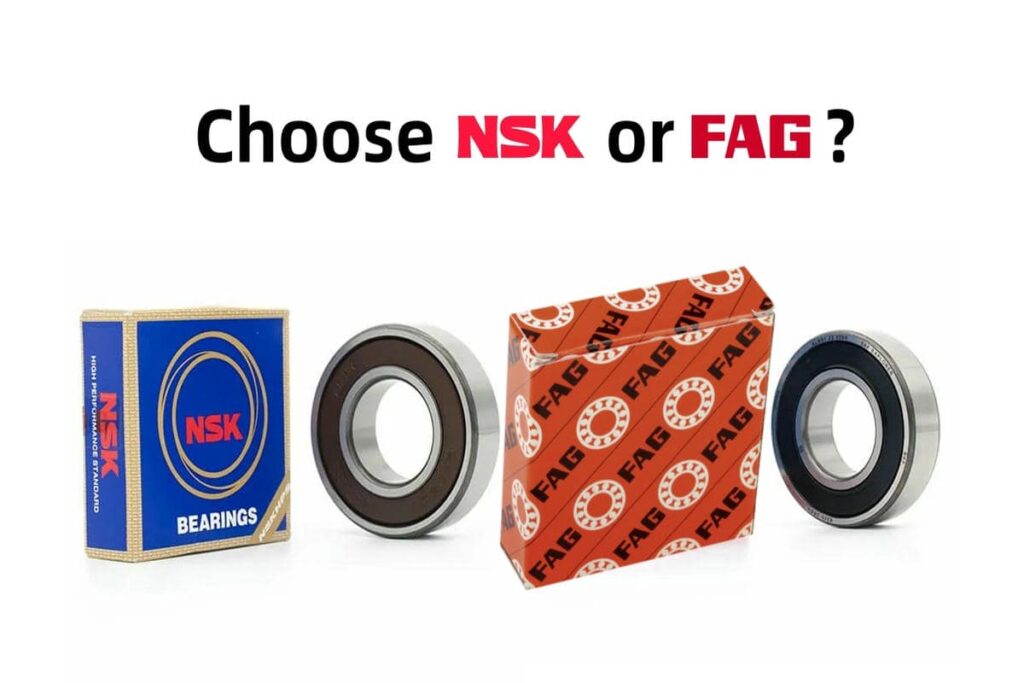

NSK 6203DW vs FAG 6203-C-2HRS: What Must Match?

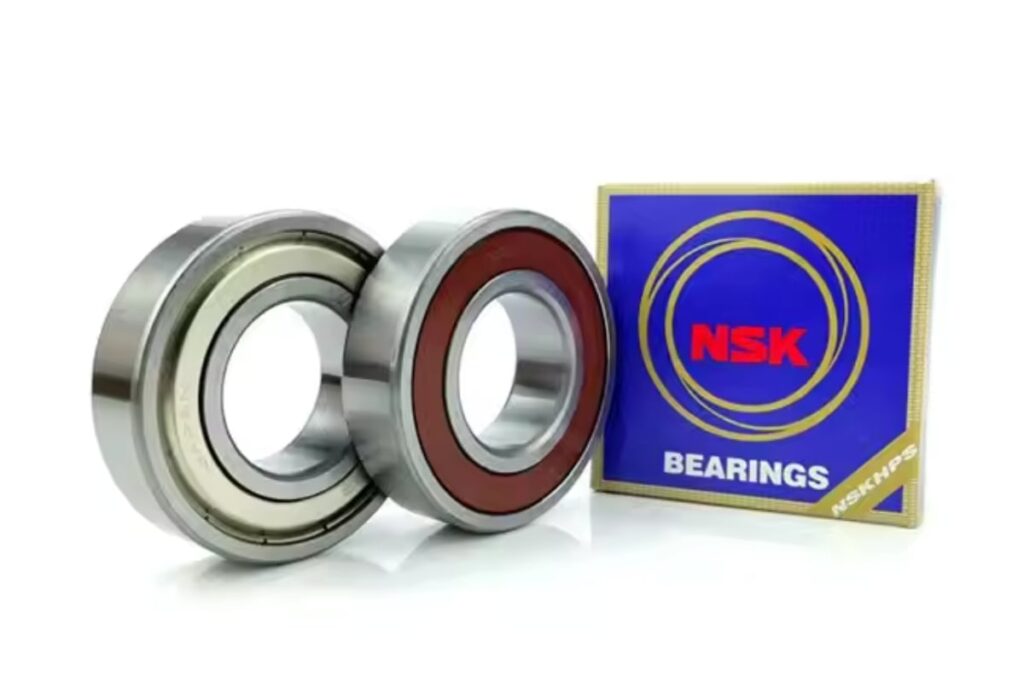

Both products are based on the 6203 deep groove ball bearing envelope, but the suffixes describe additional design details. Do not decode the NSK “DW” suffix using a generic cross-reference chart. Verify it from the NSK packaging, supplier datasheet, or equipment documentation for the exact market and product version.
| Verification item | NSK 6203DW | FAG 6203-C-2HRS | Replacement requirement |
|---|---|---|---|
| Bore | 17 mm | 17 mm | Must match the shaft seat |
| Outside diameter | 40 mm | 40 mm | Must match the housing bore |
| Width | 12 mm | 12 mm | Must match the available axial space |
| Seal arrangement | Verify the exact DW designation | Seals on both sides; verify the current FAG datasheet | Compare sealing, friction, and relubrication requirements |
| Internal clearance | Confirm the complete suffix | Do not interpret “C” as C3 clearance | Match Normal, C3, or other required clearance |
| Grease and temperature | Confirm product-specific data | Confirm product-specific data | Must suit speed, temperature, and service life |
| Interchangeability | Not established by dimensions alone | Verify all operating and suffix details before ordering | |
Product suffixes, grease specifications, speed limits, load ratings, and temperature ranges can vary by manufacturer, market, and product revision. Confirm the current manufacturer datasheet or packaging before approving a replacement.
Load Capacity and Durability
Load capacity shows how much weight a bearing can hold. Durability means the bearing lasts in tough conditions.
Both bearings belong to the 6203 deep groove ball bearing series and are primarily designed to support radial loads together with limited axial loads. Their suitability for a specific load depends on the current manufacturer ratings, shaft and housing fits, internal clearance, operating speed, and bearing arrangement.
If your machine faces stress often, focus on load and durability. Stronger bearings last longer and save money on repairs.
Friction and Efficiency
Friction affects how well your machine runs. Less friction means better energy use and performance. NSK’s 6203DW bearing uses special oils to lower friction. FAG bearings have smooth surfaces and perfect alignment for the same goal. Their “HRS” seals are also designed for low friction.
Note: Less friction helps machines work better and stay cooler. This makes bearings last longer.
Comparing NSK 6203DW and FAG 6203-C-2HRS Bearings
Material Quality and Manufacturing Standards
The materials used in bearings affect how long they last. Both NSK and FAG use strong metals to make durable bearings. Bearing steel and heat-treatment specifications may vary by manufacturer, production series, and market. When material traceability is important, request the current manufacturer datasheet, inspection documentation, or material certificate for the exact product supplied.
Both brands follow strict rules when making their bearings. FAG bearings have ISO9001 certification, showing they meet high-quality standards. NSK also uses careful methods to keep their bearings reliable.
Tip: Look at the materials and certifications before choosing a bearing. This helps ensure it works well and lasts longer.
Performance in High-Stress Applications
Machines under stress need bearings that can handle tough jobs. NSK 6203DW bearings are great for heavy loads and stay strong under pressure. Their design stops bending, even during hard use.

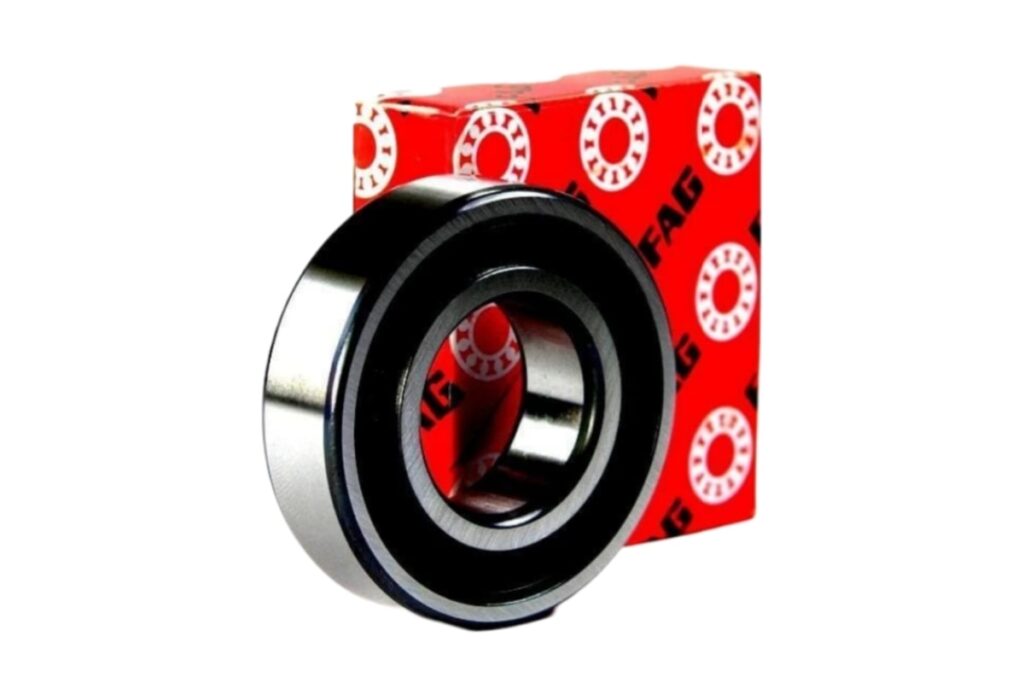

FAG 6203-C-2HRS bearings are made for hot and shaky environments. Their special materials and design, along with the 2HRS (two light-contact rubber seals), help them avoid breaking in tough conditions by providing excellent sealing while maintaining low friction.
If your machine faces stress often, think about what it needs. Performance under elevated temperature or vibration cannot be determined by brand alone. Buyers should compare the specified grease, seal material, internal clearance, speed limit, fit, and permissible temperature range for the exact bearing designation.
Longevity and Maintenance Requirements
How long a bearing lasts depends on its design and use.
NSK 6203DW bearings are built to last a long time with little upkeep. Their strong materials resist damage, so you won’t replace them often.
FAG 6203-C-2HRS bearings also last a long time. Their smooth design lowers friction, and the 2HRS double-seal arrangement provides robust protection against contaminants, keeping them cool and working longer.
Consumer Considerations: Price and Delivery Time
Comparing Prices of NSK and FAG Bearings
Price is important when picking between NSK and FAG bearings. Both brands make strong bearings for the 6203 series, but prices can vary. This depends on how they are made and where they are sold.
Pricing can vary with brand, seal configuration, clearance, quantity, origin, certification requirements, and current availability. Compare quotations using the complete bearing designation because a lower-priced 6203 bearing may not provide the same seal, grease, clearance, or documentation.
Tip: Check prices from different sellers before buying. This helps you save money while getting good quality.
Delivery Time and Stock Availability
Delivery time matters if your machine needs quick repairs. Fast delivery can stop expensive delays.
Lead time depends on the selected brand, suffix, quantity, warehouse location, and current inventory rather than the bearing’s production method. Confirm stock status and the estimated dispatch date when requesting a quotation.
Note: Always check stock and shipping details before ordering. This avoids delays and keeps your machines working well.
Need to Confirm a 6203 Bearing Replacement?
Send us the complete bearing number, suffixes, dimensions, quantity, operating speed, temperature, load direction, and application details. TFL will check suitable supply options and current availability.
Submit Your Bearing Inquiry
Why Think About TFL Bearings as Another Option?
Similar Quality to NSK and FAG
TFL supplies 6203-series bearing options for different purchasing requirements. Available products should be evaluated using their stated dimensions, seal arrangement, clearance, speed rating, documentation, and application conditions rather than being assumed equivalent based only on the 6203 designation. We use strong materials like chrome and stainless steel. These materials make them tough and long-lasting. TFL follows strict rules to make precise and smooth bearings. This helps them work well in many machines, from heavy tools to fast equipment.
When you compare TFL to NSK and FAG, they are very similar. TFL bearings reduce friction, which saves energy and keeps machines cooler. This makes them a good choice for machines that run a lot.
Tip: TFL bearings are a great mix of quality and price.
Affordable Prices
TFL Bearings cost less but still work really well. They are cheaper than NSK and FAG bearings, which is great for saving money. You get good performance without spending too much.
Even though they cost less, TFL bearings are strong and reliable. They last a long time, so you don’t need to replace them often. This saves you money on repairs over time.
Note: TFL bearings help you save money and keep machines running.
Quicker Delivery
TFL Bearings ship faster than NSK and FAG. Common models, like the 6203dw, can be sent in 48 hours. Most deliveries take 3 to 5 days, which is great for quick fixes.
- TFL Bearings ship common models in just 48 hours.
- Delivery takes 3–5 days, faster than many other brands.
This fast shipping reduces machine downtime and avoids delays. TFL’s delivery system gets bearings to you quickly, no matter where you are.
Tip: If you need bearings fast, TFL is a good choice.
Picking between NSK 6203DW and FAG 6203-C-2HRS bearings depends on your machine. NSK bearings are strong and last a long time. FAG bearings work better in heat or when there’s shaking. Both are precise and reliable, but choose based on your machine’s needs.
For a cheaper option, think about TFL bearings. We are as good as NSK and FAG but cost less. TFL bearings ship faster and work in many machines. Whether for factories or cars, TFL bearings are a dependable choice.
Frequently Asked Questions About 6203DW Replacement
Can NSK 6203DW directly replace FAG 6203-C-2HRS?
Not automatically. Although both bearings have nominal dimensions of 17 × 40 × 12 mm, their seals, internal clearance, grease, speed rating, temperature range, and complete suffix specifications must also meet the application requirements.
What should I verify before ordering a 6203DW replacement?
Verify the complete model number, dimensions, seal arrangement, internal clearance, shaft and housing fits, operating speed, temperature, load direction, grease specification, and contamination level.
Does the “C” in FAG 6203-C-2HRS mean C3 clearance?
No. The “C” in this designation should not be interpreted as C3 internal clearance. Check the complete FAG designation and confirm the required clearance separately.
What information should I send TFL for a quotation?
Send the complete bearing number and suffixes, clear product photos, dimensions or drawing, required quantity, speed, temperature, load direction, clearance, machine type, and operating environment. TFL can then check matching supply options and availability.
