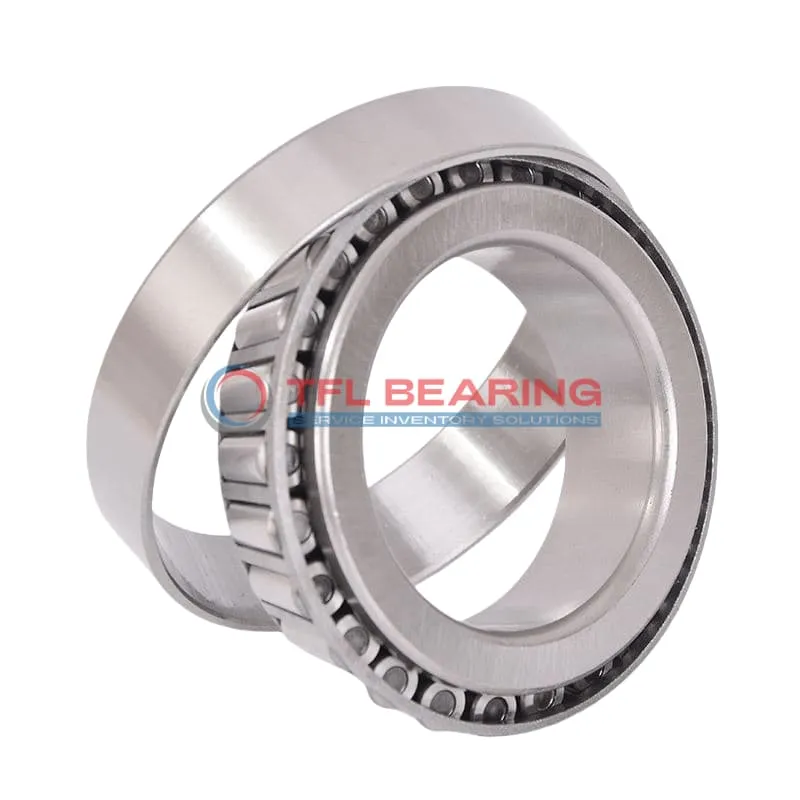

TS (Single Row Tapered Roller Bearings) (Imperial) M38549H-M38510

TS (Single Row Tapered Roller Bearings) (Imperial) M38549H-M38510

The M38549H-M38510 is a single-row tapered roller bearing with a 1.375″ bore and 2.625″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 16600 lbf radially and 2600 lbf thrust, suitable for demanding applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are common.

Weighing just 0.7 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number M38549H-M38510
  • Brand TFL
  • Interchangeable Timken
  • Size 1.375" x 2.625" x 0.8125"
  • Bore Dia 1.375"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6563"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8125"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.090"
  • Cone Frontface Backing Diameter 1.63"
  • Cone Backface Backing Diameter 1.91"
  • Cup Frontface Backing Diameter 2.46"
  • Cup Backface Backing Diameter 2.28"
  • Cage Cone Frontface Clearance 0.13"
  • Cage Cone Backface Clearance -0.01"
  • Effective Center Location -0.22"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number M38549H
  • Cup Part Number M38510
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series M38500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 16600 lbf
  • Static Radial Load 16400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4310 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2600 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.7 lb

Features

Performance Features of M38549H-M38510 Bearing

M38549H-M38510 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 16,600 lbf, ensuring reliable performance in demanding conditions.

The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

M38549H-M38510 Bearing requires lubrication, ensuring smooth operation over time.
Its standard radial clearance options provide flexibility for different applications.

Application

Industrial Uses of M38549H-M38510 Bearing
M38549H-M38510 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is M38549H-M38510 Bearing Used?
You’ll often find M38549H-M38510 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for American and British vehicle models.

Built for Heavy-Duty Use: M38549H-M38510 Bearing
M38549H-M38510 Bearing excels in industrial gearboxes, providing smooth operation under high loads. The steel cage adds extra strength, making it suitable for prolonged use in harsh conditions.

Automotive vs Aerospace: Applications of M38549H-M38510 Bearing
In automotive systems, M38549H-M38510 Bearing supports wheel assemblies, while in aerospace, it’s used in auxiliary gearboxes. Its ABEC-1 rating ensures consistent performance across both sectors.

Perfect Fit for Automation: M38549H-M38510 Bearing
M38549H-M38510 Bearing works well in automated conveyor systems, where its tapered rollers manage varying load directions. The open design allows for easy lubrication, reducing maintenance downtime.
