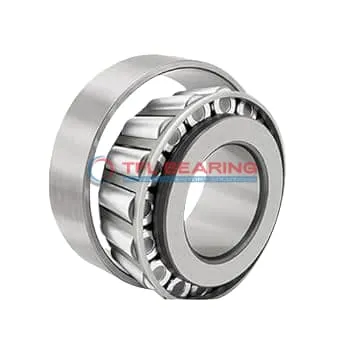

TS (Single Row Tapered Roller Bearings) (Imperial) L44642-L44610

TS (Single Row Tapered Roller Bearings) (Imperial) L44642-L44610

The L44642-L44610 is a single-row tapered roller bearing with a 1-inch bore and 1.98-inch outer diameter, crafted from durable chrome steel. It handles combined loads up to 8010 lbf and is designed for smooth operation in various conditions.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing works well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for applications like automotive or industrial machinery where combined loads are common.

Weighing just 0.3 lb, it’s lightweight yet sturdy for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number L44642-L44610
  • Brand TFL
  • Interchangeable Timken
  • Size 1" x 1.98" x 0.56"
  • Bore Dia 1"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 1.98"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.58"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.42"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.56"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 1.16"
  • Cone Backface Backing Diameter 1.42"
  • Cup Frontface Backing Diameter 1.87"
  • Cup Backface Backing Diameter 1.75"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.13"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number L44642
  • Cup Part Number L44610
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series L44600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 8010 lbf
  • Static Radial Load 7400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 2080 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1330 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.3 lb

Features

Why Choose L44642-L44610 Bearing for Precision Tasks?

L44642-L44610 Bearing features a single-row tapered roller design, ideal for handling combined radial and thrust loads.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The bearing’s dynamic radial load capacity reaches 8010 lbf, providing reliable performance under heavy loads.
With an ABEC-1 rating, it offers precision and smooth operation for various industrial uses.

L44642-L44610 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its standard radial clearance options (C3/C4/C5) allow for flexibility in different operating conditions.

The steel cage maintains roller alignment, reducing friction and extending service life.
Easy to install and maintain, this bearing is a practical choice for machinery requiring consistent performance.

Application

Industrial Uses of L44642-L44610 Bearing
L44642-L44610 Bearing is commonly used in industrial gearboxes, where its tapered roller design efficiently handles combined radial and thrust loads. The chrome steel construction ensures durability in demanding environments like mining equipment.

What Makes L44642-L44610 Bearing a Preferred Choice?
In automotive applications, L44642-L44610 Bearing supports wheel hubs and differential systems, thanks to its precise inch sizing and reliable performance. The steel cage adds strength while maintaining smooth rotation under heavy loads.

Built for Heavy-Duty Use: L44642-L44610 Bearing
For construction machinery, L44642-L44610 Bearing excels in conveyor systems and heavy-duty axles, where its ABEC-1 rating balances performance and cost-effectiveness. The standard radial clearance allows for easy installation in various setups.

Automotive vs Aerospace: Applications of L44642-L44610 Bearing
While L44642-L44610 Bearing is popular in truck transmissions, its temperature range also makes it suitable for aerospace ground support equipment. The open seal design simplifies lubrication in both sectors.

Essential Roles of L44642-L44610 Bearing
In agricultural machinery, L44642-L44610 Bearing withstands dusty conditions while maintaining performance in combine harvesters. Its interchangeable Timken design ensures easy replacement across different brands.
