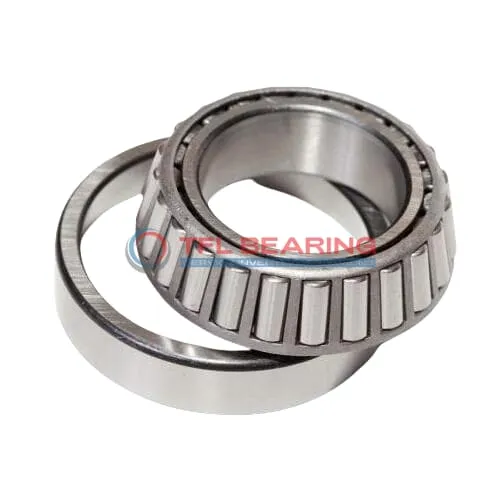

TS (Single Row Tapered Roller Bearings) (Imperial) HM903241-HM903216

TS (Single Row Tapered Roller Bearings) (Imperial) HM903241-HM903216

The HM903241-HM903216 is a single-row tapered roller bearing with a 1.5″ bore and 3.875″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 24000 lbf radially and 7870 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for use in heavy machinery or automotive systems where combined loads are common.

Weighing 2.6 lb, it offers a balance of strength and manageability. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM903241-HM903216
  • Brand TFL
  • Interchangeable Timken
  • Size 1.5" x 3.875" x 1.2188"
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2188"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.13"
  • Cone Backface Backing Diameter 2.4"
  • Cup Frontface Backing Diameter 3.66"
  • Cup Backface Backing Diameter 3.23"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.16"
  • Effective Center Location 0.02"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HM903241
  • Cup Part Number HM903216
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HM903200
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 24000 lbf
  • Static Radial Load 29700 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6210 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7870 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.6 lb

Features

How Does HM903241-HM903216 Bearing Handle Combined Loads?

HM903241-HM903216 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 24000 lbf, making it suitable for demanding industrial applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environmental conditions.

What Makes HM903241-HM903216 Bearing Suitable for High-Temperature Applications?

HM903241-HM903216 Bearing operates efficiently in temperatures ranging from -30° to 110°C, ensuring consistent performance.
The chrome steel construction provides durability and resistance to thermal expansion.
Its open design allows for easy lubrication, maintaining smooth operation under high temperatures.
The standard radial clearance options further enhance its adaptability to different thermal conditions.

Engineered for Precision: HM903241-HM903216 Bearing

HM903241-HM903216 Bearing features precise cone and cup dimensions, ensuring accurate alignment in machinery.
The tapered roller design distributes loads evenly, improving efficiency and reducing wear.
With an ABEC-1 rating, it meets standard precision requirements for industrial applications.
The effective center location of 0.02″ enhances stability during operation.

Steel vs Ceramic Bearings: Strengths of HM903241-HM903216 Bearing

HM903241-HM903216 Bearing uses chrome steel for both rings and rollers, offering excellent strength and durability.
This material choice ensures reliable performance under heavy combined loads up to 24000 lbf.
The steel cage provides robust support, maintaining roller alignment even in demanding conditions.
Its compatibility with standard lubrication methods simplifies maintenance and extends service life.

Application

Industrial Uses of HM903241-HM903216 Bearing
HM903241-HM903216 Bearing is commonly used in heavy machinery like construction equipment and agricultural vehicles, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

Where Is HM903241-HM903216 Bearing Used?
You’ll often find HM903241-HM903216 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a good fit for American and British machinery.

Built for Heavy-Duty Use: HM903241-HM903216 Bearing
HM903241-HM903216 Bearing excels in industrial gearboxes, providing reliable performance under high radial and thrust loads. The steel cage adds extra strength, making it suitable for long-term use.

Automotive vs Aerospace: Applications of HM903241-HM903216 Bearing
In automotive systems, HM903241-HM903216 Bearing supports wheel assemblies, while in aerospace, it’s used in landing gear mechanisms. Its ABEC-1 rating ensures consistent performance in both fields.

Perfect Fit for Automation: HM903241-HM903216 Bearing
HM903241-HM903216 Bearing works well in automated conveyor systems, where its tapered rollers reduce friction. The open design allows for easy lubrication, keeping operations smooth.
