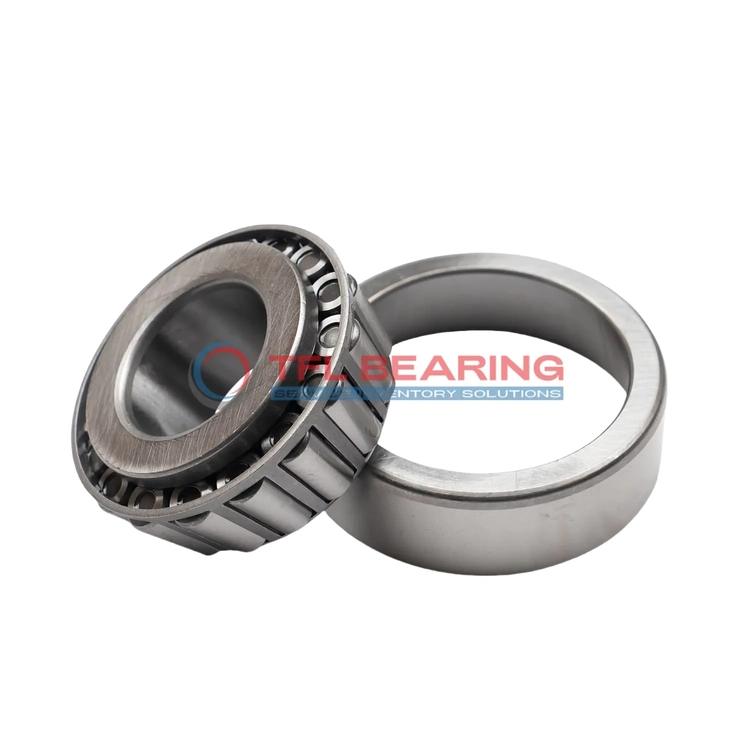

TS (Single Row Tapered Roller Bearings) (Imperial) HH221434-HH221410XX

TS (Single Row Tapered Roller Bearings) (Imperial) HH221434-HH221410XX

The HH221434-HH221410XX is a single-row tapered roller bearing with a 3.5″ bore and 7.5″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 120,000 lbf radially and 17,800 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for applications like heavy machinery or automotive systems where combined loads are common.

Weighing 17.1 lb, it’s built to last with standard radial clearance options. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH221434-HH221410XX
  • Brand TFL
  • Interchangeable Timken
  • Size 3.5" x 7.5" x 2.2501"
  • Bore Dia 3.5"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 7.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.265"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.8125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.2501"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.310"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.8"
  • Cone Backface Backing Diameter 4.72"
  • Cup Frontface Backing Diameter 7.06"
  • Cup Backface Backing Diameter 6.73"
  • Cage Cone Frontface Clearance 0.16"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location -0.59"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HH221434
  • Cup Part Number HH221410XX
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HH221400
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 120000 lbf
  • Static Radial Load 156000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 31100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 17800 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 17.1 lb

Features

Performance Features of HH221434-HH221410XX Bearing

HH221434-HH221410XX Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 120,000 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

How Does HH221434-HH221410XX Bearing Handle Combined Loads?

HH221434-HH221410XX Bearing’s tapered roller design efficiently manages both radial and thrust loads.
The chrome steel construction provides durability, while the steel cage maintains roller positioning.
Its dynamic thrust rating of 17,800 lbf ensures consistent performance under stress.
The standard radial clearance allows for smooth operation in diverse conditions.

Designed for Durability: HH221434-HH221410XX Bearing

HH221434-HH221410XX Bearing features a single-row construction, optimised for reliability and longevity.
The chrome steel components resist wear, even under high dynamic radial loads of 120,000 lbf.
Its effective centre location of -0.59″ ensures stable performance in demanding setups.
With an ABEC-1 rating, it balances precision and durability for industrial applications.

Application

Industrial Uses of HH221434-HH221410XX Bearing
HH221434-HH221410XX Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

What Makes HH221434-HH221410XX Bearing a Preferred Choice?
In automotive applications, HH221434-HH221410XX Bearing supports wheel hubs and axles, providing reliable performance under high radial and thrust loads. Its imperial sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: HH221434-HH221410XX Bearing
For industrial gearboxes, HH221434-HH221410XX Bearing offers smooth operation and long service life. The steel cage adds strength, making it suitable for high-load scenarios.

Automotive vs Aerospace: Applications of HH221434-HH221410XX Bearing
In automotive systems, HH221434-HH221410XX Bearing excels in transmissions and differentials. While in aerospace, its precision and load capacity make it useful in landing gear mechanisms.

Essential Roles of HH221434-HH221410XX Bearing
HH221434-HH221410XX Bearing is vital in mining equipment, where its robust design withstands extreme conditions. The standard radial clearance ensures consistent performance over time.
