TS (Single Row Tapered Roller Bearings) (Imperial) H247535-H247510

TS (Single Row Tapered Roller Bearings) (Imperial) H247535-H247510

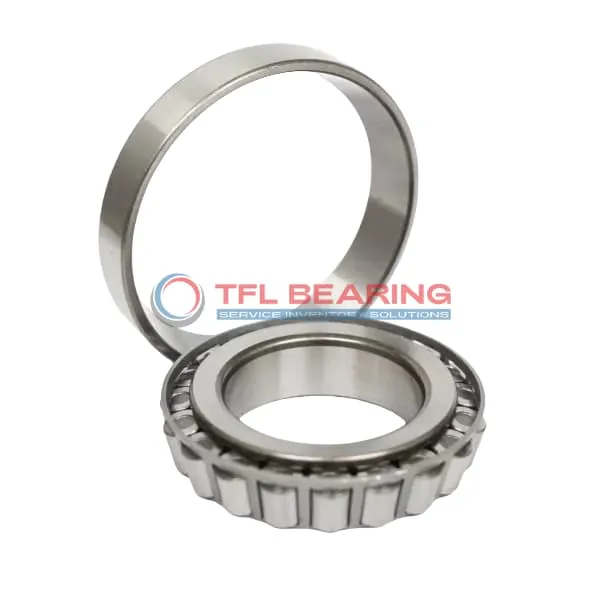

The H247535-H247510 is a single-row tapered roller bearing with a 7.875″ bore and 15.125″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 377,000 lbf radially and 55,600 lbf thrust, suitable for heavy-duty applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or large equipment where high radial and thrust loads are common.

Weighing 133.3 lb, it’s built to handle demanding environments. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number H247535-H247510
  • Brand TFL
  • Interchangeable Timken
  • Size 7.875" x 15.125" x 4.4375"
  • Bore Dia 7.875"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 15.125"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 4.4375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 3.5625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 4.4375"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.250"
  • Cone Frontface Backing Diameter 10.24"
  • Cone Backface Backing Diameter 9.49"
  • Cup Frontface Backing Diameter 14.32"
  • Cup Backface Backing Diameter 13.62"
  • Cage Cone Frontface Clearance 0.16"
  • Cage Cone Backface Clearance 0.37"
  • Effective Center Location -1.1"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number H247535
  • Cup Part Number H247510
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series H247500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 377000 lbf
  • Static Radial Load 699000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 97600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 55600 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 133.300 lb

Features

How Does H247535-H247510 Bearing Handle Combined Loads?

H247535-H247510 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 377,000 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

What Makes H247535-H247510 Bearing Suitable for Heavy-Duty Applications?

H247535-H247510 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction enhances durability, supporting static radial loads up to 699,000 lbf.
Its standard radial clearance allows for smooth operation, even under high stress.
The open seal design simplifies maintenance, making it a practical choice for industrial use.

Structural Advantages of H247535-H247510 Bearing

H247535-H247510 Bearing’s precise cone and cup dimensions ensure accurate alignment during installation.
The tapered roller design distributes loads evenly, reducing wear and improving efficiency.
With an ABEC-1 rating, it balances precision and affordability for general applications.
The steel cage provides stability, keeping rollers in place during high-speed operation.

Why Choose H247535-H247510 Bearing for Industrial Use?

H247535-H247510 Bearing’s robust construction handles dynamic thrust loads up to 55,600 lbf.
Its inch-sized dimensions make it compatible with imperial system machinery.
The chrome steel materials resist wear, ensuring long service life in demanding conditions.
Regular lubrication maintains smooth performance, reducing downtime and maintenance costs.

Application

Industrial Uses of H247535-H247510 Bearing
H247535-H247510 Bearing is commonly used in heavy-duty industrial equipment like mining machinery and large conveyor systems, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in harsh operating conditions.

In automotive applications, H247535-H247510 Bearing supports large vehicle components such as truck axles and differential systems. Its high dynamic radial load capacity makes it reliable for long-haul transport and off-road vehicles.

For construction machinery, H247535-H247510 Bearing’s robust design is ideal for cranes and excavators, where stability under heavy loads is essential. The standard radial clearance allows for smooth operation in varying temperature conditions.

Where Is H247535-H247510 Bearing Used?
H247535-H247510 Bearing finds its place in agricultural equipment like tractors and harvesters, thanks to its ability to withstand dirt and debris. The open seal design simplifies maintenance in field conditions.

It’s also a go-to choice for railway applications, particularly in freight car wheel assemblies. The bearing’s high static radial load rating ensures safety and longevity under constant heavy use.

Built for Heavy-Duty Use: H247535-H247510 Bearing
H247535-H247510 Bearing excels in steel mills and foundries, where extreme loads and temperatures are common. The steel cage provides added strength, making it suitable for continuous operation.

In wind turbine systems, H247535-H247510 Bearing’s tapered rollers manage the varying loads from rotor blades. Its inch sizing ensures compatibility with many North American turbine designs.

Automotive vs Aerospace: Applications of H247535-H247510 Bearing
In automotive settings, H247535-H247510 Bearing is often found in heavy trucks and buses, where its combined load capacity is crucial. The ABEC-1 rating balances precision and cost-effectiveness for these applications.

For aerospace ground equipment, H247535-H247510 Bearing supports aircraft tow tractors and loading vehicles. Its temperature range suits both indoor hangars and outdoor tarmac operations.
