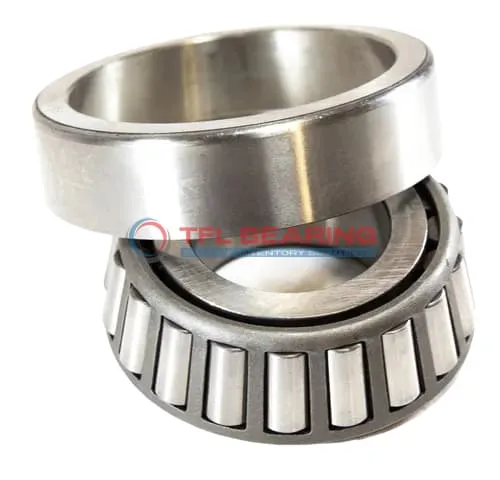

TS (Single Row Tapered Roller Bearings) (Imperial) EE114081-114160

TS (Single Row Tapered Roller Bearings) (Imperial) EE114081-114160

The EE114081-114160 is a single-row tapered roller bearing with an 8.0015″ bore and 16″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 274,000 lbf radially and 97,000 lbf thrust, making it a robust choice for heavy-duty applications.

Its pin-type cage design ensures smooth operation, while the open seal allows for easy lubrication. The bearing performs well in temperatures ranging from -30°C to 110°C, suitable for various industrial environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in machinery like gearboxes or construction equipment where high load capacity is needed.

Weighing 103.30 lb, it’s a substantial unit designed for durability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EE114081-114160
  • Brand TFL
  • Interchangeable Timken
  • Size 8.0015" x 16" x 3.625"
  • Bore Dia 8.0015"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 16"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 3.375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.25"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.625"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.250"
  • Cone Frontface Backing Diameter 10.51"
  • Cone Backface Backing Diameter 9.69"
  • Cup Frontface Backing Diameter 14.78"
  • Cup Backface Backing Diameter 13.74"
  • Cage Cone Frontface Clearance 0.44"
  • Cage Cone Backface Clearance 0.74"
  • Effective Center Location 0.98"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number EE114081
  • Cup Part Number 114160
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 114000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Pin-Type
  • Dynamic Radial Load 274000 lbf
  • Static Radial Load 328000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 71000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 97000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 103.30 lb

Features

Performance Features of EE114081-114160 Bearing

EE114081-114160 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 274,000 lbf, ensuring reliable performance in heavy-duty applications.
The pin-type cage keeps the rollers aligned, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

How Is EE114081-114160 Bearing Engineered for Reliability?

EE114081-114160 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction enhances durability, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 97,000 lbf makes it suitable for demanding industrial applications.
The bearing requires lubrication, but its robust design minimises maintenance needs.

Built for Durability: EE114081-114160 Bearing

EE114081-114160 Bearing’s chrome steel components resist wear, even under high radial and thrust loads.
The tapered roller design distributes stress evenly, improving fatigue life and reliability.
With an ABEC-1 rating, it balances precision and cost-effectiveness for various applications.
The standard cup type simplifies installation, reducing downtime during maintenance.

Steel vs Ceramic Bearings: Strengths of EE114081-114160 Bearing

EE114081-114160 Bearing uses chrome steel for both rings and rollers, providing excellent strength-to-weight ratio.
This material choice ensures better load capacity compared to ceramic alternatives in most industrial settings.
The bearing’s 103.30 lb weight reflects its sturdy construction for heavy-load applications.
Its inch-sized dimensions make it compatible with imperial system machinery without conversion needs.

What Ensures Smooth Operation in EE114081-114160 Bearing?

EE114081-114160 Bearing’s precise cone and cup alignment maintains optimal roller contact under load.
The effective center location of 0.98″ helps distribute forces evenly across the bearing surfaces.
Standard radial clearance options (including C3/C4/C5) allow for flexibility in different applications.
Pin-type cage design prevents roller skewing, ensuring consistent performance throughout its service life.

Application

Industrial Uses of EE114081-114160 Bearing
EE114081-114160 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability even in tough working conditions.

In automotive applications, EE114081-114160 Bearing supports large axles and wheel hubs, providing stability under heavy loads. Its imperial sizing makes it a reliable choice for American and British vehicle manufacturers.

For industrial conveyor systems, EE114081-114160 Bearing’s pin-type cage design reduces friction, enhancing efficiency in high-load scenarios. The standard radial clearance also allows for smooth operation in varied temperature ranges.

Where Is EE114081-114160 Bearing Used?
EE114081-114160 Bearing finds its place in agricultural machinery, particularly in tractors and harvesters, where its robust design withstands constant vibration and shock loads. The open seal type simplifies maintenance in dusty environments.

In railway applications, EE114081-114160 Bearing ensures reliable performance in freight car axles, thanks to its high dynamic radial load capacity. The tapered rollers distribute stress evenly, prolonging service life.

Built for Heavy-Duty Use: EE114081-114160 Bearing
EE114081-114160 Bearing excels in steel mills, where extreme loads and temperatures are common. Its chrome steel rollers and rings resist wear, reducing downtime for replacements.

For wind turbine gearboxes, EE114081-114160 Bearing’s combined load capability makes it a practical choice. The ABEC-1 rating ensures consistent performance without unnecessary precision costs.

Automotive vs Aerospace: Applications of EE114081-114160 Bearing
In automotive drivetrains, EE114081-114160 Bearing handles high torque and axial forces, making it ideal for trucks and buses. The inch measurements align with standard repair parts.

For aerospace ground equipment, EE114081-114160 Bearing supports heavy load-bearing structures like cargo loaders. Its temperature range suits both indoor and outdoor use.
