TS (Single Row Tapered Roller Bearings) (Imperial) A6062-A6162

TS (Single Row Tapered Roller Bearings) (Imperial) A6062-A6162

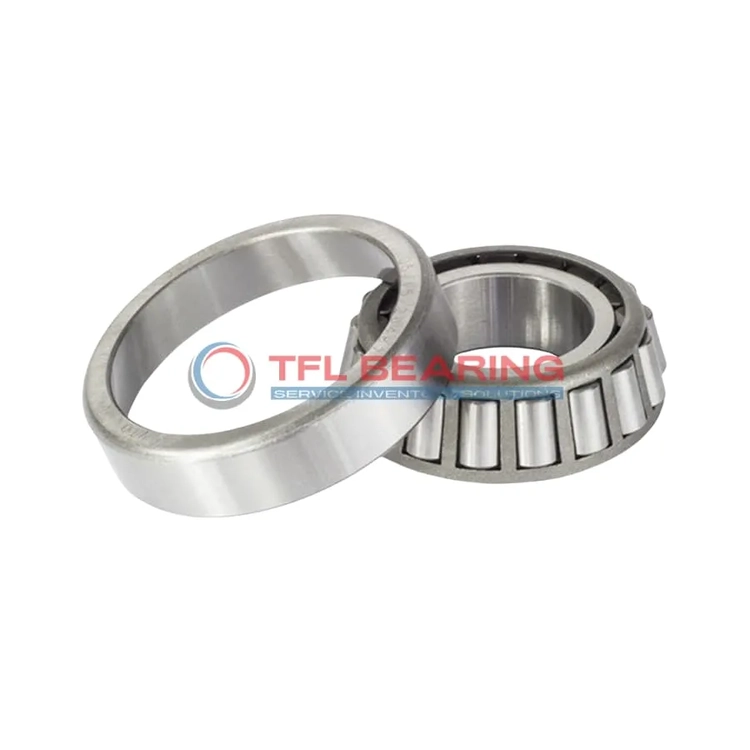

The A6062-A6162 is a single-row tapered roller bearing with a 0.625″ bore and 1.625″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 3020 lbf and is designed for smooth operation in various conditions.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing can withstand temperatures from -30°C to 110°C, making it versatile for different environments.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for applications like automotive axles or industrial gearboxes where combined loads are common.

Weighing just 0.200 lb, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe choice for various industries. The standard radial clearance ensures easy installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number A6062-A6162
  • Brand TFL
  • Interchangeable Timken
  • Size 0.625" x 1.625" x 0.4687"
  • Bore Dia 0.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 1.625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.4391"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.3437"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.4687"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.050"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 0.81"
  • Cone Backface Backing Diameter 0.87"
  • Cup Frontface Backing Diameter 1.48"
  • Cup Backface Backing Diameter 1.36"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.06"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number A6062
  • Cup Part Number A6162
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series A6000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 3020 lbf
  • Static Radial Load 2770 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 782 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 705 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.200 lb

Features

How Is A6062-A6162 Bearing Engineered for Reliability?

A6062-A6162 Bearing features a single row tapered roller design, ideal for handling combined loads with precision.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.
The open seal type allows for easy lubrication, maintaining smooth operation over time.
With a dynamic radial load capacity of 3020 lbf, it delivers reliable performance under stress.

Structural Advantages of A6062-A6162 Bearing

A6062-A6162 Bearing’s tapered rollers are designed to distribute loads evenly, reducing stress on individual components.
The steel cage keeps the rollers aligned, ensuring consistent performance and longer service life.
Its standard radial clearance makes it versatile for various industrial applications.
The bearing operates efficiently within a temperature range of -30° to 110 °C.

Why Choose A6062-A6162 Bearing for Precision Tasks?

A6062-A6162 Bearing’s precise engineering allows it to handle both radial and thrust loads effectively.
The chrome steel rollers and rings provide excellent strength and resistance to wear.
Its ABEC-1 rating ensures consistent quality and performance in precision applications.
The bearing’s design simplifies maintenance, reducing downtime and operational costs.

Application

Industrial Uses of A6062-A6162 Bearing
A6062-A6162 Bearing is commonly used in industrial gearboxes, where its tapered roller design handles combined radial and thrust loads efficiently. The chrome steel construction ensures durability in demanding environments like mining equipment.

In automotive applications, A6062-A6162 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a straightforward replacement for Timken equivalents in older vehicles.

For heavy machinery, A6062-A6162 Bearing’s open design simplifies lubrication, extending service life in construction equipment. The standard radial clearance offers flexibility for different operational conditions.

Where Is A6062-A6162 Bearing Used?
You’ll find A6062-A6162 Bearing in agricultural machinery, particularly in tractor transmissions where robust load capacity is essential. Its steel cage adds stability during high-torque operations.

In conveyor systems, A6062-A6162 Bearing supports rollers, ensuring smooth material handling. The ABEC-1 rating balances precision and cost-effectiveness for general industrial use.

Built for Heavy-Duty Use: A6062-A6162 Bearing
A6062-A6162 Bearing excels in forestry equipment, withstanding shock loads from log handling. The tapered rollers distribute stress evenly, reducing wear over time.

For pump systems, A6062-A6162 Bearing’s temperature range (-30° to 110°C) suits both indoor and outdoor installations. Its compatibility with Timken designs simplifies maintenance.

Light-Duty vs Heavy-Duty: Best Uses for A6062-A6162 Bearing
In light-duty applications like small electric motors, A6062-A6162 Bearing provides sufficient load capacity without over-engineering. The standard lubrication requirement keeps maintenance simple.

For heavy-duty uses such as crane slewing rings, A6062-A6162 Bearing’s dynamic radial load rating (3020 lbf) ensures reliable operation. The chrome steel rollers resist deformation under constant stress.
