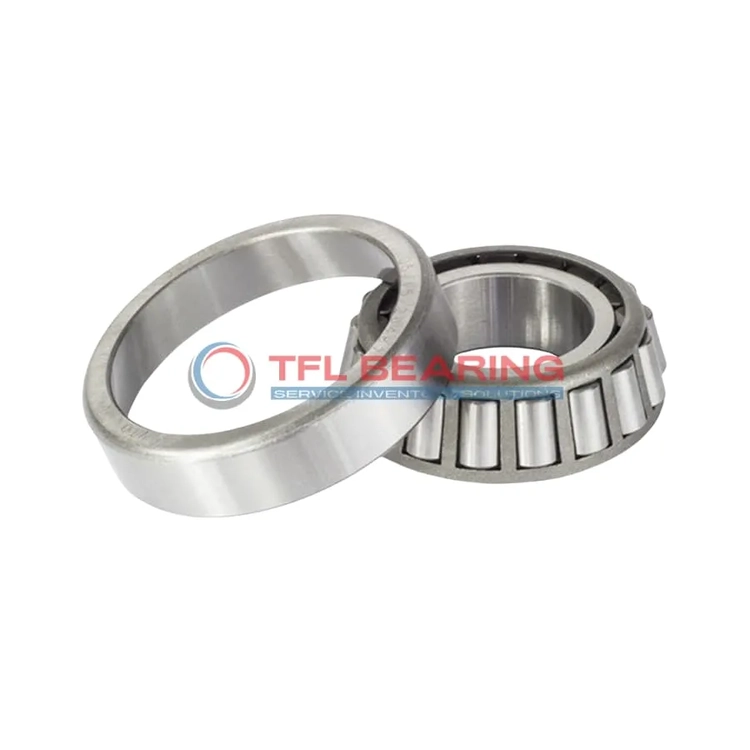

TS (Single Row Tapered Roller Bearings) (Imperial) A2037-A2126

TS (Single Row Tapered Roller Bearings) (Imperial) A2037-A2126

The A2037-A2126 is a single-row tapered roller bearing with a 0.375″ bore and 1.2595″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 2430 lbf and is designed for smooth operation in various conditions.

Its open construction allows easy lubrication, while the steel cage ensures durability. The bearing works efficiently in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Suitable for applications like automotive or industrial machinery where combined loads are common.

Weighing just 0.100 lb, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number A2037-A2126
  • Brand TFL
  • Interchangeable Timken
  • Size 0.375" x 1.2595" x 0.394"
  • Bore Dia 0.375"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 1.2595"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.4246"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.3125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.394"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.050"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 0.53"
  • Cone Backface Backing Diameter 0.59"
  • Cup Frontface Backing Diameter 1.18"
  • Cup Backface Backing Diameter 1.02"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance -0.03"
  • Effective Center Location -0.12"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number A2037
  • Cup Part Number A2126
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series A2000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 2430 lbf
  • Static Radial Load 2070 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 630 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 437 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.100 lb

Features

How Does A2037-A2126 Bearing Handle Combined Loads?

A2037-A2126 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 2430 lbf, ensuring reliable performance in various applications.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

Application

Industrial Uses of A2037-A2126 Bearing
A2037-A2126 Bearing works well in industrial gearboxes, handling both radial and thrust loads with ease. Its chrome steel construction ensures durability in demanding environments like conveyor systems.

What Makes A2037-A2126 Bearing a Preferred Choice?
In automotive applications, A2037-A2126 Bearing supports wheel hubs and transmissions, thanks to its tapered roller design. The inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: A2037-A2126 Bearing
A2037-A2126 Bearing is ideal for agricultural machinery, where its combined load capacity handles rough terrain. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of A2037-A2126 Bearing
While commonly used in car suspensions, A2037-A2126 Bearing also fits light aircraft landing gear due to its reliable performance. The standard radial clearance ensures smooth operation in both fields.

Perfect Fit for Automation: A2037-A2126 Bearing
A2037-A2126 Bearing suits robotic arms, providing precise movement under varying loads. Its steel cage offers stability, making it a dependable choice for automated systems.
