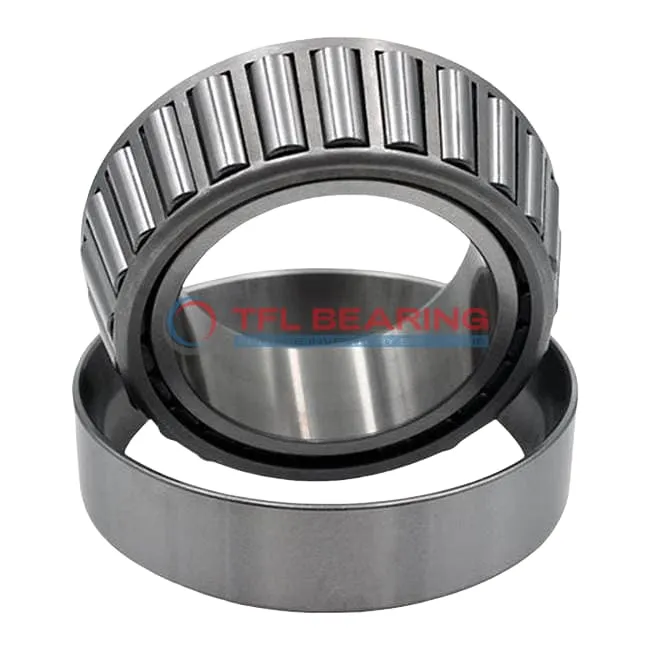

TS (Single Row Tapered Roller Bearings) (Imperial) 6386V-6320

TS (Single Row Tapered Roller Bearings) (Imperial) 6386V-6320

The 6386V-6320 is a single-row tapered roller bearing with a 2.625″ bore and 5.3447″ outer diameter, crafted from robust chrome steel. It handles combined loads up to 85600 lbf radially and 12300 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in industrial machinery or automotive systems where combined loads are common.

Weighing 7.8 lb, it’s built to last with standard radial clearance options. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6386V-6320
  • Brand TFL
  • Interchangeable Timken
  • Size 2.625" x 5.3447" x 2.125"
  • Bore Dia 2.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.3447"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.205"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.125"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.170"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.67"
  • Cone Backface Backing Diameter 3.43"
  • Cup Frontface Backing Diameter 5.00"
  • Cup Backface Backing Diameter 4.61"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.13"
  • Effective Center Location -0.76"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 6386V
  • Cup Part Number 6320
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 6300
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 85600 lbf
  • Static Radial Load 90900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 22200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 12300 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 7.8 lb

Features

Performance Features of 6386V-6320 Bearing

6386V-6320 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 85600 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is 6386V-6320 Bearing Engineered for Reliability?

6386V-6320 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction enhances durability, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 12300 lbf makes it suitable for demanding industrial uses.
The open design allows for easy lubrication, maintaining performance over time.

Built for Durability: 6386V-6320 Bearing

6386V-6320 Bearing’s tapered roller design efficiently distributes loads, reducing stress on components.
The precise cone and cup width tolerances ensure proper fit and alignment during installation.
With a static radial load capacity of 90900 lbf, it handles heavy loads with ease.
The steel cage provides stability, contributing to the bearing’s long service life.

Steel vs Ceramic Bearings: Strengths of 6386V-6320 Bearing

6386V-6320 Bearing uses chrome steel for both rings and rollers, offering excellent strength and wear resistance.
Its ABEC-1 rating ensures consistent performance in various industrial applications.
The standard radial clearance allows for thermal expansion, maintaining reliability under changing conditions.
Weighing 7.8 lb, it balances durability with manageable installation requirements.

Application

Industrial Uses of 6386V-6320 Bearing
The 6386V-6320 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively.
Its chrome steel construction ensures durability in harsh environments, making it a reliable choice for long-term use.

Where Is 6386V-6320 Bearing Used?
You’ll often find 6386V-6320 Bearing in automotive applications, particularly in wheel hubs and differential systems, where its high load capacity is essential.
The imperial sizing makes it a perfect fit for North American vehicle models, ensuring easy compatibility.

Built for Heavy-Duty Use: 6386V-6320 Bearing
In industrial conveyor systems, 6386V-6320 Bearing provides smooth operation under heavy radial and thrust loads.
The steel cage adds extra strength, making it suitable for high-stress environments.

Automotive vs Aerospace: Applications of 6386V-6320 Bearing
While 6386V-6320 Bearing excels in automotive wheel assemblies, it’s also found in aerospace landing gear components due to its robust design.
The tapered rollers distribute loads evenly, ensuring reliable performance in both sectors.

Key Fields for 6386V-6320 Bearing
In agricultural machinery, 6386V-6320 Bearing supports equipment like tractors and harvesters, where its durability is crucial.
The standard radial clearance allows for smooth operation even in dusty or uneven terrain.
