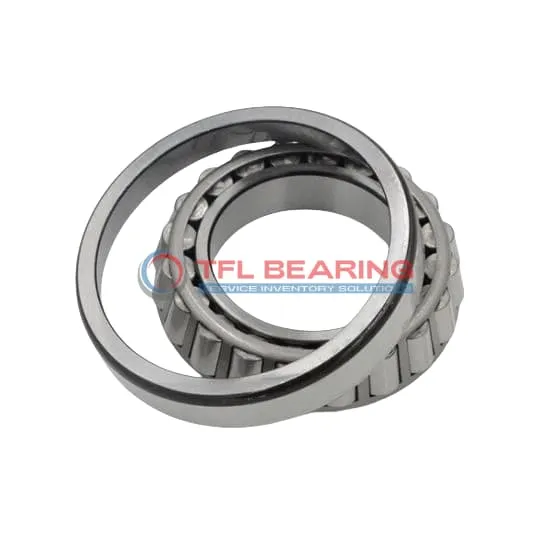

TS (Single Row Tapered Roller Bearings) (Imperial) 598X-592AX

TS (Single Row Tapered Roller Bearings) (Imperial) 598X-592AX

The 598X-592AX is a single-row tapered roller bearing with a 3.625″ bore and 5.82″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 48,600 lbf radially and 9,530 lbf thrust, making it a versatile choice.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. It’s well-suited for heavy-duty applications like gearboxes or industrial machinery.

Weighing 4.9 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 598X-592AX
  • Brand TFL
  • Interchangeable Timken
  • Size 3.625" x 5.82" x 1.4063"
  • Bore Dia 3.625"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 5.82"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.43"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0312"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4063"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.76"
  • Cone Backface Backing Diameter 4.21"
  • Cup Frontface Backing Diameter 5.63"
  • Cup Backface Backing Diameter 5.24"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location -0.1"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 598X
  • Cup Part Number 592AX
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 595
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 48600 lbf
  • Static Radial Load 71600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9530 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.900 lb

Features

Performance Features of 598X-592AX Bearing

598X-592AX Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 48,600 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and enhancing durability.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 598X-592AX Bearing Engineered for Reliability?

598X-592AX Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides excellent wear resistance, extending its service life.
Its dynamic thrust rating of 9,530 lbf ensures consistent performance under demanding conditions.
Standard radial clearance options allow for flexibility in different applications.

Built for Durability: 598X-592AX Bearing

598X-592AX Bearing’s robust chrome steel components withstand heavy radial and thrust loads.
The precise cone and cup design ensures smooth operation, even at high speeds.
With a static radial load capacity of 71,600 lbf, it delivers reliable performance.
Its ABEC-1 rating confirms consistent quality and precision.

Steel vs Ceramic Bearings: Strengths of 598X-592AX Bearing

598X-592AX Bearing uses chrome steel for both rings and rollers, offering excellent strength.
This material choice provides better cost-efficiency compared to ceramic alternatives.
The bearing’s 90 million revolutions dynamic rating ensures long-term reliability.
Its standard lubrication requirement simplifies maintenance procedures.

Application

Industrial Uses of 598X-592AX Bearing
The 598X-592AX Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in tough working conditions.

Where Is 598X-592AX Bearing Used?
You’ll often find 598X-592AX Bearing in automotive applications, particularly in wheel hubs and differential systems. Its precise inch sizing makes it a reliable choice for vehicles requiring consistent performance under heavy loads.

Built for Heavy-Duty Use: 598X-592AX Bearing
In industrial gearboxes, 598X-592AX Bearing provides smooth operation thanks to its tapered rollers and steel cage. The open design allows for easy lubrication, extending its service life in high-demand environments.

Automotive vs Aerospace: Applications of 598X-592AX Bearing
While 598X-592AX Bearing is popular in trucks and off-road vehicles for its load capacity, it’s also suitable for aerospace ground support equipment. Its ABEC-1 rating ensures reliable performance in both sectors.

Key Fields for 598X-592AX Bearing
598X-592AX Bearing is ideal for agricultural machinery, where its robust design handles uneven loads and harsh conditions. The standard radial clearance offers flexibility for various operational needs.
