TS (Single Row Tapered Roller Bearings) (Imperial) 59162-59429RB

TS (Single Row Tapered Roller Bearings) (Imperial) 59162-59429RB

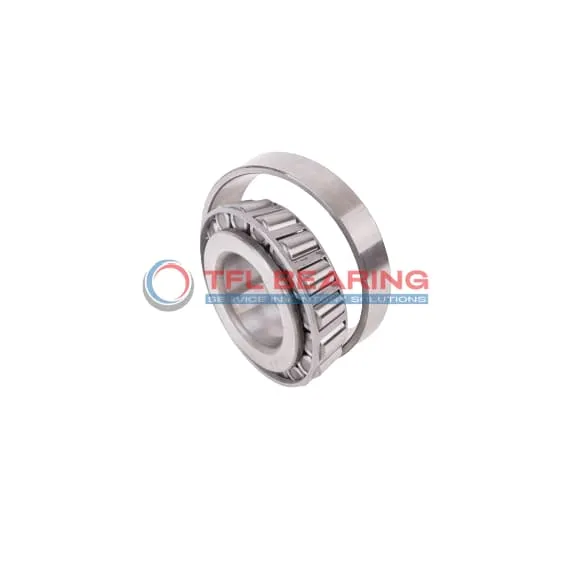

The 59162-59429RB is a single-row tapered roller bearing with a 1.625″ bore and 4.29″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 45500 lbf radially and 8110 lbf thrust, suitable for demanding applications.

Its open design simplifies lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy machinery or automotive systems where combined loads are common.

Weighing 3.8 lb, it offers a robust build for its size. Compliant with RoHS and REACH standards for safe and reliable use.

The standard radial clearance and ABEC-1 rating ensure consistent performance. Its tapered roller design provides stability under varying load conditions.

Perfect for industrial settings requiring long-lasting, high-load capacity bearings. Easy to maintain and fits standard applications with ease.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 59162-59429RB
  • Brand TFL
  • Interchangeable Timken
  • Size 1.625" x 4.29" x 1.3751"
  • Bore Dia 1.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.29"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.4375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.3751"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.13"
  • Cone Backface Backing Diameter 2.2"
  • Cup Frontface Backing Diameter 4.02"
  • Cup Backface Backing Diameter 3.66"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.11"
  • Effective Center Location -0.38"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 59162
  • Cup Part Number 59429RB
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 59000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 45500 lbf
  • Static Radial Load 45400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11800 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8110 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.8 lb

Features

Performance Features of 59162-59429RB Bearing

59162-59429RB Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 45,500 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is 59162-59429RB Bearing Engineered for Reliability?

59162-59429RB Bearing features a single-row tapered roller design, optimised for combined load applications.
The chrome steel construction provides durability, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 8,110 lbf at 90 million revolutions highlights its long-lasting performance.
This bearing is interchangeable with Timken models, offering flexibility for replacements.

Built for Durability: 59162-59429RB Bearing

59162-59429RB Bearing’s chrome steel rollers and rings are designed to withstand heavy radial and thrust loads.
The steel cage ensures proper roller spacing, minimising wear and maintaining efficiency.
With a static radial load capacity of 45,400 lbf, it delivers reliable performance in tough conditions.
Its ABEC-1 rating confirms consistent precision for industrial applications.

Steel vs Ceramic Bearings: Strengths of 59162-59429RB Bearing

59162-59429RB Bearing uses chrome steel for both rollers and rings, providing excellent strength and durability.
This material choice ensures reliable performance under high dynamic radial loads up to 45,500 lbf.
The steel cage further enhances stability, making it suitable for heavy-duty applications.
Its standard radial clearance allows for smooth operation in various industrial settings.

Application

Industrial Uses of 59162-59429RB Bearing
59162-59429RB Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 59162-59429RB Bearing supports wheel hubs and drivetrains, providing reliable performance under varying loads. Its imperial sizing makes it a preferred choice for North American vehicle models.

For industrial conveyor systems, 59162-59429RB Bearing’s open design allows for easy lubrication, extending service life in high-use scenarios. The steel cage adds stability, making it suitable for continuous operation.

What Makes 59162-59429RB Bearing a Preferred Choice?
59162-59429RB Bearing excels in agricultural machinery, where its robust design withstands dirt and debris. The tapered rollers distribute loads evenly, reducing wear over time.

In mining equipment, 59162-59429RB Bearing’s high dynamic radial load capacity ensures reliable performance under extreme conditions. Its standard radial clearance options provide flexibility for different applications.

Built for Heavy-Duty Use: 59162-59429RB Bearing
59162-59429RB Bearing is ideal for forestry machinery, where its combined load handling capability is essential. The chrome steel rollers offer excellent resistance to impact and fatigue.

In material handling systems, 59162-59429RB Bearing’s open design simplifies maintenance, reducing downtime. Its ABEC-1 rating ensures consistent performance in general industrial applications.

Automotive vs Aerospace: Applications of 59162-59429RB Bearing
59162-59429RB Bearing is widely used in truck wheel hubs, where its durability and load capacity are critical. The imperial sizing ensures compatibility with many commercial vehicles.

In aerospace ground support equipment, 59162-59429RB Bearing’s temperature range and reliability make it a practical choice. However, its primary strength lies in heavy industrial applications.
