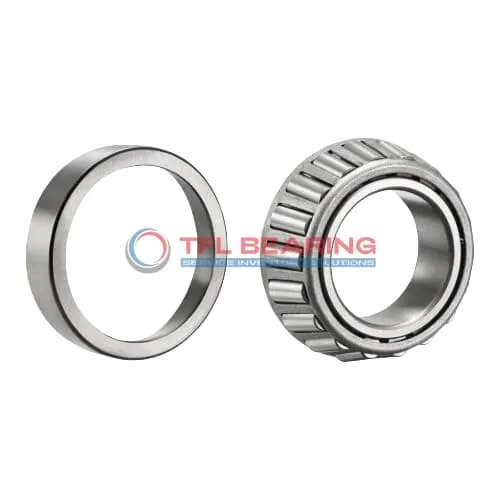

TS (Single Row Tapered Roller Bearings) (Imperial) 535-533X

TS (Single Row Tapered Roller Bearings) (Imperial) 535-533X

The 535-533X is a single-row tapered roller bearing with a 1.75″ bore and 4.3307″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 38700 lbf radially and 5090 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery, automotive systems, or industrial equipment where combined loads are present.

Weighing 3.9 lb, it balances strength and manageability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

The standard radial clearance can be adjusted to C3, C4, or C5 as needed, providing flexibility for different operational requirements. Its tapered roller design ensures efficient load distribution and long service life.

Perfect for applications requiring precise alignment and robust performance, such as gearboxes or conveyor systems. The ABEC-1 rating confirms its consistent quality for general industrial use.

Maintenance is straightforward thanks to its open structure, allowing regular greasing to keep it running smoothly. The chrome steel rollers and rings resist wear, even under heavy loads.

A practical choice for engineers and maintenance teams looking for a dependable bearing that combines strength, ease of use, and adaptability. Its imperial sizing makes it a familiar option for users in regions preferring inch measurements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 535-533X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 4.3307" x 1.5001"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.3307"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.455"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.1875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.5001"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.13"
  • Cone Backface Backing Diameter 2.36"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.74"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 535
  • Cup Part Number 533X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 535
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 38700 lbf
  • Static Radial Load 46200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 10000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.9 lb

Features

Performance Features of 535-533X Bearing

535-533X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 38,700 lbf, ensuring reliable performance in demanding conditions.

The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

535-533X Bearing requires lubrication but offers standard radial clearance for versatile applications.
Its ABEC-1 rating ensures consistent precision for industrial use.

Application

Industrial Uses of 535-533X Bearing
535-533X Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined radial and thrust loads efficiently. The chrome steel construction ensures durability even in rugged conditions.

In automotive applications, 535-533X Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a straightforward replacement for Timken equivalents in older vehicles.

For industrial conveyor systems, 535-533X Bearing’s open design simplifies lubrication and maintenance, extending service life. The standard radial clearance offers flexibility for different operational demands.

Where Is 535-533X Bearing Used?
You’ll often find 535-533X Bearing in mining equipment, where its robust design withstands high loads and harsh environments. The steel cage adds extra strength, making it suitable for continuous operation.

In railway applications, 535-533X Bearing supports axle boxes, ensuring smooth movement under heavy loads. Its ABEC-1 rating provides a balance of precision and cost-effectiveness for these demanding uses.

Built for Heavy-Duty Use: 535-533X Bearing
535-533X Bearing excels in forestry machinery, where its tapered rollers manage uneven loads from cutting and lifting operations. The inch measurements ensure compatibility with North American equipment standards.

In material handling systems, 535-533X Bearing’s dynamic load capacity keeps conveyors and lifts running smoothly. The chrome steel rollers reduce wear, even with frequent starts and stops.

Automotive vs Aerospace: Applications of 535-533X Bearing
In automotive settings, 535-533X Bearing is ideal for drivetrain components, offering reliable performance in cars and trucks. Its imperial sizing simplifies repairs for mechanics working with older models.

For aerospace ground support equipment, 535-533X Bearing handles the heavy loads of aircraft tugs and loading platforms. The temperature range ensures functionality in diverse weather conditions.
