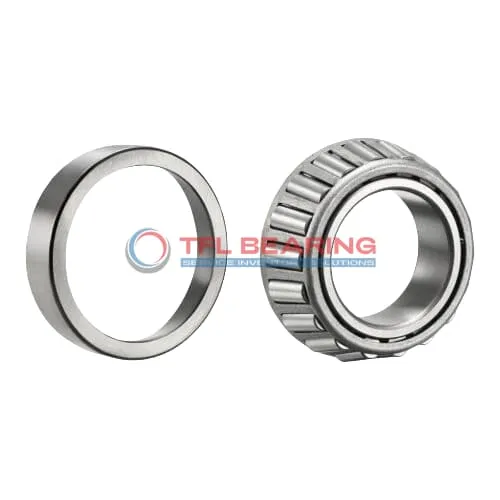

TS (Single Row Tapered Roller Bearings) (Imperial) 535-532X

TS (Single Row Tapered Roller Bearings) (Imperial) 535-532X

The 535-532X is a single-row tapered roller bearing with a 1.75″ bore and 4.25″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 38700 lbf radially and 5090 lbf thrust-wise, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, making it versatile for various environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy machinery or automotive uses where combined loads are common.

Weighing 3.7 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 535-532X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 4.25" x 1.4376"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.455"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4376"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.13"
  • Cone Backface Backing Diameter 2.36"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.70"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 535
  • Cup Part Number 532X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 535
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 38700 lbf
  • Static Radial Load 46200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 10000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.7 lb

Features

How Does 535-532X Bearing Handle Combined Loads?

535-532X Bearing is crafted with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 38,700 lbf, making it suitable for demanding industrial applications.
The steel cage maintains roller alignment, ensuring smooth operation and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Why Choose 535-532X Bearing for Precision Tasks?

535-532X Bearing features precise tolerances, with bore diameter tolerance of +0.005″ to 0 for accurate fitting.
Its tapered roller design ensures efficient load distribution, enhancing performance in combined load scenarios.
The open seal type allows for easy lubrication, maintaining optimal operation over time.
ABEC-1 rating confirms its reliability for precision engineering applications.

Built for Durability: 535-532X Bearing

535-532X Bearing’s chrome steel construction provides excellent resistance to wear and fatigue.
Its static radial load capacity of 46,200 lbf ensures long-term reliability under heavy loads.
The standard radial clearance option offers flexibility for different operational needs.
Weighing just 3.7 lb, it balances strength with manageable size for various installations.

Steel vs Ceramic Bearings: Strengths of 535-532X Bearing

535-532X Bearing uses high-quality chrome steel for both rings and rollers, ensuring durability and cost-effectiveness.
The steel cage design enhances stability, making it ideal for high-load applications.
Unlike ceramic options, it provides proven performance in standard industrial environments.
Its compatibility with Timken bearings adds to its versatility and ease of replacement.

Performance Features of 535-532X Bearing

535-532X Bearing’s single row tapered design efficiently handles combined radial and thrust loads.
The effective center location of -0.48″ optimises load distribution for smoother operation.
Standard cup type design simplifies installation and maintenance processes.
Compliant with RoHS and REACH standards, it meets modern environmental and safety requirements.

Application

Industrial Uses of 535-532X Bearing
535-532X Bearing is commonly used in heavy machinery like construction equipment and mining gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

In automotive applications, 535-532X Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it a convenient choice for American and British vehicle models.

For industrial conveyor systems, 535-532X Bearing’s open design allows easy lubrication, extending its service life in high-use environments. The steel cage adds extra strength, making it suitable for continuous operation.

What Makes 535-532X Bearing a Preferred Choice?
535-532X Bearing stands out in agricultural machinery, such as tractors and harvesters, due to its ability to manage radial and thrust loads simultaneously. The standard radial clearance offers flexibility for different setups.

In material handling equipment, 535-532X Bearing’s robust design ensures smooth operation under heavy loads. Its compatibility with Timken models makes it a versatile option for maintenance and replacements.

Built for Heavy-Duty Use: 535-532X Bearing
535-532X Bearing excels in forestry equipment, where its tapered rollers handle uneven loads and shocks effectively. The ABEC-1 rating ensures consistent performance without overcomplicating the design.

For railway applications, 535-532X Bearing’s temperature range and lubrication requirements make it suitable for both freight and passenger trains. Its weight and dimensions balance strength and ease of installation.

Automotive vs Aerospace: Applications of 535-532X Bearing
In automotive systems, 535-532X Bearing is often found in drivetrains, offering reliable support for high-torque situations. The inch measurements simplify integration into existing designs.

For aerospace ground support equipment, 535-532X Bearing’s static load capacity ensures stability during maintenance operations. Its chrome steel components resist wear, even with frequent use.
