TS (Single Row Tapered Roller Bearings) (Imperial) 53176-53387

TS (Single Row Tapered Roller Bearings) (Imperial) 53176-53387

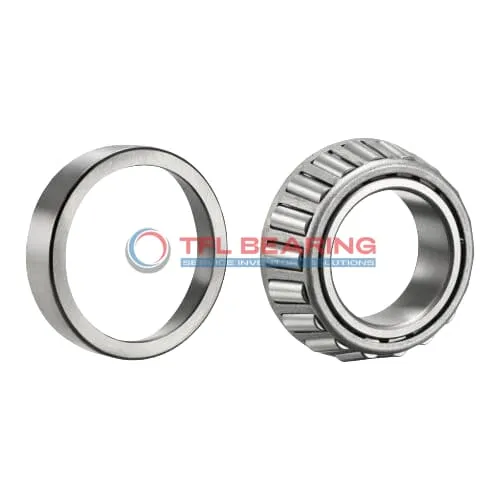

The 53176-53387 is a single-row tapered roller bearing with a 1.75″ bore and 3.875″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 26700 lbf radially and 8760 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 2.2 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 53176-53387
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 3.875" x 1.2188"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1142"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.8125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2188"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.050"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.07"
  • Cone Backface Backing Diameter 2.32"
  • Cup Frontface Backing Diameter 3.62"
  • Cup Backface Backing Diameter 3.23"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.19"
  • Effective Center Location -0.01"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 53176
  • Cup Part Number 53387
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 53000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 26700 lbf
  • Static Radial Load 23400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6920 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8760 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.2 lb

Features

Performance Features of 53176-53387 Bearing

53176-53387 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 26,700 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Why Choose 53176-53387 Bearing for Precision Tasks?

53176-53387 Bearing features precise cone and cup width tolerances, ensuring accurate performance.
The tapered roller design distributes loads evenly, enhancing stability and reducing wear.
Its ABEC-1 rating guarantees consistent quality for precision applications.
The open design allows for easy lubrication, maintaining smooth operation over time.

Engineered for Reliability: 53176-53387 Bearing

53176-53387 Bearing’s single-row construction provides robust support for combined loads.
Chrome steel materials resist wear, ensuring long service life even under demanding conditions.
The standard radial clearance option offers flexibility for different operational needs.
With a weight of 2.2 lb, it balances durability and ease of handling.

How Does 53176-53387 Bearing Reduce Friction?

53176-53387 Bearing’s tapered rollers and steel cage minimise friction during operation.
The precise alignment of components ensures smooth rotation under heavy loads.
Its effective lubrication system further reduces friction, enhancing efficiency.
The design also helps distribute loads evenly, preventing premature wear.

Application

Industrial Uses of 53176-53387 Bearing
53176-53387 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

In automotive applications, 53176-53387 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a convenient choice for North American vehicle models.

For industrial fans and pumps, 53176-53387 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, reducing wear over time.

Where Is 53176-53387 Bearing Used?
53176-53387 Bearing is often found in conveyor systems, where its ability to manage radial and thrust loads keeps operations smooth. The standard radial clearance offers flexibility for different installation needs.

In mining equipment, 53176-53387 Bearing’s robust design withstands harsh environments, ensuring consistent performance. The ABEC-1 rating provides a balance of precision and affordability for industrial use.

Built for Heavy-Duty Use: 53176-53387 Bearing
53176-53387 Bearing excels in applications like gearboxes and drivetrains, where its tapered rollers distribute loads evenly. The chrome steel rollers and rings enhance longevity under stress.

For forestry machinery, 53176-53387 Bearing’s resistance to shock loads makes it a dependable choice. The steel cage maintains roller alignment, even in high-vibration settings.

Automotive vs Aerospace: Applications of 53176-53387 Bearing
In automotive systems, 53176-53387 Bearing supports wheel and transmission components, offering reliability for everyday driving. Its imperial measurements align with standard vehicle designs.

For aerospace ground equipment, 53176-53387 Bearing handles heavy loads in tow tractors and loading platforms. The temperature range ensures performance in varying weather conditions.
