TS (Single Row Tapered Roller Bearings) (Imperial) 53162-53387

TS (Single Row Tapered Roller Bearings) (Imperial) 53162-53387

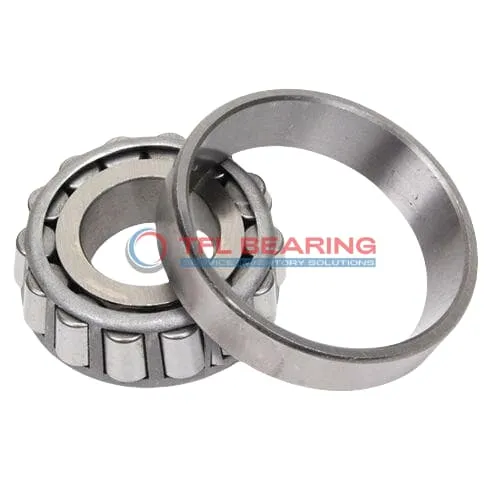

The 53162-53387 is a single-row tapered roller bearing with a 1.625″ bore and 3.875″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 26700 lbf radially and 8760 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or automotive systems where combined loads are common.

Weighing 2.3 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 53162-53387
  • Brand TFL
  • Interchangeable Timken
  • Size 1.625" x 3.875" x 1.2188"
  • Bore Dia 1.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1142"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.8125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2188"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.07"
  • Cone Backface Backing Diameter 2.24"
  • Cup Frontface Backing Diameter 3.62"
  • Cup Backface Backing Diameter 3.23"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.19"
  • Effective Center Location -0.01"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 53162
  • Cup Part Number 53387
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 53000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 26700 lbf
  • Static Radial Load 23400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6920 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8760 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.3 lb

Features

Performance Features of 53162-53387 Bearing

53162-53387 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 26,700 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Does 53162-53387 Bearing Reduce Friction?

53162-53387 Bearing’s tapered roller design minimises friction, ensuring smooth operation under combined loads.
The chrome steel construction provides excellent wear resistance, extending its service life.
Proper lubrication further reduces friction, maintaining efficiency over time.
Its standard radial clearance options allow for optimal performance in different applications.

Engineered for Precision: 53162-53387 Bearing

53162-53387 Bearing features precise dimensions, with bore and outer diameter tolerances tightly controlled.
The ABEC-1 rating ensures consistent performance for applications requiring reliable precision.
Its effective center location of -0.01″ contributes to accurate alignment in assemblies.
The bearing’s design balances load capacity with operational smoothness.

Steel vs Ceramic Bearings: Strengths of 53162-53387 Bearing

53162-53387 Bearing uses chrome steel for both rings and rollers, providing excellent strength and durability.
This material choice makes it more cost-effective than ceramic options while maintaining high performance.
The steel construction handles heavy loads well, with a static radial load capacity of 23,400 lbf.
It’s a practical choice for industrial applications where reliability matters.

Application

Industrial Uses of 53162-53387 Bearing
53162-53387 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 53162-53387 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a preferred choice for North American vehicle models.

For industrial fans and pumps, 53162-53387 Bearing offers smooth operation thanks to its standard radial clearance. The steel cage adds strength, making it suitable for continuous use in high-temperature settings.

Where Is 53162-53387 Bearing Used?
53162-53387 Bearing can be found in agricultural machinery, such as tractors and harvesters, where its robust design withstands rough conditions. The open seal type allows for easy lubrication maintenance.

In conveyor systems, 53162-53387 Bearing ensures efficient material handling with its ability to manage both radial and thrust loads. The ABEC-1 rating provides a balance of precision and affordability for general industrial use.

Built for Heavy-Duty Use: 53162-53387 Bearing
53162-53387 Bearing excels in mining equipment, where its high dynamic radial load capacity is crucial. The tapered rollers distribute stress evenly, extending bearing life.

For railway applications, 53162-53387 Bearing supports axle boxes, offering stability and reducing wear over time. Its temperature range of -30° to 110°C ensures performance in diverse climates.

Automotive vs Aerospace: Applications of 53162-53387 Bearing
In automotive systems, 53162-53387 Bearing is ideal for transmissions, handling high torque with ease. The inch measurements align with standard US automotive components.

For aerospace ground equipment, 53162-53387 Bearing provides reliable support in loading mechanisms. Its compliance with RoHS and REACH standards makes it suitable for environmentally sensitive applications.
