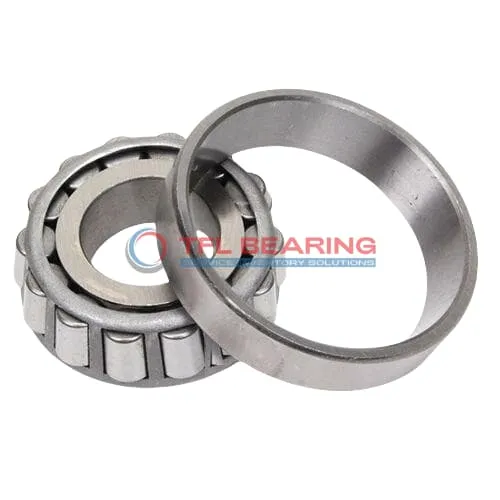

TS (Single Row Tapered Roller Bearings) (Imperial) 53162-53377

TS (Single Row Tapered Roller Bearings) (Imperial) 53162-53377

This single-row tapered roller bearing has a 1.625″ bore and 3.75″ outer diameter, made from sturdy chrome steel for long-lasting use. It handles combined loads up to 26700 lbf radially and 8760 lbf thrust, suitable for heavy-duty applications.

The open design allows easy lubrication, while the steel cage ensures smooth operation. With a standard radial clearance, it works well in temperatures from -30°C to 110°C.

Interchangeable with Timken bearings, it’s a practical choice for replacements in machinery or vehicles. The bearing weighs 2.1 lb, offering a good balance of strength and manageability.

Ideal for industrial equipment or automotive systems where combined loads are common. Compliant with RoHS and REACH standards for safe use in various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 53162-53377
  • Brand TFL
  • Interchangeable Timken
  • Size 1.625" x 3.75" x 1.2187"
  • Bore Dia 1.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.75"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1142"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.8125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2187"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.090"
  • Cone Frontface Backing Diameter 2.07"
  • Cone Backface Backing Diameter 2.24"
  • Cup Frontface Backing Diameter 3.54"
  • Cup Backface Backing Diameter 3.15"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.19"
  • Effective Center Location -0.01"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 53162
  • Cup Part Number 53377
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 53000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 26700 lbf
  • Static Radial Load 23400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6920 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8760 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.1 lb

Features

Engineered for Precision: 53162-53377 Bearing

53162-53377 Bearing features a single row tapered roller design, ideal for handling combined loads with ease.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The dynamic radial load capacity of 26700 lbf makes it suitable for heavy-duty industrial use.
With a temperature range of -30° to 110°C, it performs reliably in various environmental conditions.

53162-53377 Bearing’s standard radial clearance allows for smooth operation and easy installation.
The steel cage maintains roller alignment, enhancing performance and extending service life.

Application

Industrial Uses of 53162-53377 Bearing
53162-53377 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads efficiently. The inch sizing makes it a straightforward fit for North American industrial applications.

In automotive settings, 53162-53377 Bearing supports wheel hubs and drivetrain components, offering reliable performance under varying loads. Its chrome steel construction ensures durability even in demanding conditions.

For agricultural machinery, 53162-53377 Bearing’s open design simplifies maintenance in dusty environments. The standard radial clearance provides flexibility for different operational needs.

Where Is 53162-53377 Bearing Used?
53162-53377 Bearing finds its place in conveyor systems, where its tapered rollers manage both radial and axial loads smoothly. The steel cage adds robustness for continuous operation.

In mining equipment, 53162-53377 Bearing’s high dynamic load capacity makes it suitable for heavy-duty applications. Its ABEC-1 rating ensures consistent performance without overcomplicating precision needs.

Built for Heavy-Duty Use: 53162-53377 Bearing
53162-53377 Bearing excels in gearboxes, where its combined load capability keeps operations running smoothly. The chrome steel rollers resist wear, extending service life.

For forestry machinery, 53162-53377 Bearing’s temperature range handles both cold and moderately hot environments. Its standard lubrication requirement is easy to manage in field conditions.

Automotive vs Aerospace: Applications of 53162-53377 Bearing
In automotive drivetrains, 53162-53377 Bearing’s inch sizing and load capacity make it a practical choice. The open design allows for straightforward lubrication checks.

For aerospace ground equipment, 53162-53377 Bearing’s reliability supports maintenance vehicles and loading systems. Its weight is balanced for both performance and ease of handling.
