TS (Single Row Tapered Roller Bearings) (Imperial) 53162-53375

TS (Single Row Tapered Roller Bearings) (Imperial) 53162-53375

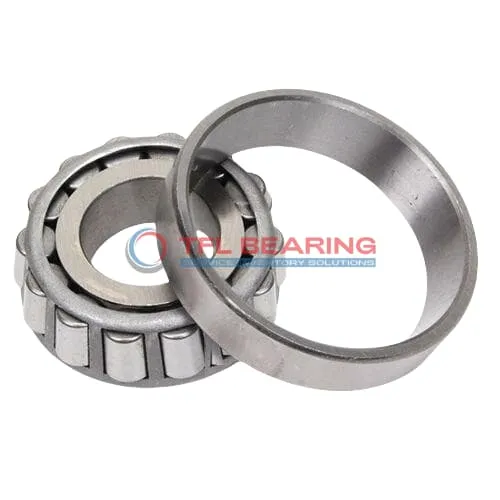

The 53162-53375 is a single-row tapered roller bearing with a 1.625″ bore and 3.75″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 26700 lbf radially and 8760 lbf in thrust, making it versatile for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like vehicle axles or machinery where both radial and thrust loads are present.

Weighing 2.2 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 53162-53375
  • Brand TFL
  • Interchangeable Timken
  • Size 1.625" x 3.75" x 1.2188"
  • Bore Dia 1.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.75"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1142"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.8125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2188"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.07"
  • Cone Backface Backing Diameter 2.24"
  • Cup Frontface Backing Diameter 3.54"
  • Cup Backface Backing Diameter 3.19"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.19"
  • Effective Center Location -0.01"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 53162
  • Cup Part Number 53375
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 53000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 26700 lbf
  • Static Radial Load 23400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6920 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8760 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.2 lb

Features

Performance Features of 53162-53375 Bearing

53162-53375 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 26,700 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is 53162-53375 Bearing Engineered for Reliability?

53162-53375 Bearing features a single-row tapered roller design, ideal for handling both radial and thrust loads.
The chrome steel construction enhances durability, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 8,760 lbf (Ca90) makes it suitable for heavy-duty applications.
The open design allows for easy lubrication, maintaining performance over time.

Built for Durability: 53162-53375 Bearing

53162-53375 Bearing’s tapered roller design provides excellent load distribution, reducing wear.
The chrome steel components resist corrosion, ensuring long service life even in tough conditions.
With a static radial load capacity of 23,400 lbf, it handles high-stress applications reliably.
Its ABEC-1 rating ensures consistent precision and performance.

Steel vs Ceramic Bearings: Strengths of 53162-53375 Bearing

53162-53375 Bearing uses chrome steel for both rollers and rings, offering a balance of strength and affordability.
The steel cage ensures stable roller movement, enhancing efficiency and reducing maintenance needs.
With a dynamic radial rating (C90) of 6,920 lbf, it delivers reliable performance under load.
The standard radial clearance option provides flexibility for various applications.

Application

Common Applications of 53162-53375 Bearing
53162-53375 Bearing is widely used in industrial machinery, especially in heavy-duty equipment like gearboxes and large conveyor systems. Its tapered roller design handles combined loads efficiently, making it suitable for rough operating conditions.

In automotive applications, 53162-53375 Bearing supports wheel hubs and differential systems, where its durability ensures long service life. The imperial sizing makes it a convenient choice for American-made vehicles and machinery.

For construction equipment, 53162-53375 Bearing’s chrome steel construction provides reliable performance in cranes and excavators. The open design allows for easy lubrication, which is essential in dusty or high-load environments.

Automation systems benefit from 53162-53375 Bearing’s precise radial and thrust load handling, particularly in robotic arms and assembly lines. The steel cage adds extra strength, ensuring smooth operation in repetitive tasks.

Household appliances like washing machines and power tools also use 53162-53375 Bearing for its balanced performance. The standard radial clearance ensures quiet operation, making it ideal for consumer products.
