TS (Single Row Tapered Roller Bearings) (Imperial) 46176-46369

TS (Single Row Tapered Roller Bearings) (Imperial) 46176-46369

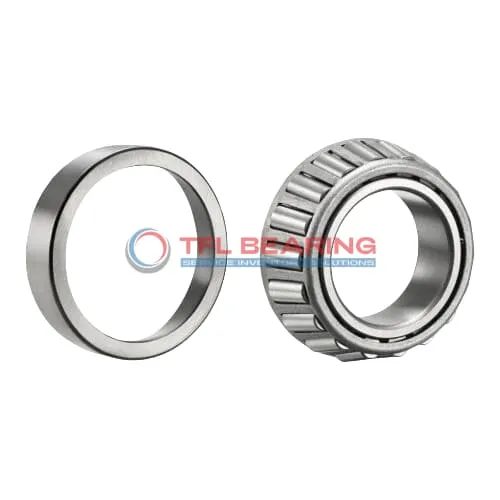

The 46176-46369 is a single-row tapered roller bearing with a 1.75″ bore and 3.6875″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 29100 lbf radially and 5190 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are common.

Weighing 2.3 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 46176-46369
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 3.6875" x 1.2501"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.6875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.25"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0313"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2501"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 2.13"
  • Cone Backface Backing Diameter 2.36"
  • Cup Frontface Backing Diameter 3.46"
  • Cup Backface Backing Diameter 3.19"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.06"
  • Effective Center Location -0.31"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 46176
  • Cup Part Number 46369
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 46000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 29100 lbf
  • Static Radial Load 35500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 7540 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5190 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.3 lb

Features

Performance Features of 46176-46369 Bearing

46176-46369 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 29,100 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and enhancing durability.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

46176-46369 Bearing requires lubrication, ensuring smooth operation and extended service life.
Its standard radial clearance options provide flexibility for different installation needs.

Application

Industrial Uses of 46176-46369 Bearing
46176-46369 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

In automotive applications, 46176-46369 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a convenient choice for North American vehicle models.

For industrial conveyor systems, 46176-46369 Bearing’s open design allows for easy lubrication, extending service life in high-use environments. The steel cage adds extra strength, making it suitable for continuous operation.

Where Is 46176-46369 Bearing Used?
You’ll often find 46176-46369 Bearing in mining equipment, where its ability to handle radial and thrust loads is crucial. The standard radial clearance ensures smooth operation even under heavy stress.

In manufacturing plants, 46176-46369 Bearing supports machinery like presses and gearboxes, thanks to its robust design. The ABEC-1 rating provides a good balance of precision and affordability for industrial needs.

Built for Heavy-Duty Use: 46176-46369 Bearing
46176-46369 Bearing excels in applications like forklifts and cranes, where strength and reliability are key. Its tapered rollers distribute loads evenly, reducing wear over time.

For railway applications, 46176-46369 Bearing’s temperature range and dynamic load capacity make it a dependable choice. The steel cage and chrome steel components ensure long-term performance in demanding conditions.

Automotive vs Aerospace: Applications of 46176-46369 Bearing
In automotive systems, 46176-46369 Bearing is ideal for drivetrain components, offering a balance of strength and precision. Its imperial measurements align well with standard vehicle designs.

For aerospace ground equipment, 46176-46369 Bearing provides reliable performance in load-handling tools. While not for flight use, it’s a solid pick for maintenance and support machinery.
