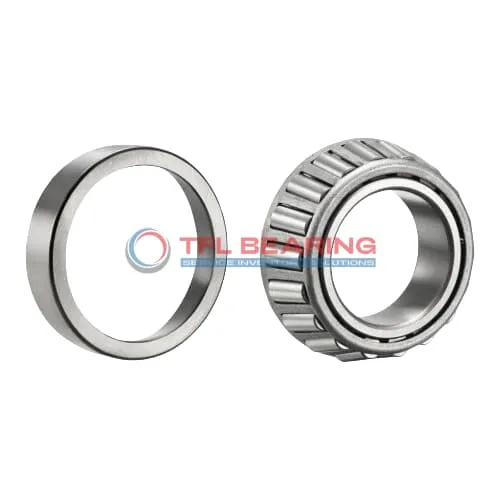

TS (Single Row Tapered Roller Bearings) (Imperial) 460-453E

TS (Single Row Tapered Roller Bearings) (Imperial) 460-453E

The 460-453E is a single-row tapered roller bearing with a 1.75″ bore and 4.125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 36100 lbf radially and 5380 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 2.9 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse environments. The standard radial clearance ensures easy installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 460-453E
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 4.125" x 1.2814"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1542"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2814"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.13"
  • Cone Backface Backing Diameter 2.36"
  • Cup Frontface Backing Diameter 3.90"
  • Cup Backface Backing Diameter 3.66"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.28"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 460
  • Cup Part Number 453E
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 455
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 36100 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9370 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5380 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.9 lb

Features

How Is 460-453E Bearing Engineered for Reliability?

460-453E Bearing features chrome steel rings and rollers, providing strong resistance to combined loads.
Its dynamic radial load capacity reaches 36,100 lbf, ensuring reliable performance in demanding applications.
The steel cage maintains roller alignment, reducing wear and extending service life.
With a temperature range of -30° to 110°C, it performs well under various conditions.

What Makes 460-453E Bearing Suitable for High-Temperature Applications?

460-453E Bearing withstands temperatures up to 110°C, maintaining performance in challenging environments.
The chrome steel construction ensures durability and resistance to thermal expansion.
Its standard radial clearance allows for smooth operation even under thermal stress.
This makes it a reliable choice for industrial applications with high-temperature demands.

Built for Durability: 460-453E Bearing

460-453E Bearing is crafted with high-quality chrome steel for long-lasting performance.
The tapered roller design efficiently handles both radial and thrust loads.
Its robust construction ensures reliability in heavy-duty applications.
With a static radial load capacity of 37,200 lbf, it offers dependable strength.

Steel vs Ceramic Bearings: Strengths of 460-453E Bearing

460-453E Bearing uses chrome steel for its rollers and rings, balancing cost and performance.
This material choice provides excellent wear resistance and load capacity.
The steel cage further enhances durability and alignment under stress.
It’s a practical solution for applications requiring reliable, long-term performance.

Application

Industrial Uses of 460-453E Bearing
460-453E Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

In automotive applications, 460-453E Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. Its inch sizing makes it a preferred choice for American and British vehicle models.

For industrial conveyor systems, 460-453E Bearing’s open design allows easy lubrication, extending service life in high-load scenarios. The steel cage adds extra strength, making it suitable for continuous operation.

Where Is 460-453E Bearing Used?
460-453E Bearing is often found in mining equipment, where its robust design withstands harsh environments. The tapered rollers distribute loads evenly, reducing wear over time.

In power transmission systems, 460-453E Bearing supports shafts and gears, ensuring smooth rotation. Its ABEC-1 rating balances precision and cost-effectiveness for general industrial use.

Built for Heavy-Duty Use: 460-453E Bearing
460-453E Bearing excels in applications like forklifts and cranes, where its high dynamic load capacity is essential. The standard radial clearance offers flexibility for various installation needs.

For agricultural machinery, 460-453E Bearing’s resistance to shock loads makes it ideal for tractors and harvesters. The steel cage and chrome steel rollers enhance longevity in dusty conditions.

Automotive vs Aerospace: Applications of 460-453E Bearing
In automotive systems, 460-453E Bearing is trusted for wheel and axle assemblies, thanks to its combined load capability. The inch measurements ensure compatibility with many classic car models.

For aerospace ground equipment, 460-453E Bearing provides reliable performance in maintenance tools and loading systems. Its temperature range suits both indoor and outdoor use.
