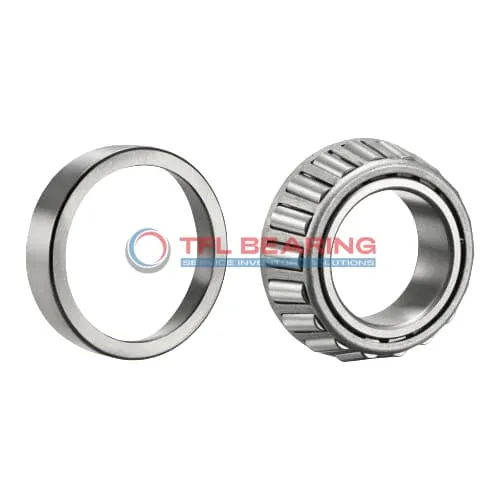

TS (Single Row Tapered Roller Bearings) (Imperial) 460-453A

TS (Single Row Tapered Roller Bearings) (Imperial) 460-453A

The 460-453A is a single-row tapered roller bearing with a 1.75″ bore and 4.25″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 36100 lbf radially and 5380 lbf in thrust, making it a versatile choice.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for heavy-duty applications like truck axles or industrial gearboxes where combined loads are common.

Weighing 2.9 lb, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it meets essential safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 460-453A
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 4.25" x 1.0938"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1542"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0938"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.13"
  • Cone Backface Backing Diameter 2.36"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.82"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.28"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 460
  • Cup Part Number 453A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 455
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 36100 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9370 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5380 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.9 lb

Features

Performance Features of 460-453A Bearing

460-453A Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 36,100 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a standard radial clearance, it provides reliable performance in various conditions.

460-453A Bearing operates efficiently within a temperature range of -30° to 110°C.
Its tapered roller design handles both radial and thrust loads with ease.

The open seal type allows for easy lubrication, ensuring smooth operation.
Weighing just 2.9 lb, it balances durability and practicality for industrial use.

Application

Industrial Uses of 460-453A Bearing
460-453A Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is 460-453A Bearing Used?
You’ll often find 460-453A Bearing in automotive drivetrains, particularly in wheel hubs and differentials, thanks to its reliable performance under radial and thrust loads. Its inch sizing makes it a good fit for American-made vehicles.

Built for Heavy-Duty Use: 460-453A Bearing
460-453A Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it suitable for high-load applications.

Automotive vs Aerospace: Applications of 460-453A Bearing
In automotive settings, 460-453A Bearing supports axle systems, while in aerospace, it’s used in auxiliary gearboxes. Its ABEC-1 rating ensures consistent performance across different industries.

Perfect Fit for Automation: 460-453A Bearing
460-453A Bearing works well in automated conveyor systems, where its tapered rollers manage both radial and axial forces smoothly. The standard radial clearance option provides flexibility for various setups.
