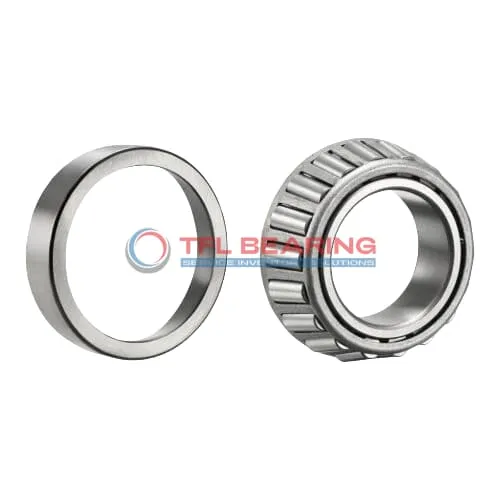

TS (Single Row Tapered Roller Bearings) (Imperial) 460-452

TS (Single Row Tapered Roller Bearings) (Imperial) 460-452

The 460-452 is a single-row tapered roller bearing with a 1.75″ bore and 4.25″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 36100 lbf radially and 5380 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 3.2 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

The standard radial clearance ensures easy installation, with options for C3, C4, or C5 available. Its ABEC-1 rating guarantees consistent performance in demanding conditions.

Perfect for industrial equipment or vehicle axles, where durability and load capacity are key. The tapered roller design provides smooth rotation under heavy loads.

Maintenance is straightforward, thanks to its open structure. The chrome steel rollers enhance longevity, even in tough environments.

Suitable for applications requiring precise alignment, such as gearboxes or conveyor systems. Its effective center location ensures stable operation under varying loads.

The bearing’s dimensions and tolerances are designed for easy integration into existing setups. Its robust construction makes it a dependable choice for long-term use.

With a dynamic radial rating of 9370 lbf for 90 million revolutions, it offers reliable performance over time. The tapered design helps distribute loads evenly, reducing wear.

Ideal for use in agricultural machinery or construction equipment, where reliability is crucial. Its steel cage provides added strength under heavy loads.

The bearing’s temperature range makes it suitable for diverse environments. Its compliance with international standards ensures quality and safety.

A practical choice for applications needing a balance of radial and thrust load capacity. The open seal type allows for easy inspection and maintenance.

The 460-452 is a solid option for replacements or new installations. Its tapered rollers ensure smooth operation, even under stress.

Perfect for industrial fans or pumps, where consistent performance is essential. The bearing’s design minimizes friction, enhancing efficiency.

Its compatibility with Timken parts simplifies sourcing. The chrome steel construction resists wear, extending service life.

Suitable for high-load scenarios, such as mining equipment or heavy transport. The bearing’s tolerances ensure precise fit and function.

With a static radial load capacity of 37200 lbf, it handles demanding conditions with ease. The open seal type facilitates regular greasing.

Ideal for applications requiring durability and load-bearing strength. The tapered roller design ensures reliable performance in varied settings.

The 460-452 is a dependable choice for machinery needing robust bearing solutions. Its construction and materials make it a long-lasting option.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 460-452
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 4.25" x 1.2819"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1542"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.063"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2819"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.13"
  • Cone Backface Backing Diameter 2.36"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.90"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.28"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 460
  • Cup Part Number 452
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 455
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 36100 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9370 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5380 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.2 lb

Features

Performance Features of 460-452 Bearing

460-452 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 36,100 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is 460-452 Bearing Engineered for Reliability?

460-452 Bearing features a tapered roller design, optimised for handling both radial and thrust loads.
The chrome steel construction enhances durability, even under high-stress conditions.
Precision tolerances ensure smooth operation, reducing wear over time.
Its standard radial clearance allows for flexibility in different applications.

Built for Durability: 460-452 Bearing

460-452 Bearing’s single-row construction provides stability and strength in demanding settings.
The open seal design simplifies lubrication, ensuring consistent performance.
With a static radial load capacity of 37,200 lbf, it handles heavy loads with ease.
Its ABEC-1 rating confirms consistent precision and quality.

Application

Industrial Uses of 460-452 Bearing
460-452 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

What Makes 460-452 Bearing a Preferred Choice?
In automotive applications, 460-452 Bearing fits well in wheel hubs and differential systems, thanks to its precise imperial sizing. The open design allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: 460-452 Bearing
For conveyor systems, 460-452 Bearing provides reliable performance under continuous radial and thrust loads. Its steel cage adds extra strength, making it suitable for high-demand industrial settings.

Automotive vs Aerospace: Applications of 460-452 Bearing
While 460-452 Bearing is popular in truck axles and heavy vehicles, its precision also suits some aerospace components. The ABEC-1 rating ensures consistent performance in both sectors.

Essential Roles of 460-452 Bearing
In mining equipment, 460-452 Bearing stands up to harsh environments with its robust chrome steel rollers. The standard radial clearance offers flexibility for various load requirements.
