TS (Single Row Tapered Roller Bearings) (Imperial) 44162-44354

TS (Single Row Tapered Roller Bearings) (Imperial) 44162-44354

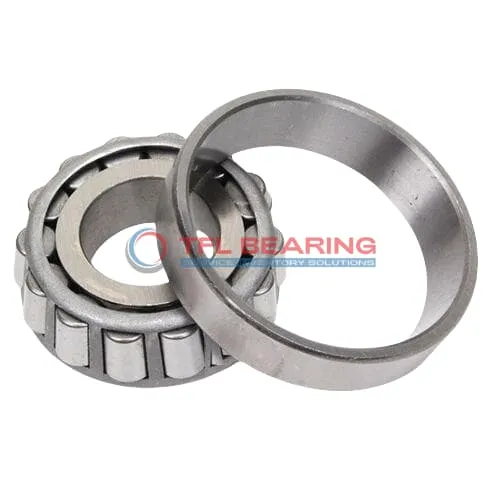

The 44162-44354 is a single-row tapered roller bearing with a 1.625″ bore and 3.543″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 22400 lbf radially and 7770 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 1.5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 44162-44354
  • Brand TFL
  • Interchangeable Timken
  • Size 1.625" x 3.543" x 1"
  • Bore Dia 1.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.543"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.933"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.09"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 2"
  • Cone Backface Backing Diameter 2.24"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 2.95"
  • Cage Cone Frontface Clearance 0.15"
  • Cage Cone Backface Clearance 0.12"
  • Effective Center Location 0.09"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 44162
  • Cup Part Number 44354
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 44000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22400 lbf
  • Static Radial Load 19900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5810 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7770 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.500 lb

Features

Performance Features of 44162-44354 Bearing

44162-44354 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,400 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is 44162-44354 Bearing Engineered for Reliability?

44162-44354 Bearing features a single-row tapered roller design, optimised for combined load applications.
The chrome steel construction enhances durability, while the standard radial clearance allows for smooth operation.
Its dynamic thrust rating of 7,770 lbf ensures consistent performance under heavy loads.
The open design simplifies lubrication, maintaining efficiency over time.

Built for Durability: 44162-44354 Bearing

44162-44354 Bearing’s chrome steel components resist wear, even in high-load scenarios.
The tapered roller design distributes loads evenly, reducing stress on individual components.
With a static radial load capacity of 19,900 lbf, it handles demanding industrial applications.
The steel cage ensures stability, minimising maintenance needs.

Steel vs Ceramic Bearings: Strengths of 44162-44354 Bearing

44162-44354 Bearing uses chrome steel for both rollers and rings, balancing cost and performance.
Its dynamic radial rating of 5,810 lbf at 90 million revolutions highlights long-term reliability.
The tapered roller design excels in combined load situations, unlike standard ball bearings.
With an ABEC-1 rating, it provides precision for general industrial use.

Application

Industrial Uses of 44162-44354 Bearing
This bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 44162-44354 Bearing Used?
You’ll often find it in automotive applications, particularly in wheel hubs and transmissions, thanks to its ability to manage both radial and thrust loads. The inch sizing makes it a good fit for American-made vehicles.

Built for Heavy-Duty Use: 44162-44354 Bearing
In industrial settings, this bearing excels in conveyor systems and gearboxes, where its open design allows for easy lubrication. The steel cage adds extra strength for long-lasting performance.

Automotive vs Aerospace: Applications of 44162-44354 Bearing
While it’s popular in car suspensions and drivetrains, this bearing also suits aerospace components needing reliable load support. Its temperature range works well for both ground and flight conditions.

Perfect Fit for Automation: 44162-44354 Bearing
In robotic arms and automated assembly lines, this bearing offers smooth movement under varying loads. The standard radial clearance ensures consistent operation without frequent adjustments.
