TS (Single Row Tapered Roller Bearings) (Imperial) 44158-44348

TS (Single Row Tapered Roller Bearings) (Imperial) 44158-44348

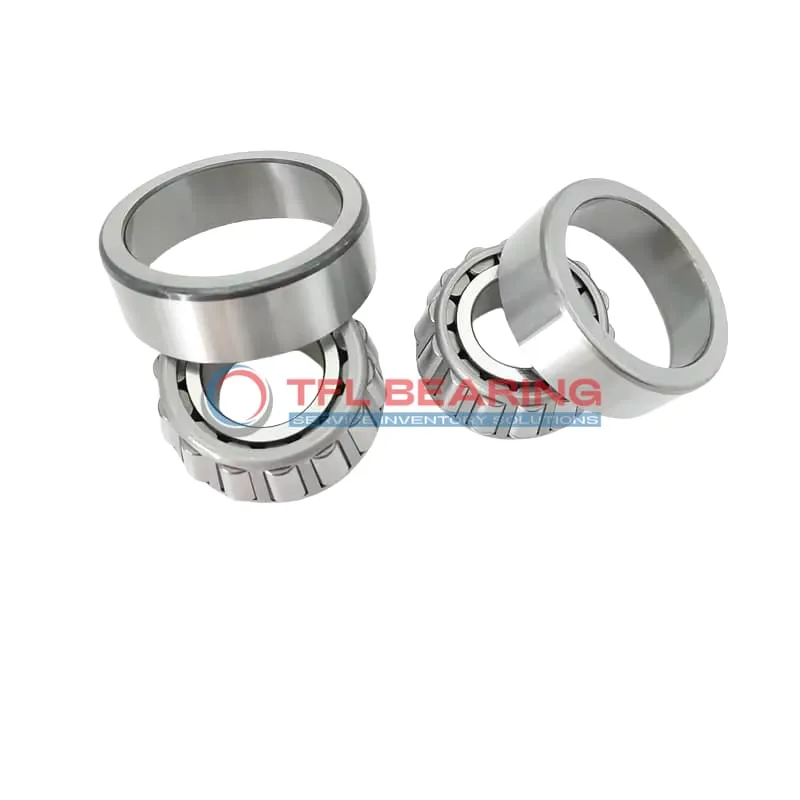

The 44158-44348 is a single-row tapered roller bearing with a 1.5625″ bore and 3.4843″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 22400 lbf radially and 7770 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 1.5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 44158-44348
  • Brand TFL
  • Interchangeable Timken
  • Size 1.5625" x 3.4843" x 1"
  • Bore Dia 1.5625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.4843"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.933"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 2"
  • Cone Backface Backing Diameter 2.28"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 2.95"
  • Cage Cone Frontface Clearance 0.15"
  • Cage Cone Backface Clearance 0.12"
  • Effective Center Location 0.09"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 44158
  • Cup Part Number 44348
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 44000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22400 lbf
  • Static Radial Load 19900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5810 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7770 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.500 lb

Features

How Is 44158-44348 Bearing Engineered for Reliability?

44158-44348 Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 22,400 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Application

Industrial Uses of 44158-44348 Bearing
44158-44348 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

In automotive applications, 44158-44348 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it a straightforward choice for vehicles using imperial measurements.

For industrial conveyor systems, 44158-44348 Bearing’s open design simplifies maintenance, while its standard radial clearance offers flexibility. The steel cage adds extra strength, making it suitable for high-load scenarios.

44158-44348 Bearing also works in mining equipment, where its robust build withstands harsh environments. The ABEC-1 rating ensures consistent performance without overcomplicating precision requirements.
