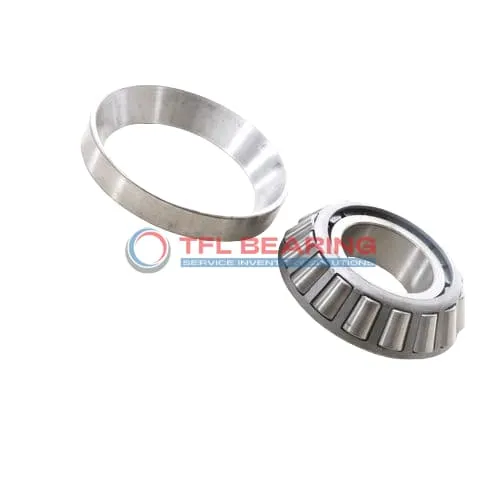

TS (Single Row Tapered Roller Bearings) (Imperial) 435-433

TS (Single Row Tapered Roller Bearings) (Imperial) 435-433

The 435-433 is a single-row tapered roller bearing with a 1.75″ bore and 3.4843″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 28500 lbf radially and 3600 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 2lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 435-433
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 3.4843" x 1.4065"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.4843"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1772"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.1875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4065"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.01"
  • Cone Backface Backing Diameter 2.05"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 3.03"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location -0.36"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 435
  • Cup Part Number 433
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 435
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 28500 lbf
  • Static Radial Load 32400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 7400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3600 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2 lb

Features

Why Choose 435-433 Bearing for Combined Loads?

435-433 Bearing is crafted with chrome steel rings and rollers, offering robust performance under combined radial and thrust loads.
Its dynamic radial load capacity reaches 28,500 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing maintenance needs.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

How Is 435-433 Bearing Engineered for Reliability?

435-433 Bearing features precise cone and cup dimensions, ensuring smooth operation and easy installation.
The chrome steel construction resists wear, extending the bearing’s service life in demanding environments.
Its standard radial clearance options (C3/C4/C5) allow for flexibility in different applications.
With an ABEC-1 rating, it balances precision and cost-effectiveness for industrial use.

Built for Durability: 435-433 Bearing

435-433 Bearing’s single-row tapered roller design efficiently handles both radial and axial loads.
The steel cage maintains roller spacing, reducing friction and preventing premature wear.
Its static radial load capacity of 32,400 lbf ensures stability under heavy loads.
Operating within -30° to 110°C, it adapts to a wide range of industrial environments.

Steel vs Ceramic Bearings: Strengths of 435-433 Bearing

435-433 Bearing uses chrome steel for both rings and rollers, providing excellent strength and durability.
This material choice ensures reliable performance in high-load applications without the cost of ceramics.
The bearing’s tapered roller design distributes loads evenly, reducing stress concentrations.
With a dynamic thrust rating of 3,600 lbf, it excels in applications requiring combined load capacity.

Performance Features of 435-433 Bearing

435-433 Bearing’s precise tolerances ensure consistent performance and easy integration into existing systems.
The open seal design allows for easy lubrication, maintaining optimal operation over time.
Its effective center location of -0.36″ helps in proper alignment during installation.
Weighing just 2 lb, it offers a balance of strength and portability for various industrial uses.

Application

Industrial Uses of 435-433 Bearing
435-433 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 435-433 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a convenient choice for older or custom vehicle models.

For industrial conveyor systems, 435-433 Bearing’s open design allows for easy lubrication, extending its service life in continuous operation. The steel cage adds extra strength, making it suitable for high-load scenarios.

Where Is 435-433 Bearing Used?
You’ll often find 435-433 Bearing in mining equipment, where its robust design copes with harsh conditions. The tapered rollers distribute loads evenly, reducing wear over time.

In manufacturing plants, 435-433 Bearing supports machinery like presses and gearboxes, ensuring smooth operation. Its standard radial clearance offers flexibility for different installation needs.

Built for Heavy-Duty Use: 435-433 Bearing
435-433 Bearing excels in applications like forestry machinery, where its combined load capacity is essential. The chrome steel rollers and rings provide long-lasting performance.

For railway applications, 435-433 Bearing’s temperature tolerance makes it reliable in varying climates. The ABEC-1 rating ensures consistent precision for smooth rolling motion.

Automotive vs Aerospace: Applications of 435-433 Bearing
In automotive systems, 435-433 Bearing is ideal for drivetrain components, balancing radial and thrust loads effectively. Its imperial measurements suit many classic car restorations.

For aerospace ground equipment, 435-433 Bearing handles heavy loads in maintenance tools and loading systems. The steel cage and chrome steel construction meet rigorous industry standards.
