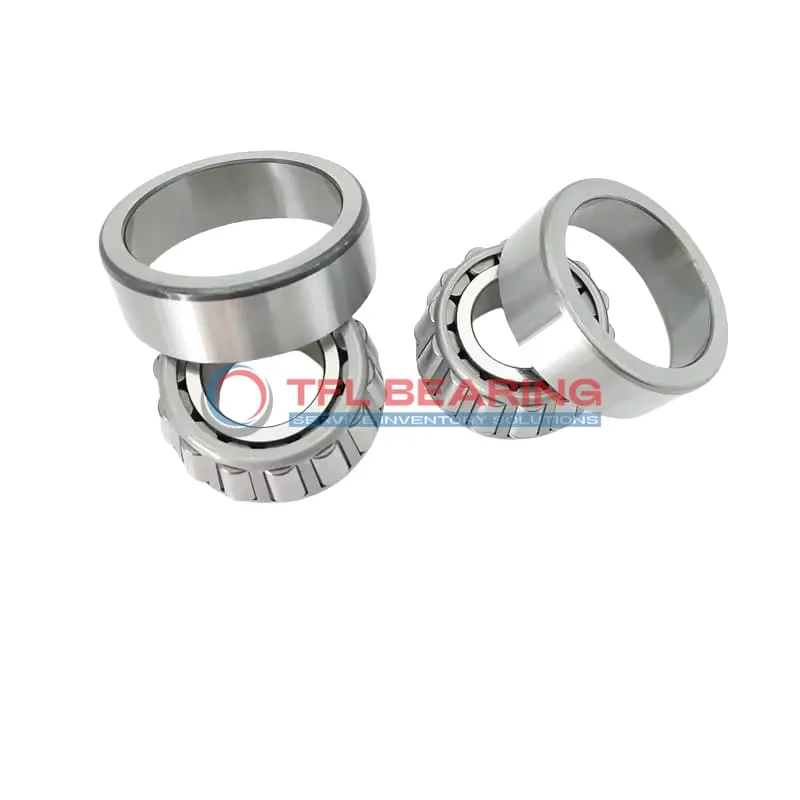

TS (Single Row Tapered Roller Bearings) (Imperial) 422-414

TS (Single Row Tapered Roller Bearings) (Imperial) 422-414

The 422-414 is a single-row tapered roller bearing with a 1.5625″ bore and 3.4843″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 26000 lbf radially and 3040 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery, automotive systems, or industrial equipment where combined loads are common.

Weighing 1.8 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 422-414
  • Brand TFL
  • Interchangeable Timken
  • Size 1.5625" x 3.4843" x 1.0625"
  • Bore Dia 1.5625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.4843"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.145"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0625"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.79"
  • Cone Backface Backing Diameter 2.05"
  • Cup Frontface Backing Diameter 3.18"
  • Cup Backface Backing Diameter 3.03"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.38"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 422
  • Cup Part Number 414
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 415
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 26000 lbf
  • Static Radial Load 28000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6740 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3040 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.8 lb

Features

Why Choose 422-414 Bearing for Combined Loads?

422-414 Bearing is crafted with chrome steel rings and rollers, offering robust performance under combined radial and thrust loads.
Its dynamic radial load capacity reaches 26,000 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing friction.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

Application

Industrial Uses of 422-414 Bearing
The 422-414 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 422-414 Bearing Used?
You’ll often find 422-414 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for older or imperial-based vehicle models.

Built for Heavy-Duty Use: 422-414 Bearing
422-414 Bearing excels in industrial settings like conveyor systems and gearboxes, where its open design allows for easy lubrication. The steel cage adds extra strength, making it suitable for high-load scenarios.

Automotive vs Aerospace: Applications of 422-414 Bearing
In automotive systems, 422-414 Bearing supports wheel assemblies, while in aerospace, it’s used in auxiliary equipment. Its ABEC-1 rating ensures consistent performance across different industries.

Key Fields for 422-414 Bearing
422-414 Bearing is ideal for mining equipment, where its dynamic radial load capacity handles rough conditions. The standard radial clearance also makes it versatile for various industrial needs.
