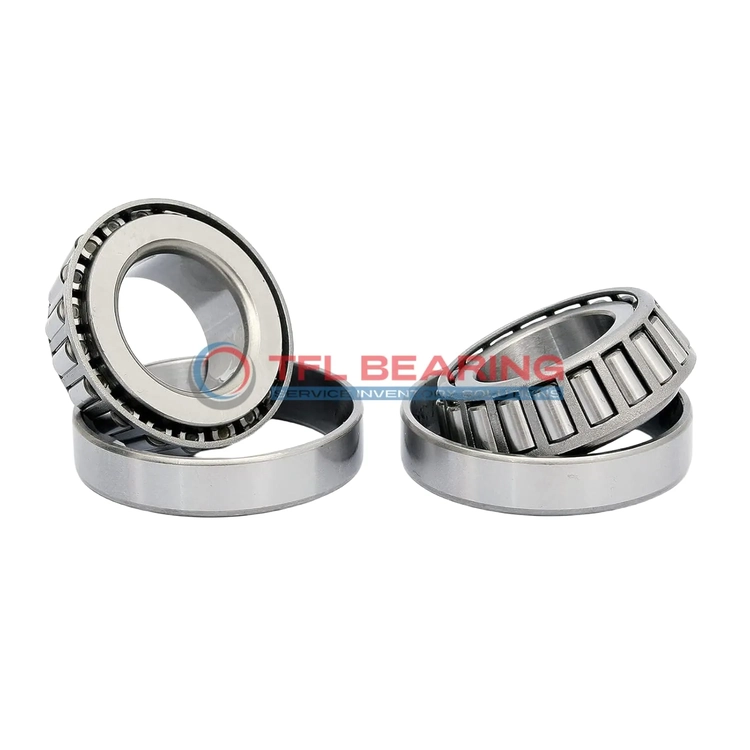

TS (Single Row Tapered Roller Bearings) (Imperial) 416-414X

TS (Single Row Tapered Roller Bearings) (Imperial) 416-414X

The 416-414X is a single-row tapered roller bearing with a 1.1811″ bore and 3.5″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 26000 lbf radial and 3040 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for use in heavy machinery or automotive systems where combined loads are common.

Weighing 2.1 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 416-414X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.1811" x 3.5" x 1.0626"
  • Bore Dia 1.1811"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.145"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0626"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.52"
  • Cone Backface Backing Diameter 1.54"
  • Cup Frontface Backing Diameter 3.18"
  • Cup Backface Backing Diameter 3.07"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.38"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 416
  • Cup Part Number 414X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 415
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 26000 lbf
  • Static Radial Load 28000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6740 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3040 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.1 lb

Features

How Is 416-414X Bearing Engineered for Reliability?

416-414X Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 26,000 lbf, making it suitable for heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and wear over time.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

What Makes 416-414X Bearing Suitable for High-Temperature Applications?

416-414X Bearing operates efficiently in temperatures ranging from -30° to 110°C.
The chrome steel construction resists thermal deformation, maintaining performance under stress.
Its standard radial clearance options allow for flexibility in different environments.
The open design ensures proper lubrication, further enhancing heat resistance.

Built for Durability: 416-414X Bearing

416-414X Bearing is constructed with high-quality chrome steel for both rings and rollers.
This material choice provides excellent resistance to wear and fatigue.
The single-row tapered design handles combined loads effectively, ensuring long service life.
With a static radial load capacity of 28,000 lbf, it excels in demanding industrial applications.

Application

Industrial Uses of 416-414X Bearing
416-414X Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effortlessly. The chrome steel construction ensures durability even in tough working conditions.

Where Is 416-414X Bearing Used?
You’ll often find 416-414X Bearing in automotive axles and wheel hubs, thanks to its ability to manage both radial and thrust loads. Its inch sizing makes it a go-to choice for American-made vehicles and machinery.

Built for Heavy-Duty Use: 416-414X Bearing
416-414X Bearing excels in industrial fans and conveyor systems, where its open design allows for easy lubrication. The steel cage adds extra strength, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 416-414X Bearing
In automotive applications, 416-414X Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems where precision and reliability are key. Its ABEC-1 rating ensures consistent performance.

Perfect Fit for Automation: 416-414X Bearing
416-414X Bearing is ideal for robotic arms and automated assembly lines, where its tapered rollers provide smooth motion. The standard radial clearance offers flexibility for various precision needs.
