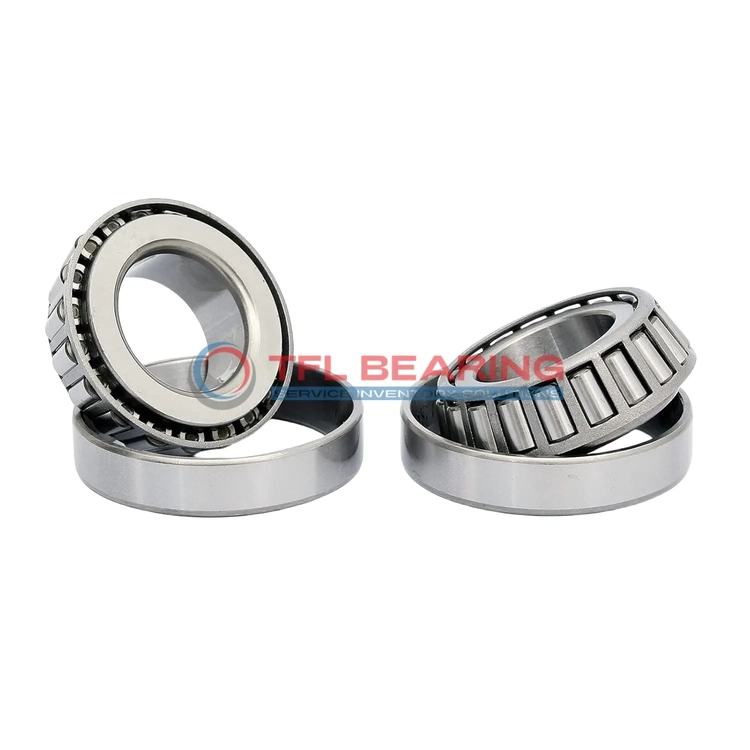

TS (Single Row Tapered Roller Bearings) (Imperial) 416-414A

TS (Single Row Tapered Roller Bearings) (Imperial) 416-414A

The 416-414A is a single-row tapered roller bearing with a 1.1811″ bore and 3.4843″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 26000 lbf radially and 3040 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for machinery like gearboxes or axles where combined loads are common.

Weighing 2 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 416-414A
  • Brand TFL
  • Interchangeable Timken
  • Size 1.1811" x 3.4843" x 1.0626"
  • Bore Dia 1.1811"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.4843"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.145"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0626"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 1.52"
  • Cone Backface Backing Diameter 1.54"
  • Cup Frontface Backing Diameter 3.18"
  • Cup Backface Backing Diameter 2.99"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.38"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 416
  • Cup Part Number 414A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 415
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 26000 lbf
  • Static Radial Load 28000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6740 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3040 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2 lb

Features

How Does 416-414A Bearing Handle Combined Loads?

416-414A Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 26,000 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

Application

Industrial Uses of 416-414A Bearing
The 416-414A Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 416-414A Bearing Used?
You’ll often find 416-414A Bearing in automotive applications, particularly in wheel hubs and differential systems, where its high radial load capacity is essential. The inch sizing makes it a good fit for American and British vehicle models.

Built for Heavy-Duty Use: 416-414A Bearing
In industrial settings, 416-414A Bearing supports conveyor systems and gearboxes, thanks to its robust steel cage and open design. The standard radial clearance allows for smooth operation under varying loads.

Automotive vs Aerospace: Applications of 416-414A Bearing
While 416-414A Bearing excels in automotive wheel assemblies, it’s also suitable for aerospace landing gear components where reliability is key. The ABEC-1 rating ensures consistent performance in both fields.

Perfect Fit for Automation: 416-414A Bearing
For automated machinery, 416-414A Bearing offers precise movement in robotic arms and assembly lines. Its tapered rollers reduce friction, making it ideal for high-precision tasks.
