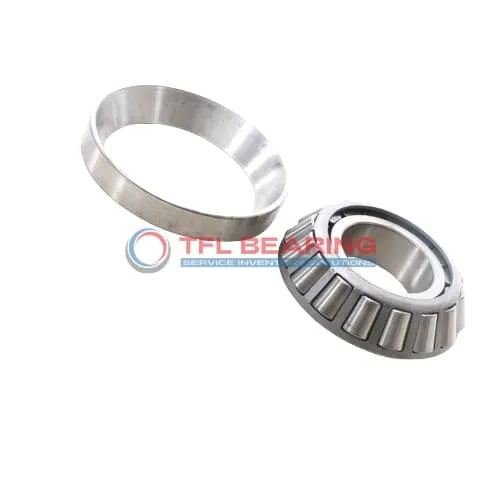

TS (Single Row Tapered Roller Bearings) (Imperial) 3783-3735

TS (Single Row Tapered Roller Bearings) (Imperial) 3783-3735

The 3783-3735 is a single-row tapered roller bearing with a 1.75″ bore and 3.9386″ outer diameter, crafted from robust chrome steel. It manages combined loads up to 27500 lbf radially and 4120 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery, gearboxes, or industrial equipment where combined loads are common.

Weighing 2.5 lb, it balances strength and manageability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 3783-3735
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 3.9386" x 1.1851"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.9386"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.193"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1851"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.05"
  • Cone Backface Backing Diameter 2.52"
  • Cup Frontface Backing Diameter 3.62"
  • Cup Backface Backing Diameter 3.35"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.06"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 3783
  • Cup Part Number 3735
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 3700
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 27500 lbf
  • Static Radial Load 34300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 7120 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 4120 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.5 lb

Features

Performance Features of 3783-3735 Bearing

3783-3735 Bearing is constructed with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 27,500 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

The standard radial clearance option provides flexibility for different installation needs.
Its ABEC-1 rating ensures consistent performance for general industrial use.

Application

Common Applications of 3783-3735 Bearing
In industrial settings, 3783-3735 Bearing is often used in heavy machinery like conveyor systems and gearboxes, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 3783-3735 Bearing Used?
You’ll find 3783-3735 Bearing in automotive applications, particularly in wheel hubs and differentials, where its robust design supports both radial and thrust loads. Its inch sizing makes it a fit for many American-made vehicles.

Built for Heavy-Duty Use: 3783-3735 Bearing
This bearing excels in construction equipment, such as bulldozers and cranes, thanks to its high dynamic load capacity. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 3783-3735 Bearing
While 3783-3735 Bearing is common in trucks and buses, it’s also suitable for aerospace ground support equipment. Its precision and reliability make it versatile across different industries.

Perfect Fit for Automation: 3783-3735 Bearing
In automated production lines, 3783-3735 Bearing ensures smooth operation of robotic arms and assembly systems. The steel cage adds stability, reducing maintenance needs over time.
