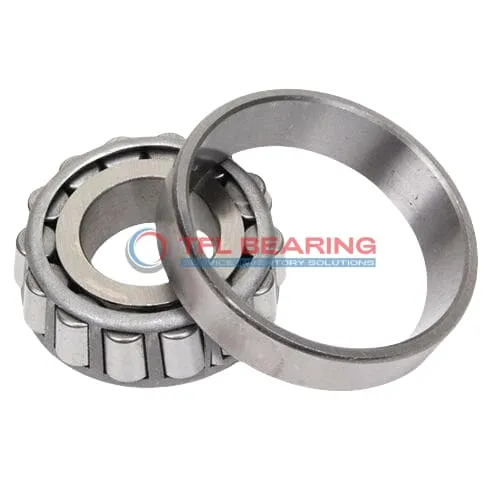

TS (Single Row Tapered Roller Bearings) (Imperial) 365A-362X

TS (Single Row Tapered Roller Bearings) (Imperial) 365A-362X

The 365A-362X is a single-row tapered roller bearing with a 1.625″ bore and 3.5433″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 22900 lbf radially and 3250 lbf thrust-wise, suitable for moderate-speed applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, wheel hubs, or industrial machinery where combined loads are present.

Weighing 1.6 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

The 365A-362X features a standard radial clearance and is rated ABEC-1, ensuring consistent performance. Its tapered roller design provides excellent load distribution and alignment capabilities.

Maintenance is straightforward thanks to its open seal type, allowing for regular lubrication. The bearing’s effective center location at -0.17″ helps with precise positioning in assemblies.

Suitable for applications requiring durability and reliability, such as automotive or heavy equipment. Its chrome steel construction ensures long service life even under demanding conditions.

With a dynamic radial rating of 5930 lbf at 90 million revolutions, it offers dependable performance over time. The cup and cone design simplifies installation and adjustment in various setups.

This bearing’s cone and cup widths are 0.875″ and 0.7874″ respectively, providing a compact yet sturdy build. The chrome steel rollers enhance strength and reduce wear during operation.

Its standard cup type and single-row construction make it easy to integrate into existing systems. The bearing’s temperature range ensures functionality in both cold and moderately hot environments.

Perfect for machinery that experiences both radial and thrust loads, like conveyors or pumps. The steel cage keeps rollers evenly spaced, promoting smooth rotation and reducing friction.

Weighing just 1.6 lb, it’s lightweight for its load capacity, easing handling and installation. Compliant with international standards, it’s a trustworthy choice for global applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 365A-362X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.625" x 3.5433" x 0.9843"
  • Bore Dia 1.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.5433"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.7874"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9843"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 1.91"
  • Cone Backface Backing Diameter 2.17"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 3.15"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 365A
  • Cup Part Number 362X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 365
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22900 lbf
  • Static Radial Load 21500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5930 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.6 lb

Features

Why Choose 365A-362X Bearing for Combined Loads?

365A-362X Bearing is designed with chrome steel rings and rollers, providing strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 22,900 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

How Is 365A-362X Bearing Engineered for Reliability?

365A-362X Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction enhances durability, while the standard radial clearance ensures smooth operation.
Its effective center location of -0.17″ improves load distribution, reducing wear.
Compliant with RoHS and REACH standards, it meets stringent environmental requirements.

Built for Durability: 365A-362X Bearing

365A-362X Bearing’s chrome steel rollers and rings provide excellent wear resistance in demanding conditions.
The steel cage maintains roller spacing, ensuring consistent performance under heavy loads.
With a static radial load capacity of 21,500 lbf, it offers reliable support in various applications.
Its ABEC-1 rating ensures precision and quality in manufacturing.

What Makes 365A-362X Bearing Suitable for High-Temperature Applications?

365A-362X Bearing operates efficiently in temperatures ranging from -30° to 110°C.
The chrome steel materials resist thermal expansion, maintaining performance in challenging environments.
Its dynamic thrust rating of 3,250 lbf ensures stability under combined loads.
The open design allows for easy lubrication, further enhancing its high-temperature capabilities.

Application

Industrial Uses of 365A-362X Bearing
365A-362X Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 365A-362X Bearing Used?
You’ll often find 365A-362X Bearing in automotive axles and wheel hubs, thanks to its ability to manage both radial and thrust loads. Its inch sizing makes it a fit for many American-made vehicles.

Built for Heavy-Duty Use: 365A-362X Bearing
365A-362X Bearing excels in industrial fans and conveyor systems, where its open design allows for easy lubrication. The steel cage adds extra strength, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 365A-362X Bearing
In automotive settings, 365A-362X Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems. Its temperature range of -30° to 110°C ensures performance in varied conditions.

Perfect Fit for Automation: 365A-362X Bearing
365A-362X Bearing works well in automated assembly lines, where precision and load capacity are key. The ABEC-1 rating provides a good balance of performance and cost for these applications.
